Your fridge is cycling, camp lights are on, and the auxiliary battery has been working hard all weekend. Then you turn the key for the trip home. Whether that battery receives a proper recharge or merely gets some voltage pushed into it comes down to the DC-DC charger versus isolator setup behind the scenes.
For a basic dual-battery system in an older ute, a battery isolator can still be a sensible piece of gear. For a 4WD, caravan, motorhome or work vehicle with long cable runs, lithium batteries, solar input or serious 12V loads, a DC-DC charger is usually the better-engineered answer. The right choice is not about fitting the most gear. It is about matching the charging method to the vehicle, battery chemistry and the way you actually use the system.
What an isolator setup actually does
An isolator connects the cranking battery and auxiliary battery while the engine is running, then separates them when the engine stops. Its first job is protection: your fridge, compressor, camp lights or accessory panel cannot flatten the battery needed to start the vehicle.
A voltage-sensitive relay is the common version. Once it detects a suitable charging voltage from the alternator, it closes and allows current to flow to the second battery. When voltage falls after shutdown, it opens again.
It is simple, effective and has fewer moving parts in the system. In a classic Holden, LandCruiser, old-school truck or restored muscle car with a conventional alternator, an isolator can charge an auxiliary lead-acid battery well enough when the batteries are close together and the cable run is short.
The limitation is that an isolator does not control the charge. It passes through whatever voltage is available at the starting battery. If the alternator voltage drops, the auxiliary battery sees a lower voltage again after cable losses. That can leave a battery only partly charged, particularly after short drives.
How a DC-DC charger changes the equation
A DC-DC charger takes the incoming voltage from the vehicle and converts it into a controlled multi-stage charge for the auxiliary battery. Rather than relying on alternator voltage alone, it boosts or regulates the supply to deliver the voltage and current profile the battery requires.
That matters with modern smart alternators, which may reduce their output voltage once the cranking battery is topped up. An isolator can interpret that lower voltage as the engine no longer charging and disconnect, or it may remain connected while providing too little voltage to properly charge the second battery. A quality DC-DC charger is designed to keep charging within its operating input range.
It also matters on long runs. A battery in the rear of a wagon, canopy, camper trailer or caravan may be several metres from the alternator. Even properly sized cable has voltage drop. A DC-DC charger installed near the auxiliary battery can compensate for that drop and provide a more useful charge at the battery terminals.
For lithium, charge control is even more relevant. Lithium batteries need a charging profile and voltage that suit their internal battery management system. A charger with the correct lithium setting gives a far more predictable result than simply linking the two batteries through a relay.

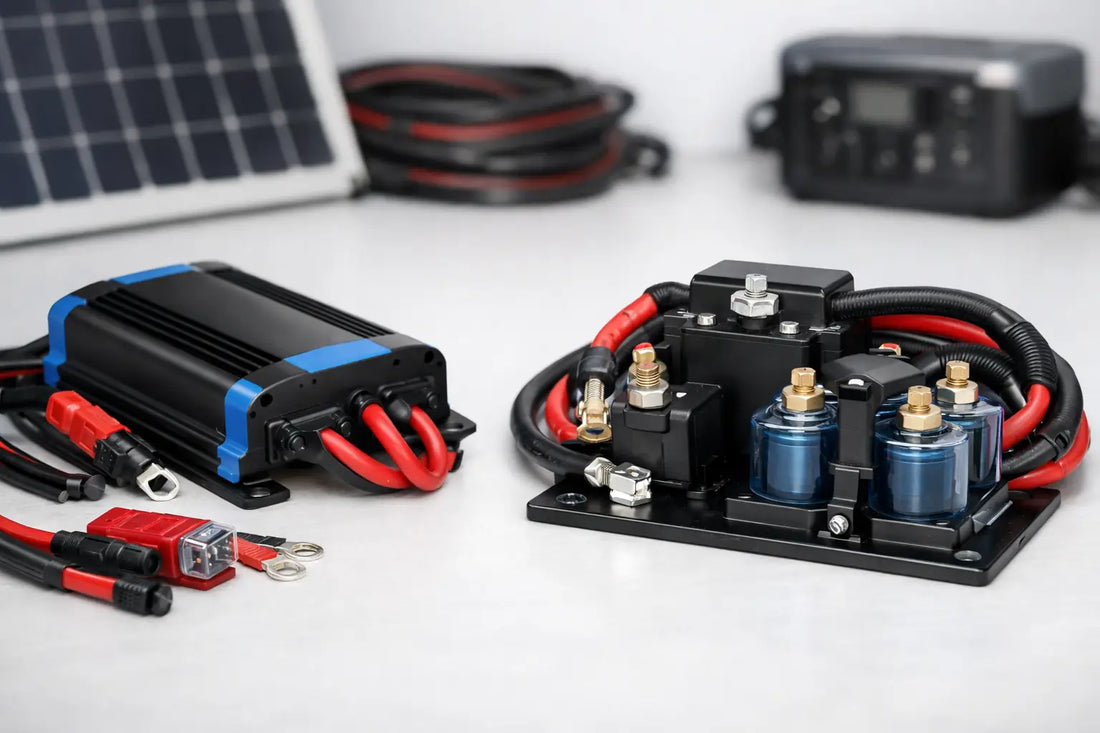

DC-DC charger versus isolator setup: the practical differences
The biggest difference is control. An isolator protects the starter battery and transfers available alternator power. A DC-DC charger protects the starter battery while actively managing the auxiliary battery charge.
An isolator generally has less cost, less wiring complexity and very low self-consumption. It can suit a vehicle that runs a small auxiliary battery for occasional lighting or a modest fridge, especially where the alternator is conventional and the battery sits under the bonnet or close to it.
A DC-DC charger takes more planning. You must select an output rating that suits the alternator and cable system, use correctly sized cable, and install proper fuses or circuit breakers at the battery end of each positive feed. It will also have a maximum input current, so a larger charger is not automatically better. If the alternator has limited spare capacity, fitting a high-output charger can create problems rather than improve the system.
The payoff is a controlled charge, better performance with long cable runs, compatibility with battery chemistry settings and, on many units, a regulated solar input. For an off-grid camper or touring 4WD, combining alternator and solar charging into one auxiliary-battery system makes the DC-DC approach easier to manage.
When an isolator is still the right call
Do not write off the isolator just because DC-DC chargers are now common. There are situations where it remains a clean, practical choice.
If you have a traditional vehicle with a fixed-voltage alternator, a short heavy cable run and an auxiliary AGM or flooded lead-acid battery, an isolator can work well. Think of a classic ute with a battery mounted close to the engine bay, used for a few work lights, a small compressor or a low-draw accessory circuit. The engine runs often and for long enough to put meaningful charge back into the battery.
An isolator also makes sense where fast bulk charging is not the priority. If the auxiliary battery is lightly used and you are not expecting it to support a fridge, inverter, electric air conditioning or a fully loaded camp setup for extended periods, simplicity has real value.
The key is being honest about the use case. A relay cannot make up for a battery that is too small, cabling that is too thin or a vehicle that only does ten-minute runs between jobs.
When a DC-DC charger is worth fitting
A DC-DC charger earns its place when the auxiliary battery is a proper power system, not just a backup battery. It is the stronger option for most touring builds, canopy installations, caravans and motorhomes, particularly where the battery is mounted at the rear or in a trailer.
Choose it when you have a smart alternator, a lithium auxiliary battery, a long cable run or solar panels to integrate. It is also the better fit for a system supplying sustained loads such as refrigeration, communications gear, pumps, lighting, inverters and electric A/C support equipment. These loads do not just need battery capacity. They need the battery returned to full charge reliably between stops.
For 24V vehicles, the same principle applies, but every component must match the system voltage and the battery arrangement. Do not assume a 12V charger, fuse holder or control panel can be adapted safely. Build the system around the correct 24V-rated equipment from the start.
Size the charging system around the whole vehicle
A common DIY mistake is selecting a charger only by its advertised amp rating. Start with the battery manufacturer's recommended charge current and chemistry settings. Then look at alternator capacity, normal vehicle electrical demand, cable length, cable size and how often the vehicle is driven.
A 40A charger, for example, needs an electrical system that can supply it without starving the vehicle's own requirements. Headlights, air conditioning blowers, driving lights, engine management and other factory loads are all drawing from the same alternator. On an older vehicle with a smaller alternator, a lower-output charger may be the more reliable setup.
Cable protection is non-negotiable. Fit a fuse or circuit breaker close to the source battery on the positive feed, and protect the cable at the auxiliary battery end where required by the design. Route cable away from exhaust heat, sharp edges and moving parts. Use properly crimped lugs, secure mounts and clean earth points. A high-quality charger cannot overcome poor terminations.
Build for the way you travel, work and camp
The best dual-battery system is the one that recovers properly after your normal use. If your Hilux, Prado or LandCruiser does long highway runs and carries a basic AGM battery close to the engine bay, an isolator may be all you need. If it tows a camper, runs a fridge overnight and has the auxiliary battery in the canopy, a DC-DC charger will usually deliver better battery health and more dependable run time.
Before ordering gear, write down your battery type, battery capacity, alternator type, cable distance, expected loads and typical drive time. That five-minute check prevents most mismatched systems. Tuck's Performance tests the gear in a live demo environment because a charging setup needs to work under load, not just look tidy on a product page.
Build the charging side properly first, and every accessory connected to the auxiliary battery has a far better chance of doing its job when you are parked a long way from the nearest power point.
