A good 4x4 electrical setup is not judged when it is parked in the shed. It is judged halfway up a rough track, after a hot day, with the fridge running, work lights on and a compressor needed now. The right diy 4x4 wiring accessories turn that moment into a non-event. The wrong gear creates voltage drop, blown fuses, loose terminals and faults that are painful to find once the interior and canopy are back together.
For a Hilux, LandCruiser, Prado, patrol-style tourer, work ute or custom camper, secondary power should be treated as a complete system. Every cable, fuse, switch, connector and mounting point has a job. Build it properly the first time and you get a clean, serviceable setup that is ready for touring, site work and weekends away.
Start With the Load, Not the Shopping Cart
The common mistake is choosing wiring accessories before working out what the system must run. A pair of driving lights might draw a modest load, while an air compressor can pull serious current at startup. A fridge, inverter, diesel heater, water pump, USB outlets and 12V electric air conditioning all place different demands on the battery bank and cable run.
Write down each accessory, its maximum current draw and how long it is likely to run. This tells you whether a single auxiliary battery is enough, whether you need DC-DC charging, and where heavy cable is required. It also stops you fitting a neat-looking distribution panel that is undersized before the vehicle leaves the driveway.
Cable size is not just about the accessory at the end of it. Length matters. A long cable run from an auxiliary battery in the engine bay to a fridge outlet in the rear of a wagon can lose enough voltage to affect performance if the cable is too small. That is especially relevant in older 4x4s, where original wiring was never intended to support modern touring loads.

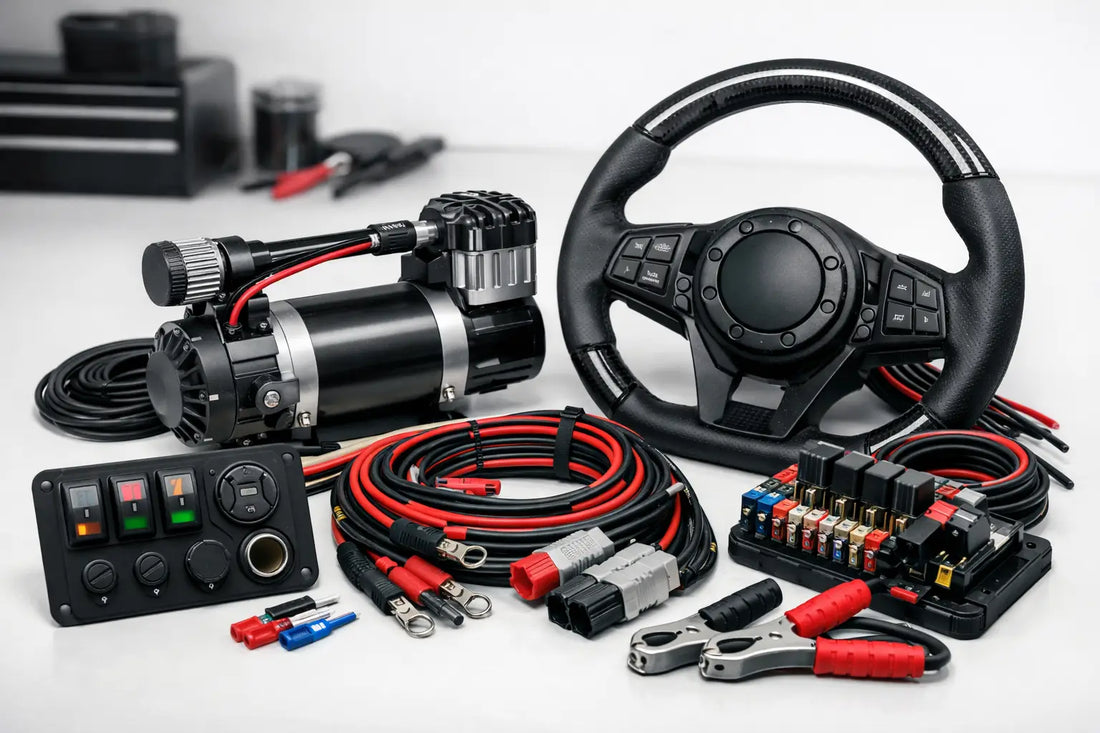

DIY 4x4 Wiring Accessories Worth Fitting Properly
A professional-looking install comes down to the less glamorous parts. Quality accessories protect the vehicle, make faults easier to isolate and let you add equipment later without starting from scratch.
Fuses and circuit breakers
Every positive cable leaving a battery needs protection as close to the battery as practical. This protects the cable if it is crushed, rubbed through or damaged in an accident. A fuse protects the wire, not merely the accessory, so its rating must match the cable capacity and circuit design.
Circuit breakers are useful where resettable protection suits the application, particularly on accessible auxiliary circuits. They are not a substitute for correct cable sizing. Choose sealed, vibration-resistant gear and mount it where it can be inspected without dismantling half the vehicle.
Battery isolation and charging control
An isolator, DC-DC charger or a correctly designed dual-battery arrangement prevents accessories from flattening the starter battery. The right choice depends on the charging system, battery chemistry, cable length and how the 4x4 is used.
For regular touring, a DC-DC charger is often the sensible option because it manages charge voltage at the auxiliary battery rather than relying on what is available at the front of the vehicle. Solar input can be valuable when camped for several days, but it should complement a properly fused, properly terminated main system rather than become an afterthought wired through whatever cable is on hand.
Distribution panels and fuse blocks
A fused distribution block is one of the best upgrades for a tidy canopy, rear quarter or camper fit-out. Instead of stacking accessories directly onto battery terminals, each circuit has a labelled output, suitable fuse and a known route. Fault-finding becomes far simpler when the camp lights, fridge outlet and water pump are clearly separated.
Allow spare circuits. It is far easier to install a larger panel now than replace the lot when you add an air compressor outlet, rear work lights or a GPS tracker later. Use a proper main feed to the panel, with its own protection at the battery end.
Relays, switches and control panels
Relays allow a low-current switch or factory trigger wire to control a higher-current load. They are ideal for driving lights, horns, light bars and other accessories that should not send full operating current through a small dash switch.
Keep controls practical. A switch panel should be easy to reach without looking away from the track, but it should not turn the dash into a spaghetti factory. Label every switch, leave enough wire behind the panel for future servicing, and use a relay or control module rated for the actual load. If you are running several accessories, a purpose-built control panel can centralise switching and circuit protection neatly.
Terminals, heatshrink and connectors
Many electrical failures begin at a termination. A terminal can look fine from the outside while a poor crimp, corroded conductor or unsupported cable fails underneath. Use quality crimp terminals matched to the cable size, then apply adhesive-lined heatshrink where weather sealing is needed.
For removable gear and exposed connections, use properly rated sealed connectors. Trailer plugs, fridge outlets and temporary joiners have their place, but they should not be asked to carry more current than they were designed for. Select connectors for the load, pin rating and environment, not because they happen to fit the hole already drilled in the canopy.
Build for Heat, Water and Vibration
Australian conditions are hard on 12V systems. Heat under the bonnet, corrugations, creek crossings, dust and salt air can expose every shortcut in an install. Accessories need to be secured, protected and mounted where they can survive the environment.
Run cable through split conduit or protective sleeving wherever it passes near sharp metal, heat sources or moving components. Fit grommets through body panels. Support looms at regular intervals with quality mounts, rather than relying on cable ties stretched around existing hoses and brackets. Leave enough slack for body movement and service access, but not so much that a loom can rub or snag.
Earth points deserve the same care as positive wiring. A bad earth can cause dim lights, unreliable compressors, charger faults and confusing intermittent issues. Use a clean, solid mounting point, remove paint where required, use the correct terminal and protect the finished connection from corrosion. For higher-load auxiliary systems, a dedicated negative return cable to a common negative bus can be more reliable than depending on ageing body earths.
Keep water in mind before mounting anything. A fuse block inside a sealed canopy cabinet is a different proposition to one mounted in an exposed engine bay. Check the ingress rating, orient connectors to shed water where possible, and avoid low points where moisture can sit in a plug or loom.
Plan the Layout Before You Cut Cable
Set the gear out on a bench or make a cardboard template of the mounting board first. Think about battery location, charger airflow, fuse access, cable entry points and future expansion. You want to be able to trace every circuit without removing a drawer system or stripping the dash.
A clean layout also makes a safer layout. Keep heavy charging cables separate from sensitive signal wiring where practical. Avoid routing wires alongside exhaust components, steering shafts or sharp chassis edges. When cables must cross, protect them and secure both runs so vibration cannot wear through insulation.
Label both ends of every cable while you are building. It seems fussy until a fault appears two years later on a wet Friday afternoon. A simple label saying “rear fridge feed”, “solar input” or “compressor relay trigger” can save hours of testing.
Take photos before panels go back in. Record fuse sizes, cable sizes and the location of isolation switches. This is useful for your own future work and valuable if another auto electrician needs to inspect the vehicle.
Know When a Bigger System Needs More Planning
There is a difference between adding a pair of rear work lights and building a full secondary power system with charging, refrigeration, compressed air and electric A/C. The more continuous current the system carries, the more critical voltage drop, battery capacity, heat management and charging performance become.
Do not copy a wiring diagram blindly because it worked in somebody else’s ute. Their battery chemistry, cable run, accessory load and vehicle charging system may be completely different. A well-supported DIY system uses components that suit the job and follows manufacturer instructions, while any work that falls under regulated vehicle electrical requirements should be checked by a qualified professional.
Tuck's Performance focuses on the parts serious builders need for 12V and 24V upgrades, with R&D-tested gear you can see operating in a live demo environment. That matters when you are choosing components for a vehicle that has to work beyond the bitumen, not simply look good in a product photo.
The best 4x4 wiring job is one you barely think about once it is finished. Put the effort into protection, cable sizing, layout and quality terminations now, then spend your next trip using the gear rather than chasing an electrical gremlin.
