A 24V air conditioning system only works as well as the parts behind it. If you are piecing together a setup for a truck sleeper, cab, motorhome, camper or heavy-duty 4WD, this guide to 24v aircon components will help you understand what each part actually does and where mistakes usually happen.
That matters because 24V electric aircon is not just a matter of bolting in a box and hoping for cold air. In Australian conditions, component quality, sizing and system layout make the difference between steady cooling and a unit that struggles once the day gets brutal. For a serious DIY builder, knowing the parts is how you avoid wasted money and repeat work.
How a 24V aircon system works
At its core, a 24V system moves heat from inside the cabin to outside it. The evaporator absorbs cabin heat, the compressor pushes refrigerant through the system, the condenser dumps that heat outside, and the expansion device controls refrigerant flow so the cycle can keep repeating.
That sounds simple on paper, but every component has to match the job. If one part is undersized, poorly mounted or fed with weak power, the whole system performance drops off. You do not judge a 24V aircon by the compressor alone. You judge it by how the complete system is built.

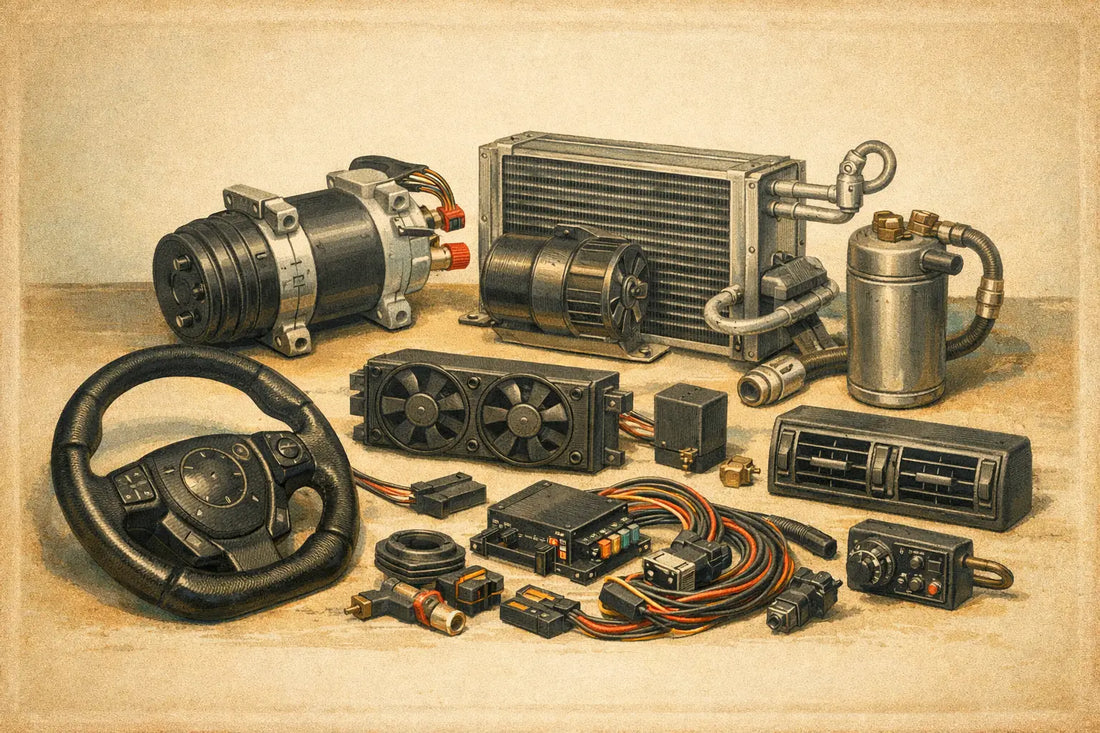

Guide to 24V aircon components: the core parts
Compressor
The compressor is the heart of the system. In a 24V electric setup, it compresses refrigerant and keeps the cooling cycle moving without relying on a belt-driven engine compressor.
For DIY applications, this is one of the biggest advantages. You can run independent cooling in vehicles where packaging is tight, engine bay space is limited, or you simply want an off-engine solution. In sleepers, campers and custom builds, that flexibility is a major win.
What matters most is not just that the compressor is 24V, but that it is designed for the heat load and duty cycle. A lightly insulated camper and a sun-baked truck cab are very different jobs. Oversimplifying that part is where disappointment starts.
Condenser
The condenser removes the heat that has been collected from inside the cabin. It needs strong airflow and a mounting position that actually lets it breathe.
This is one component many DIY builders underestimate. A good condenser can still underperform if it is jammed into a hot, cramped space with poor ventilation. In Australian summer conditions, condenser efficiency is critical. If the condenser cannot reject heat properly, cabin temps rise and system pressures can become a problem.
Fan quality matters here too. A condenser is only as good as the airflow across it when the vehicle is stationary or moving slowly.
Evaporator
The evaporator is the cabin-side unit that cools and dehumidifies the air. This is the part you feel, because it is where the cold air comes from.
Evaporator choice affects airflow volume, vent layout and cabin comfort. In a classic car, you may be balancing limited dash space and appearance. In a truck sleeper or motorhome, coverage and air throw become more important. There is no single best evaporator for every build. It depends on cabin size, insulation, and how you use the vehicle.
A properly matched evaporator should not only deliver cold air, but move enough of it to matter in real conditions.
Expansion valve or metering device
This part regulates how much refrigerant enters the evaporator. It controls the pressure drop that allows the refrigerant to absorb heat effectively.
It is not the flashy component, but it is essential for stable performance. If the metering is wrong, the system can run inefficiently, freeze up, or fail to cool properly. In a DIY build, this is one reason matched components matter. Randomly mixing parts from different systems can create issues that look like compressor or condenser faults when the real problem is refrigerant control.
Receiver drier
The receiver drier stores refrigerant, filters debris and helps remove moisture from the system. Moisture is bad news in any aircon setup. It can cause internal corrosion, poor cooling and long-term component damage.
This is not a part to treat as an afterthought. If the system has been opened, contaminated or left exposed during a build, the receiver drier should be handled properly and replaced when required. Good cold air depends on a clean, dry refrigerant circuit.
Hoses and fittings
Hoses carry refrigerant between components, and the fittings must seal under pressure and vibration. In custom work, hose routing can make or break reliability.
Sharp bends, heat exposure, rubbing points and poor crimping all create future headaches. In utes, 4WDs, trucks and machinery-based installs, vibration resistance matters just as much as pressure rating. A tidy hose run is not only about looks. It helps serviceability and long-term survival.
Wiring, fusing and controls
A 24V electric aircon system lives or dies by electrical supply. If the wiring is undersized, the voltage drops, or the protection is wrong, performance suffers and reliability goes with it.
This is where many systems get blamed unfairly. The aircon unit may be sound, but weak cabling, poor earths, incorrect breaker selection or an ordinary control setup can make the whole thing feel second-rate. A proper 24V build needs correct cable sizing, quality terminals, suitable fuse or breaker protection, and controls that are easy to use and diagnose.
For DIY owners building a secondary power system, this part needs just as much attention as the refrigeration hardware.
The supporting parts people forget
The core components get the attention, but support parts matter as well. Mounting brackets, vibration isolation, ducting, vents, drains and insulation all affect final performance.
A badly drained evaporator can create water issues in the cab. Poor ducting can choke airflow. Weak mounting can shorten component life on rough roads. Thin insulation means the system is fighting heat gain all day. None of these parts are glamorous, but all of them show up in the final result.
Choosing components for your type of vehicle
A classic car, a truck sleeper and an off-grid camper do not need the same setup. That sounds obvious, but plenty of people still shop by appearance or compressor size alone.
In a classic restoration, packaging and aesthetics often matter as much as output. You need components that fit limited spaces and still give reliable cabin cooling. In a truck or machinery cab, durability and heat rejection are front and centre because the environment is harsher and run times are longer. In a motorhome or camper, power management becomes part of the decision, because the aircon has to work with the broader 24V electrical system.
That is why tested kits and proven component combinations matter. On paper, many parts can be made to fit. In real-world Australian heat, only some combinations keep performing properly.
What to look for in a quality 24V aircon component set
The first thing is proper matching. Compressor output, condenser capacity, evaporator size and electrical demand need to work together. One oversized or undersized part can throw the balance off.
The second thing is build quality. That means reliable fans, sound wiring, clean fittings, decent corrosion resistance and components that can handle vibration and heat. If you are building for a vehicle that actually gets used, these details are not optional.
The third thing is support for DIY installation. Clear specs, sensible component design and real technical understanding go a long way. If a supplier cannot explain how the parts work together, that is usually a warning sign.
Common mistakes in 24V aircon installs
The most common mistake is underestimating heat load. Big glass areas, poor insulation, dark interiors and direct sun all add up. If the system is selected without accounting for that, you will end up with aircon that is technically running but not keeping up.
The next problem is poor airflow management. A condenser without breathing room or an evaporator with restricted return air will struggle no matter how good the rest of the hardware is.
Electrical shortcuts are another big one. Thin cable, poor earths and weak protection can cause low voltage and nuisance faults. Then there is refrigerant plumbing. Bad hose routing and contamination during assembly can undo a quality kit fast.
Why component testing matters
Not all 24V aircon components are equal, even when the specs look similar. Real testing matters more than catalogue claims. That is especially true in Australia, where heat, vibration and long operating hours expose weak points quickly.
This is where an R&D-driven supplier stands apart. When components are pulled apart, tested and proven in live conditions, you get more confidence in how the system will behave once it is in your vehicle. That is the difference between buying a box of parts and buying a setup that has been thought through by people who actually care how it performs.
If you are building your own system, take the time to understand each part before you buy. The right 24V aircon components do not just make the cabin colder. They make the whole install cleaner, more reliable and easier to live with when the heat is properly on.
