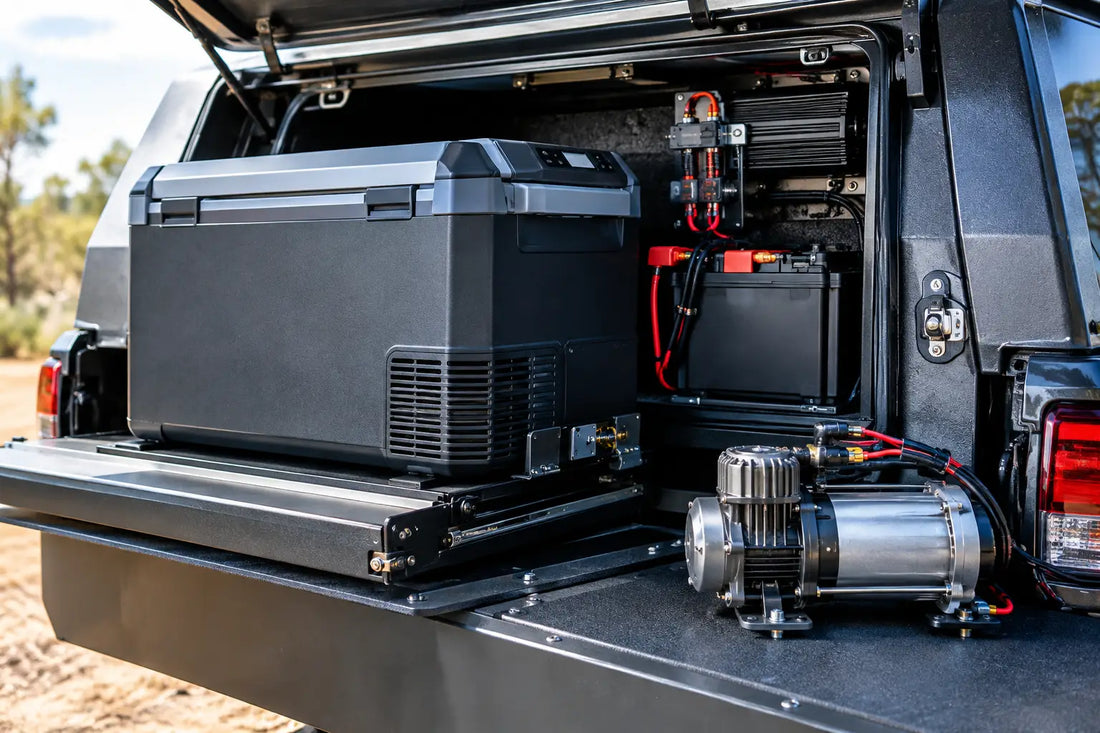

A fridge in the back of a ute is only useful if it is still cold on Sunday morning. When working out how to power a canopy fridge, the fridge itself is rarely the weak point. Most flat-battery problems come from an undersized auxiliary battery, poor charging while driving, voltage drop through light wiring, or a system with no protection against over-discharge.
A proper canopy fridge setup needs to suit how you actually use the vehicle. A work ute that drives every day has different charging needs to a touring LandCruiser parked at camp for three days. Build the power system around your fridge load, your stop time and the way the vehicle is driven.
Start with the fridge's real power draw
Do not size a battery from the fridge’s maximum amp rating alone. A compressor fridge cycles on and off, so its daily consumption depends on ambient temperature, thermostat setting, ventilation, how often the lid is opened and whether you are chilling warm drinks from the servo.
As a practical starting point, many 40L to 60L compressor fridges use roughly 30Ah to 60Ah over 24 hours in typical Australian conditions. In a hot enclosed canopy, that figure can climb quickly. A larger dual-zone fridge, a freezer setting, poor airflow around the compressor, or a black canopy sitting in direct summer sun can push consumption well beyond the brochure figure.
The best method is to check the fridge manual for amp-hour consumption at a stated temperature, then allow a safety margin. If you expect the fridge to consume 45Ah per day, design for at least 55Ah to 65Ah. That margin covers hot weather, longer stops and the fact that real-world camping rarely happens under laboratory conditions.
Before buying more battery capacity, check the fridge installation. Leave space around the compressor vents, keep the condenser free of dust and avoid mounting the fridge where gear can block airflow. Better ventilation reduces compressor run time and saves battery power every day.
How to power a canopy fridge from an auxiliary battery
Your fridge should run from a dedicated auxiliary battery, not the vehicle’s cranking battery. A dual-battery system separates your camping and work loads from the battery needed to start the engine. That is the difference between enjoying a cold drink at camp and finding yourself stranded with a ute that will not crank.
For a fridge-only setup, a quality 100Ah lithium auxiliary battery is a sensible baseline for many canopy builds. Depending on fridge draw and conditions, it can usually cover around one to two days without charging. A 120Ah or 200Ah battery gives more reserve for longer stays, larger fridges, lights, water pumps, inverters or other canopy accessories.
Battery chemistry changes the usable capacity calculation. Lithium batteries can generally supply a much larger share of their rated capacity than AGM batteries without shortening service life. A 100Ah lithium battery can therefore provide substantially more practical fridge runtime than a similarly rated AGM battery. It also charges faster and weighs less, which matters when you are building drawers, water storage and recovery gear into a ute canopy.
That does not mean every build needs the biggest battery available. More capacity adds cost, weight and physical space requirements. If the vehicle is driven daily and the fridge only runs overnight, a well-charged 100Ah system may be ideal. If you regularly stop for two or three nights in remote country, capacity and solar input become far more important.
Mount the battery securely in a protected location, away from water ingress, excessive heat and loose cargo. Use a battery with an internal battery management system suited to the expected loads and charging sources. The battery is the centre of the system, so it is not the place to compromise on unknown specifications.
Charge the battery properly while driving
A DC-DC charger is the correct way to recharge most modern auxiliary batteries from the vehicle while driving. It takes the alternator supply and delivers the controlled multi-stage charge profile your auxiliary battery needs. This is particularly important with modern variable-voltage alternators and lithium batteries.
Choose charger output to match your battery bank, drive time and cable run. A 25A charger may be enough for a modest fridge setup on a vehicle that sees regular driving. A 40A or 50A unit makes more sense where the battery is larger, the fridge is working hard, or driving time between camps is limited.
There is a trade-off. A higher-output charger can replenish the battery faster, but it needs suitably sized supply cable, correct fusing and a sound alternator-side installation. A 50A charger cannot perform properly if it is fed through thin cable over a long run from the engine bay to the canopy.
Install the charger as close as practical to the auxiliary battery. This keeps the output cable run short and lets the charger read battery voltage more accurately. The input cable from the cranking battery should be protected by a fuse or circuit breaker at the source, and the charger output should also be protected close to the auxiliary battery. Every unfused positive cable has the potential to become a serious problem if it rubs through or is damaged in an accident.
For vehicles that spend long periods idling, remember that idle time is not the same as a proper charging drive. Alternator output can be lower at idle, and a heavily discharged battery may not recover as expected. Plan around genuine drive time rather than assuming half an hour parked with the engine running will restore a flat auxiliary battery.
Use proper wiring, connectors and fusing
A canopy fridge may draw only a few amps while the compressor is running, but voltage drop is still a common cause of fridge cut-outs. A fridge can see low voltage at its socket even when the auxiliary battery appears healthy, especially if it is supplied through a light cigarette-style plug, a long cable run or corroded connectors.
Run a dedicated fused circuit from the auxiliary battery or a quality distribution panel to the fridge outlet. Use cable size appropriate to the total run length and expected current, not just the fridge’s average draw. The longer the cable, the heavier it needs to be. Quality automotive cable, properly crimped terminals, abrasion protection and secure mounting matter far more than a fancy-looking control panel.
Anderson-style connectors and quality merit or heavy-duty 12V outlets are generally more dependable than basic accessory sockets for a permanently installed fridge. Whichever outlet you use, make sure the plug fits firmly and cannot work loose over corrugations.
Set the fridge’s low-voltage cut-out appropriately for your battery type. This feature protects the battery from excessive discharge, but it must be coordinated with the battery management system. If the fridge cut-out is set too high, it may stop early and waste usable capacity. If it is set too low, the battery management system may shut down abruptly and leave the fridge without power until charging resumes.
Add solar when the vehicle sits still
Solar is valuable when the canopy fridge needs to run while the vehicle is parked. A roof-mounted panel is convenient because it charges whenever there is daylight, but its output is fixed by the vehicle’s parking position. A portable panel can be aimed at the sun while the ute stays in shade, although it needs setting up and securing.
For a fridge-focused setup, 160W to 200W of solar can make a meaningful difference in clear conditions. It may cover a large part of the fridge’s daily use, but do not treat the panel rating as guaranteed output. Cloud, heat, dust, shade from roof racks and the sun’s angle all reduce production.
Use a solar regulator matched to the battery chemistry and panel arrangement. Many DC-DC chargers include a solar input, which can simplify a canopy build by managing alternator and solar charging in one unit. It is a tidy option when the charger is sized and mounted correctly.
Test the system before the big trip
Do a real test at home before relying on the setup in the bush. Load the fridge with water bottles, set it to your normal temperature and run it from the auxiliary battery for 24 to 48 hours. Watch battery voltage, charger performance and how the fridge behaves during the hottest part of the day.
This test often exposes the issues that product specifications do not show. You may find the canopy needs more ventilation, the battery is not fully charging on your daily commute, or a fridge outlet is dropping voltage under compressor start-up. Fixing those details in the driveway is far easier than chasing them after dark at camp.
If the fridge cuts out despite a charged battery, check the voltage at the fridge plug while the compressor tries to start. A major difference between battery voltage and outlet voltage points to cable, connector, fuse holder or earth connection resistance. Do not simply bypass the fridge protection setting and hope for the best.
A correctly planned secondary power system turns a canopy into a proper working and touring setup. Tuck's Performance tests 12V and 24V electrical gear in live demo conditions because the details matter: charging rate, cable sizing, heat, vibration and the way components behave when they are actually under load. Build it once with enough reserve, then let the fridge do its job while you get on with yours.
