A hot cab, camper or sleeper is more than uncomfortable. It ruins sleep, makes a long day feel longer, and can turn a well-finished build into something you avoid using through summer. The rooftop aircon versus split system decision comes down to more than cooling capacity. It is about where you have room to mount it, how your 12V or 24V power system is built, how much noise you will tolerate, and whether you want to tackle the installation yourself.
For a DIY builder, there is no universal winner. A rooftop unit can be the clean, all-in-one answer for a motorhome or camper. A split system can be the smarter layout when roof space is limited, centre of gravity matters, or you need to cool a truck sleeper, classic cab or custom enclosure without putting a large unit above it.

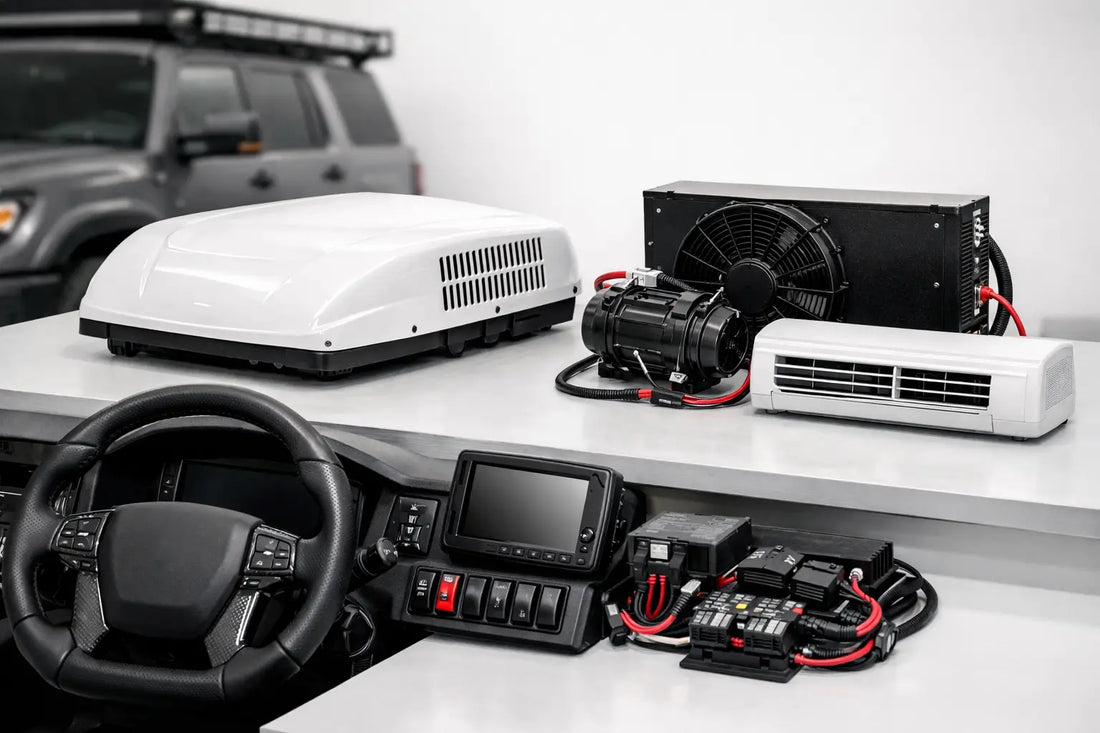

Rooftop Aircon Versus Split System: The Basic Difference
A rooftop air conditioner is a packaged unit. Its major cooling components sit together in one housing on the roof, with conditioned air delivered down into the space below. The installation is concentrated around a roof opening, secure mounting, sealing, wiring and a condensate drainage arrangement designed for the unit.
A split system separates the hot side from the cold side. The evaporator, which blows cold air into the cabin, is mounted inside. The condenser and compressor assembly are mounted elsewhere, often outside the cabin or in a protected ventilated location. Refrigerant lines and electrical wiring connect the two sections.
That physical difference changes the whole build. Rooftop aircon uses valuable roof real estate but keeps the interior free. A split system takes more planning and more installation work, yet gives you more freedom over where weight, noise and airflow end up.
When a Rooftop Unit Makes Sense
A rooftop unit suits a vehicle where the roof is strong, accessible and reasonably clear. Think motorhomes, larger campers, caravans and certain service bodies where a flat roof area is available and the inside layout needs to stay uncluttered.
The biggest advantage is packaging. With the compressor and heat-exchange hardware in one weatherproof assembly, you are not trying to find a suitable external mounting location underneath the vehicle or inside a crowded body compartment. For many DIY owners, that makes the system easier to visualise and easier to service later.
It also keeps the hot-side noise above the living area rather than beside it. That does not mean a rooftop unit is silent. Fan noise and vibration still travel through a roof structure, particularly if the roof panel is thin or poorly reinforced. But a correctly mounted unit can be a tidy solution for overnight cooling where the roof has been prepared properly.
There are compromises. A rooftop aircon unit adds weight high up, which matters on taller campers, off-road caravans and rigs that already carry solar panels, roof racks, awnings or recovery gear. It can also compete directly with solar space. Before cutting a hole, measure every planned roof item, including access room for cleaning filters, servicing covers and opening hatches.
A roof opening is permanent, so do not treat the sealing work as an afterthought. Reinforce the aperture where required, use the correct gasket or sealant system, and check that water will drain away rather than pool around the unit. A strong installation is not just about holding the aircon in place. It is about surviving corrugations, heat cycles and years of weather.
Rooftop aircon is usually best for
It is generally a strong choice for larger enclosed spaces, builds with clear roof area, and owners who want the cabin and external body panels left clean. It is less attractive where roof load is already high, the vehicle spends serious time on steep tracks, or solar capacity is the priority.
Where a Split System Earns Its Keep
A split system gives the builder more control. You can put the indoor unit where airflow is most useful, then position the condenser and compressor assembly where there is ventilation and protection without crowding the cabin.
That flexibility is valuable in truck sleepers, custom canopies, machinery cabs and classic vehicles where a roof-mounted box would look wrong or simply will not fit. In a restoration, the ability to keep a cabin tidy and place equipment out of sight can be the difference between an aircon upgrade that looks factory-minded and one that looks added on at the last minute.
Weight distribution is another major benefit. Rather than placing most of the system on the roof, you can locate the heavier external components lower down. For a 4WD camper or off-road build, that can be worth serious consideration.
The trade-off is complexity. You need a safe route for refrigerant lines, wiring and drains. Those lines must be protected from chafe, heat and road debris, while still allowing sensible service access. The external section needs enough airflow to reject heat. Mounting it in a sealed compartment because it is out of sight will cause poor performance and high operating stress.
A split system also asks more of the installer. Brackets need to be solid, line runs need to be neat, and every penetration through a wall or floor needs proper sealing and grommets. This is not difficult work for a careful DIY builder, but it rewards planning before the drill comes out.
Power Draw Is Not a Sticker Number
Whether you choose rooftop or split aircon, the electrical system decides whether the unit will be useful in the real world. A 12V or 24V electric aircon can deliver independent cooling, but it must be matched to battery capacity, cable size, fuse and breaker protection, charging input and the way you actually use the vehicle.
Do not buy based solely on a headline wattage or claimed amp draw. Ask what the system consumes at start-up, during pull-down on a 40-degree day, and once the cabin has reached temperature. Consider the size and insulation of the space. A well-insulated sleeper with window covers is a completely different load from a large camper with sun pouring through unshaded glass.
Voltage drop is a common DIY killer. Long undersized cables can make a quality aircon system perform poorly or trip protection under load. Use correctly sized cable, sound terminations and appropriate circuit protection. If you are running a 24V system, keep the whole design consistent rather than trying to patch together mismatched components.
Battery capacity needs honest maths too. If you expect aircon to run while parked overnight, calculate usable battery capacity against realistic run time, not best-case brochure figures. Charging sources matter just as much. Solar can support a system in good conditions, but it should not be treated as magic power that replaces proper battery storage and charging design.
Cooling Performance Comes Down to Airflow and Heat Load
A rooftop unit naturally delivers air from above, which can work well in a compact living space. A split system lets you choose the indoor outlet position, which may provide better direction across a sleeper berth, work area or cab. Neither layout fixes poor airflow on its own.
Think about where people sit and sleep, where the sun hits, and where hot air gets trapped. In a camper, the best outlet position may not be in the centre of the ceiling. In a truck sleeper, direct cold air onto your face all night can be miserable even if the temperature is low. Aim for circulation through the space rather than a harsh blast at one spot.
Insulation, door seals, window coverings and ventilation all influence aircon performance. Sorting those basics first can allow a properly selected system to maintain temperature with less noise and less battery draw. Air conditioning should not be expected to overcome a badly insulated tin box parked in full sun.
Installation Checks Before You Commit
Before ordering gear, take accurate measurements and make a simple layout drawing. Mark roof obstructions, interior cabinetry, solar panels, vents, wiring routes, battery location and potential condenser mounting points. This ten-minute exercise prevents expensive changes later.
For rooftop units, confirm roof structure, available flat area, internal clearance and water drainage. For split systems, confirm the condenser has protected ventilation, line routes are short and secure, and the indoor unit has a practical condensate drain path.
Also consider service access. Filters need cleaning. Electrical connections need inspection. Mounting bolts need periodic checking after rough-road travel. A system hidden behind permanently fitted cabinetry may look neat on day one but becomes a headache when it needs attention.
At Tuck's Performance, the focus is on 12V and 24V electric aircon equipment that has been pulled apart, tested and assessed for Australian heat. If you are building the system yourself, a real conversation about your space, voltage, battery setup and intended use is worth having before you choose a layout.
The right setup is the one that suits your rig as it is actually used. Measure the space, map the power system and be honest about where you park, sleep and travel. Do that groundwork first, and your aircon choice will feel like a proper upgrade every time the temperature climbs.
