DR1 Roof Top Electric Air Conditioner 12v or 24v
DR1 Roof Top Electric Air Conditioner 12v or 24v
Couldn't load pickup availability
FREE Shipping! Now Only 2-3 Weeks
Explore the DR1 Roof Top Electric Air Conditioner
Product Overview

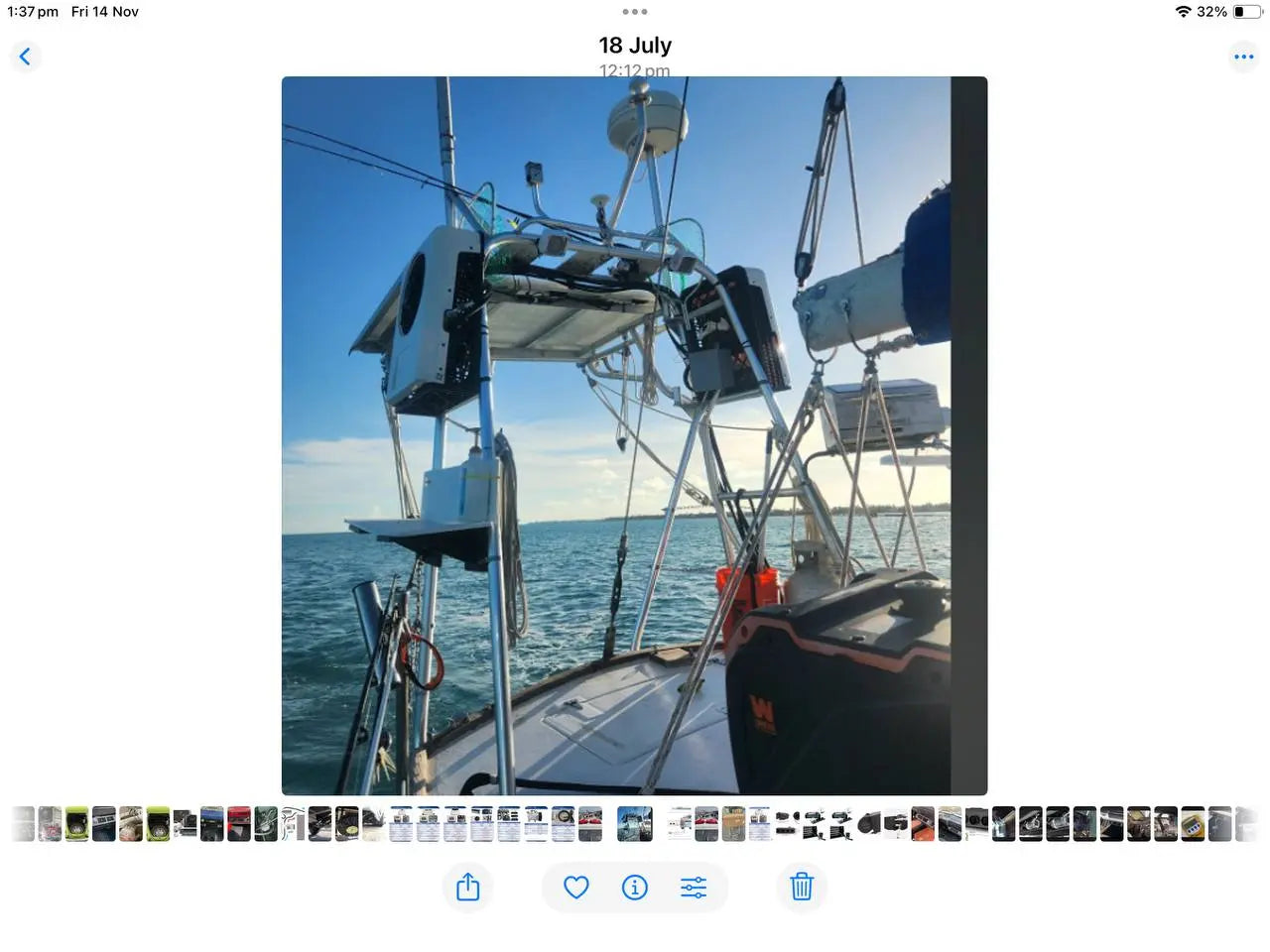

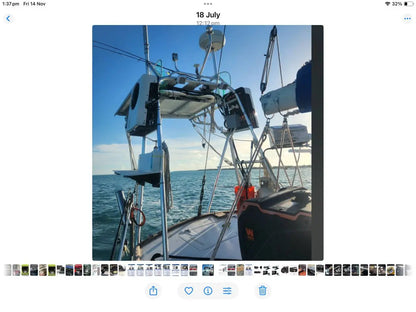

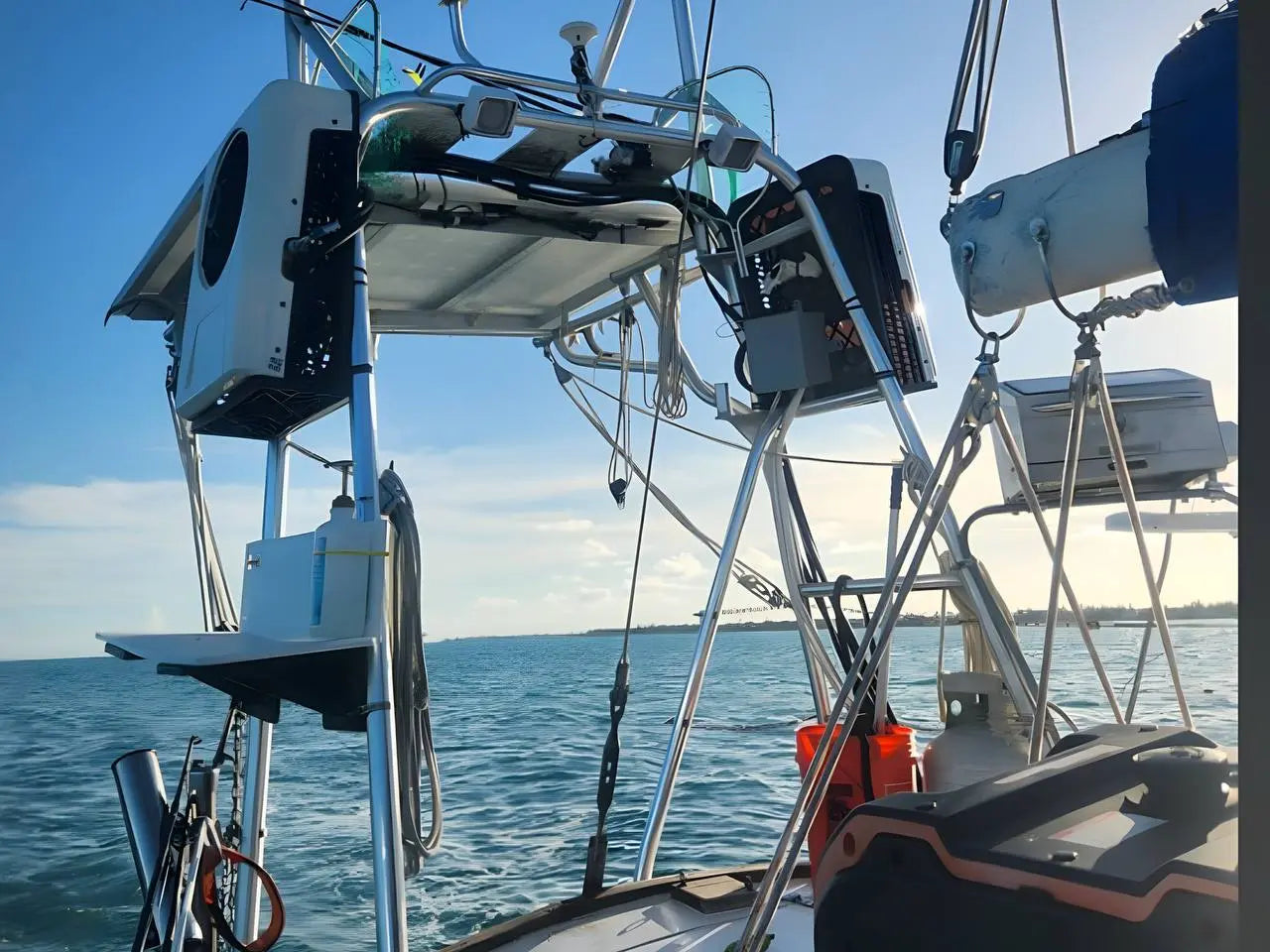

The DR1 is a high-capacity rooftop electric air conditioning system designed for trucks, motorhomes, campers, off-grid vehicles, machinery, marine applications and custom builds. On the 200s, the plastic ends on the side steps are notorious for getting cracked or torn off — usually from a rock, stump, tree, or even just stepping on them the wrong way.
It uses a modern variable-speed inverter compressor (not the old fixed-speed rotary style), so cooling output and power draw automatically adjust to demand.
Why DR1?
- Engine-off operation capable
- Battery-friendly variable-speed operation
- Designed for high ambient temperatures (35°C+)
- Can be run while driving (many rooftop units are park-only)
Compressor & Operating System
Compressor type: Variable-speed inverter
Typical operating speeds:
- Low: ~1500 RPM (temperature holding / low load)
- Medium: ~3000 RPM (normal cooling)
- High: ~4500 RPM (rapid pull-down on hot starts)
As the cabin cools, the compressor automatically reduces speed and current draw. This is significantly more efficient than older rotary compressors that run flat-out continuously.
Electrical & Power Consumption
| System | Current Draw | Power |
|---|---|---|
| 12V | 16–75A | ~500–800W |
| 24V | 8–35A | ~200–800W |
Battery Protection
- Soft-start (reduces startup spike)
- Low-voltage cut-off (helps prevent battery drain)
Cooling Performance
- Cooling capacity (12V): 7500–9000 BTU
- Cooling capacity (24V): 9000–10500 BTU
- Airflow: 240–450 m³/h
- Noise level: 50–62 dB

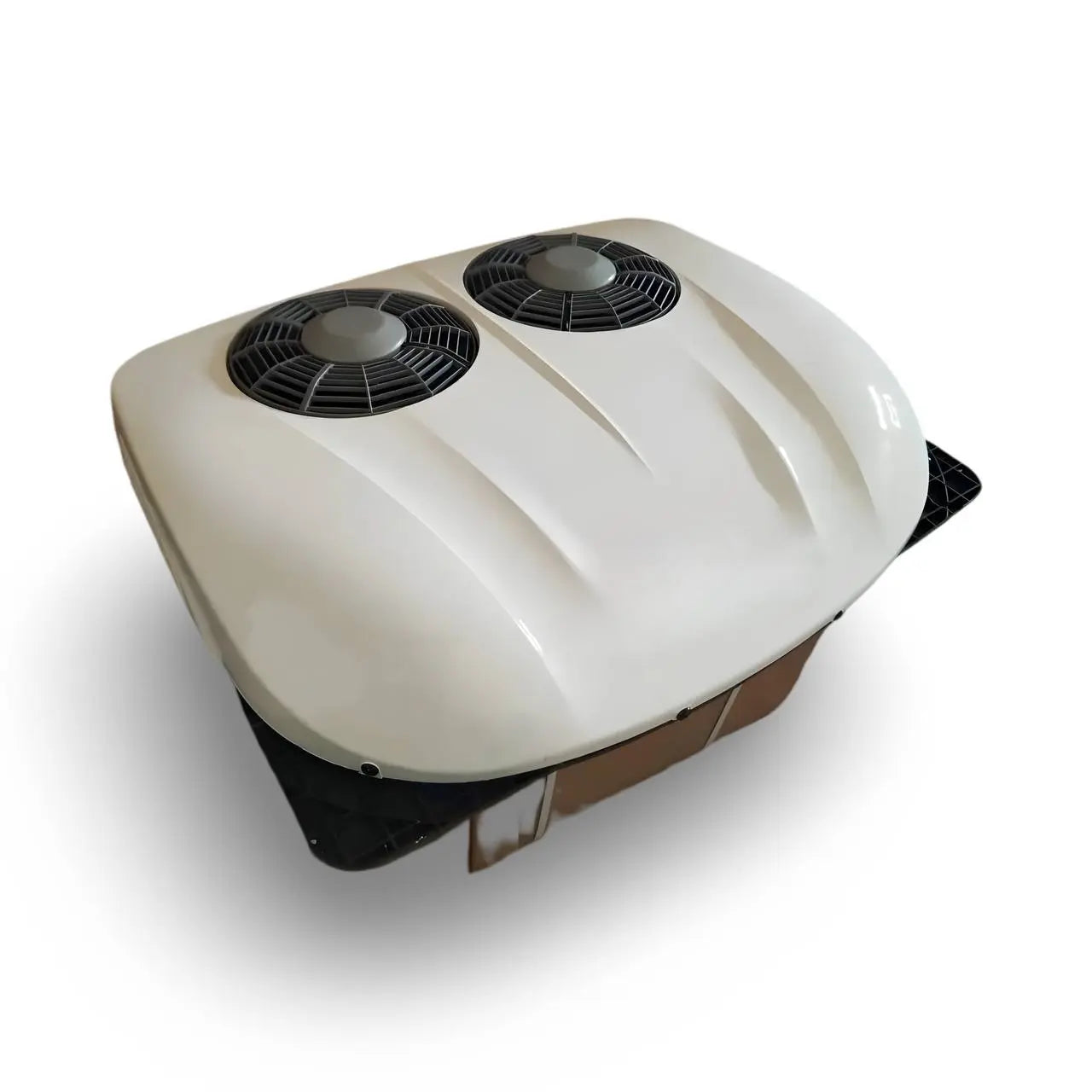

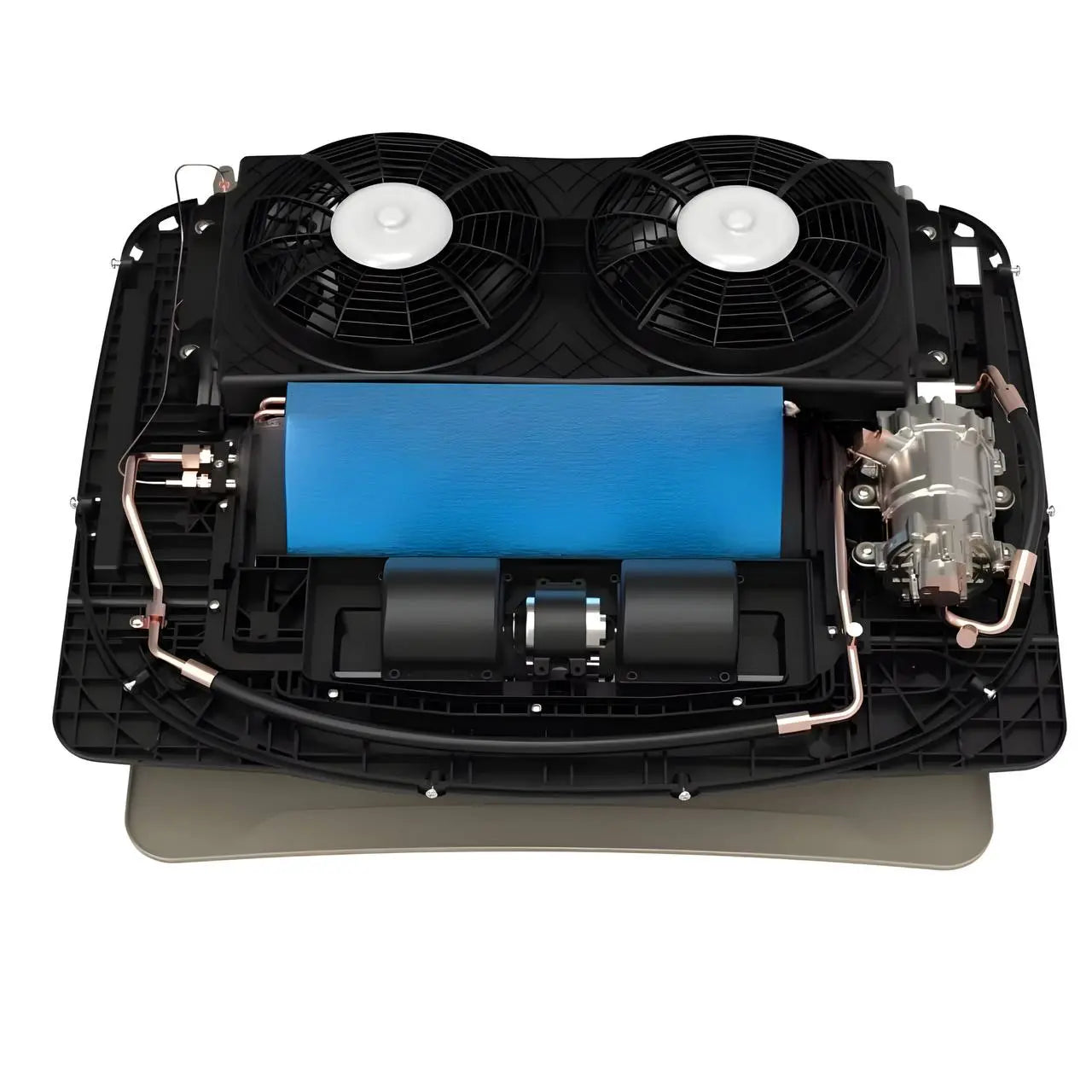

Heat Rejection & Condenser System
- Large-capacity condenser
- Dual 300 mm high-flow condenser fans
- Designed for stable performance in extreme heat
Materials & Construction
- Evaporator: Copper core
- Condenser: Aluminium core
- Fasteners: Stainless steel
- Fully sealed rooftop housing
Refrigerant
- Refrigerant type: R134a
- Supplied un-gassed (installation/charging by a licensed automotive A/C technician is required by law)
Technical Specifications
Dimensions
- Rooftop unit: 980 × 730 × 170 mm

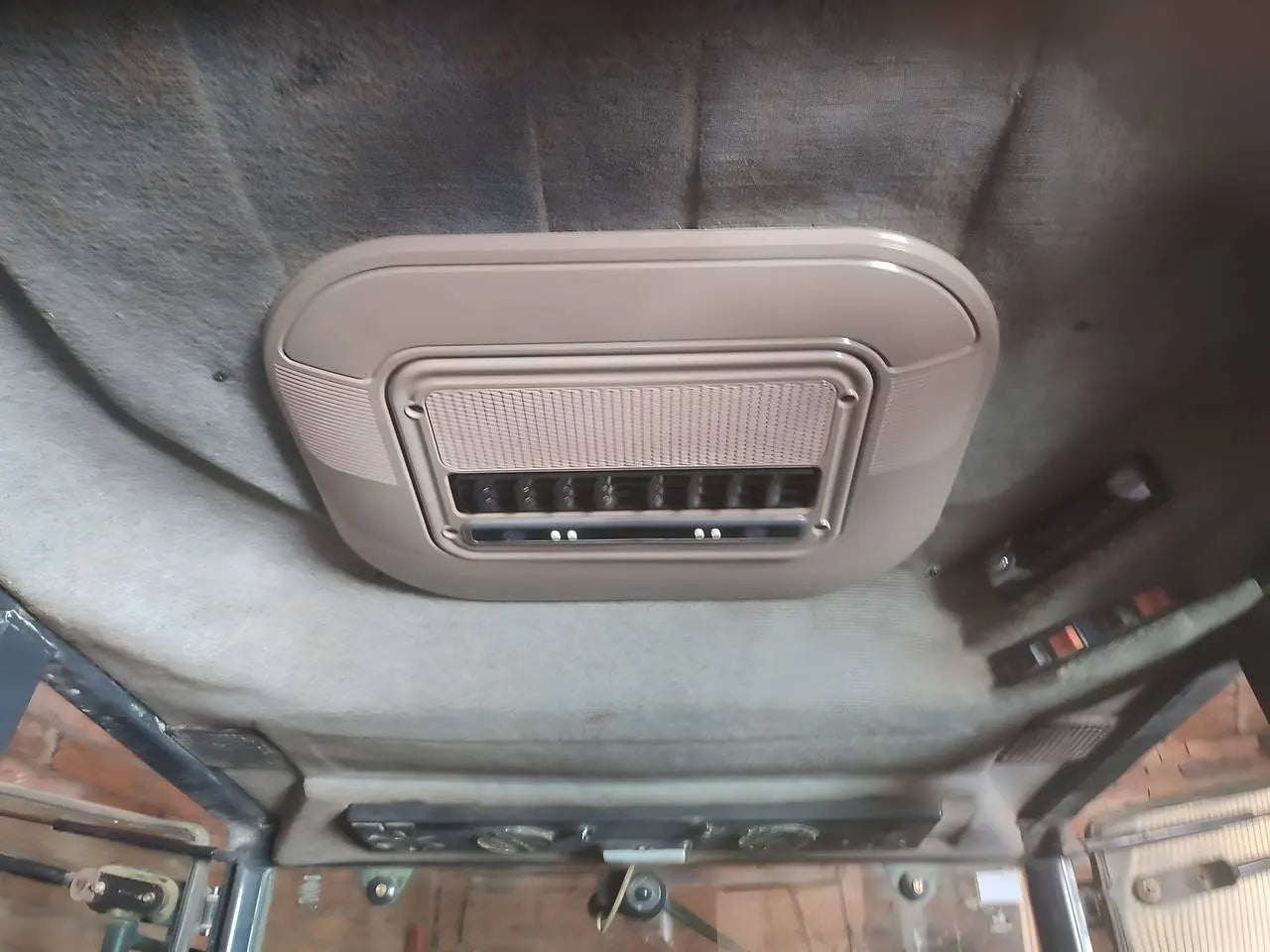

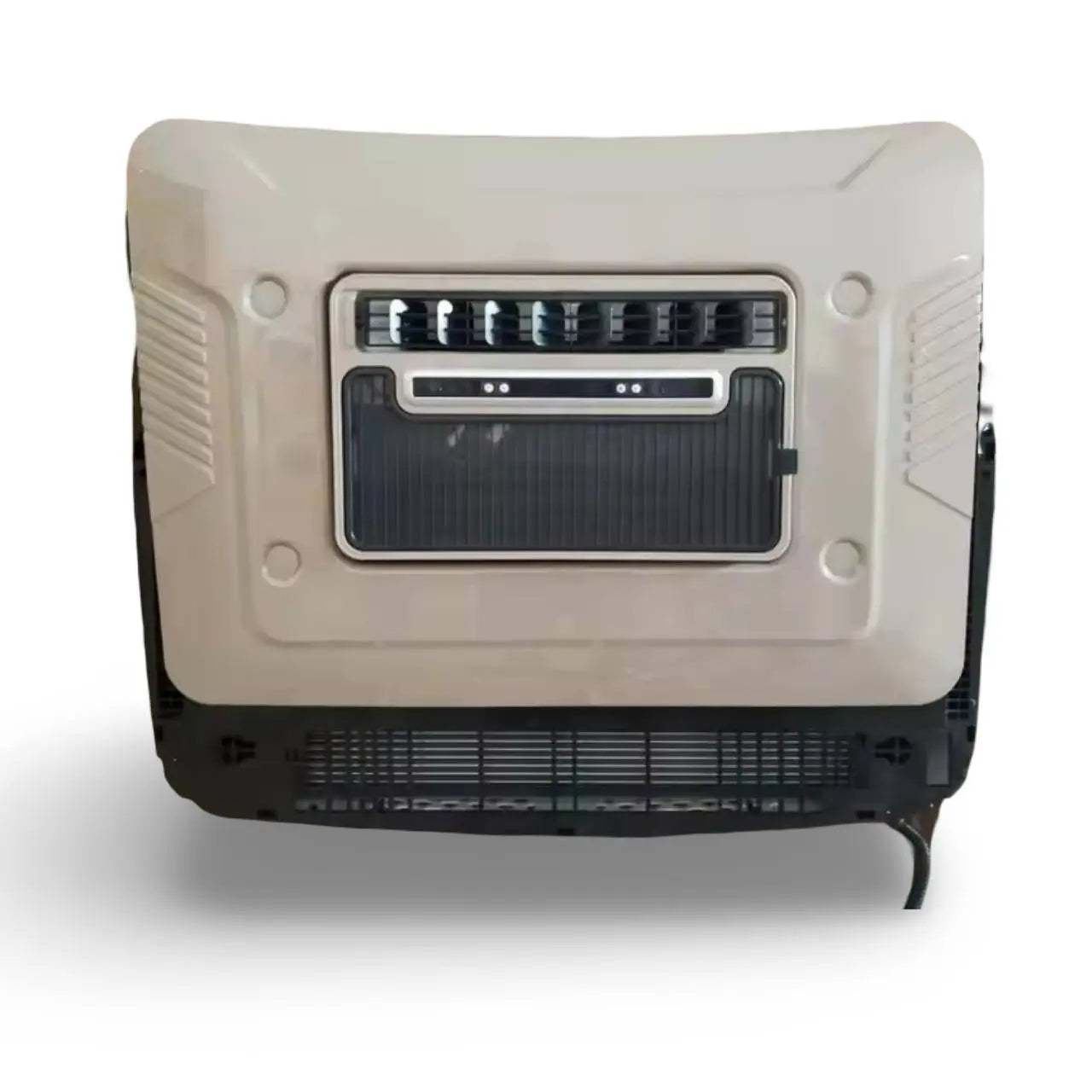

- Indoor evaporator: 560 × 350 × 120 mm
- Blower fascia size: 850 × 600 mm
- Condenser core: 740 × 330 mm
- Evaporator core: 610 × 330 mm (21 copper tubes)
Fan System
- Dual 300 mm high-flow condenser fans
- Bi-directional automatic swing blower
Wiring & Installation

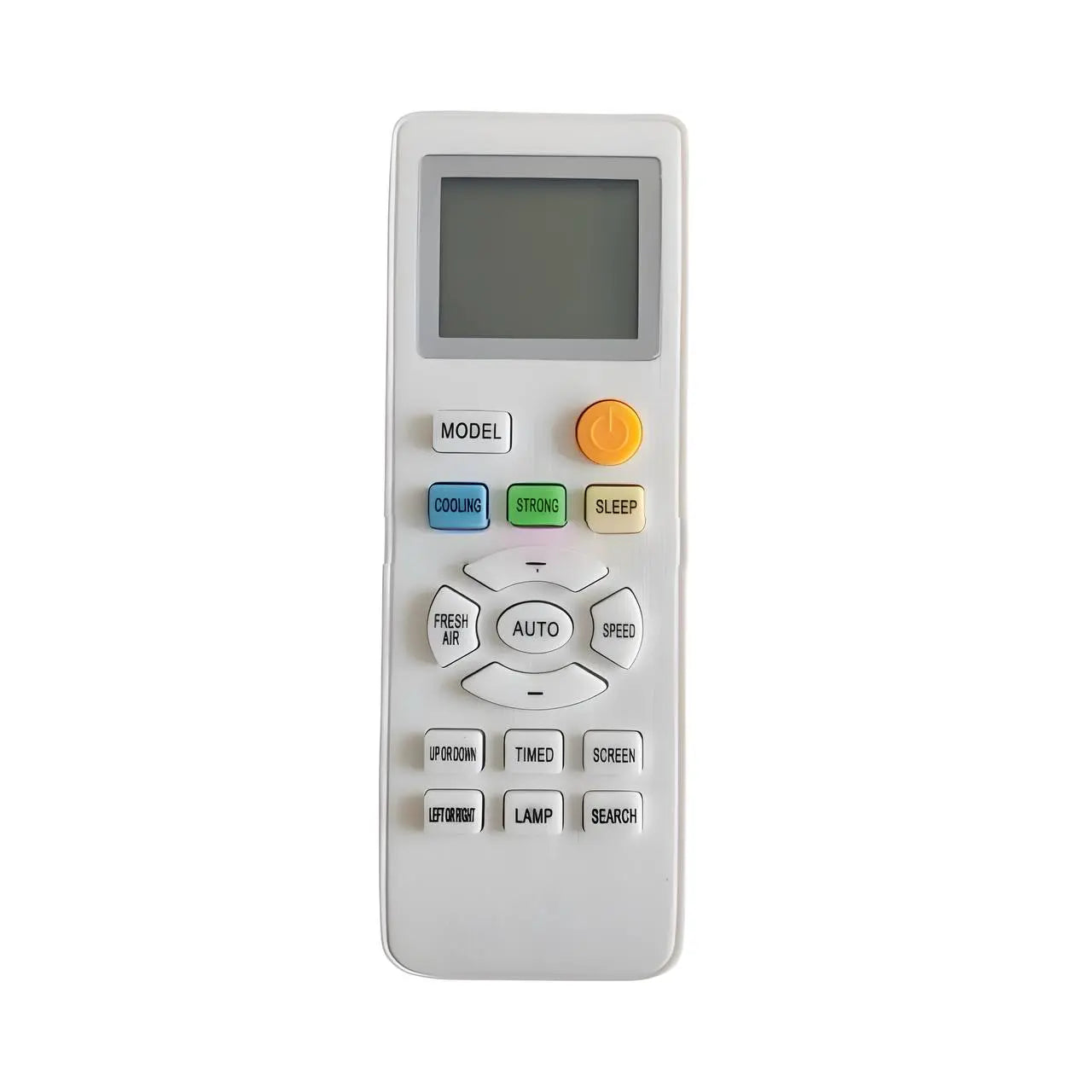

- Supplied with rooftop assembly, indoor evaporator, wiring and controller
- 5 m umbilical harness included
- Simple 3-wire main connection
Operating modes:
- Suitable for engine-off use
- Can be run while driving (unlike many competing rooftop units)
Weight & Packaging
- Carton size: 110 × 86 × 41 cm
- Weight: 36 kg

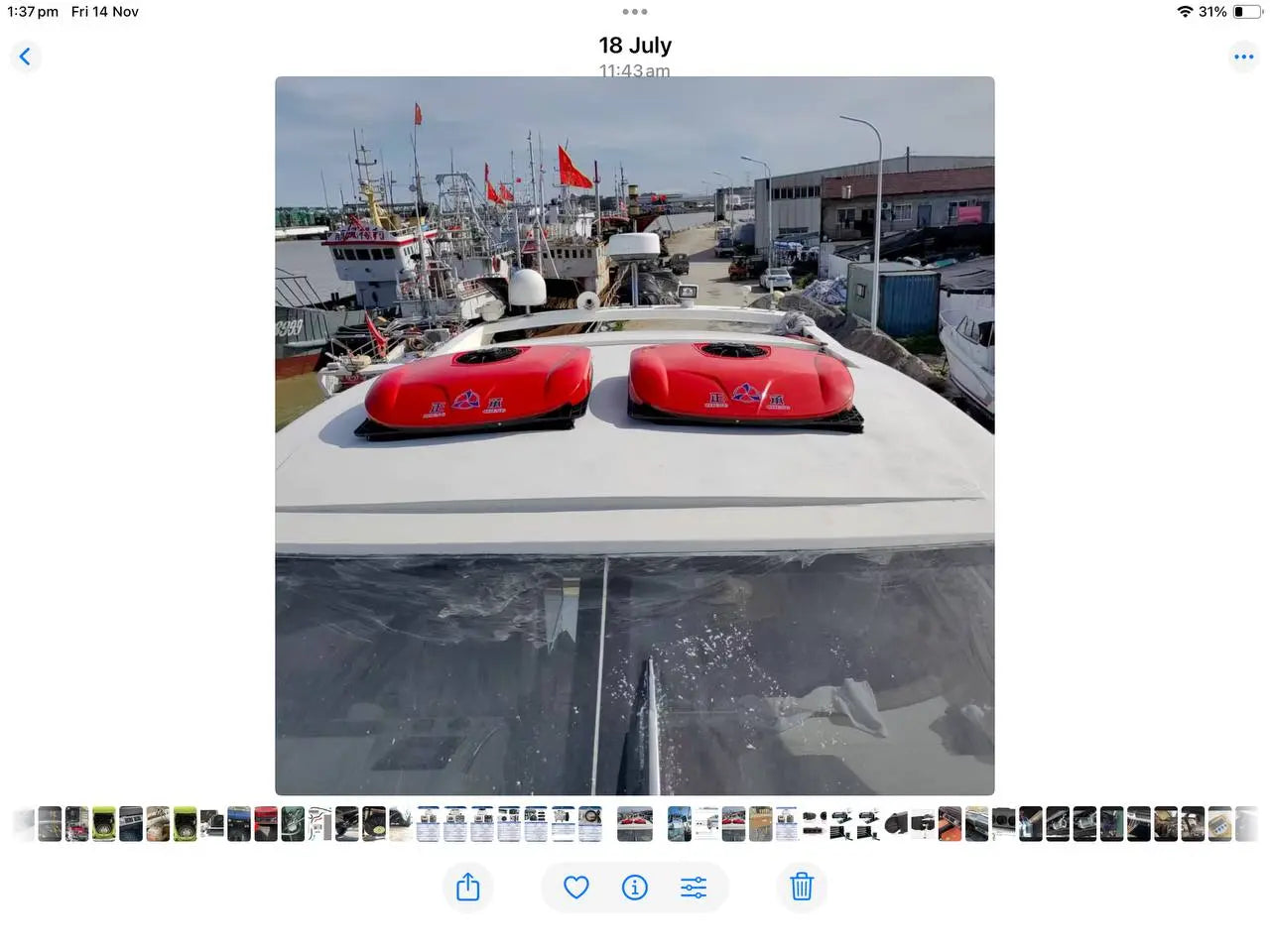

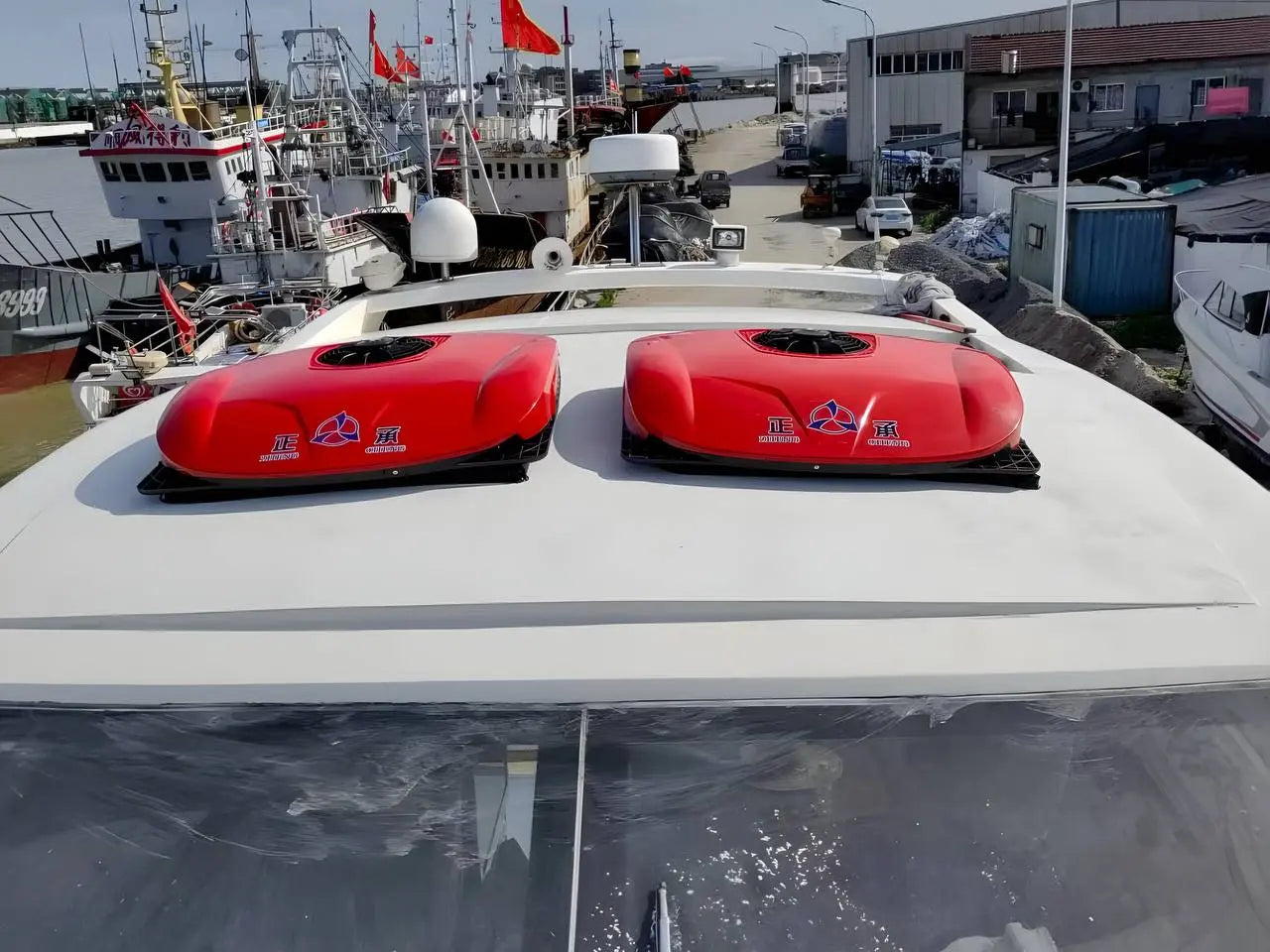

Colours Available
- White
- Red
Shipping
- Air freight shipping
- Typical delivery: 2–3 weeks
- Tracking provided
- Free shipping to metro areas
- ⚠️Rural/remote areas: please contact us before ordering
Warranty
- 12 months full system warranty
- 36 months compressor warranty
High Performance with Flexible Voltage
The DR1 Roof Top Electric Air Conditioner is designed to deliver exceptional cooling, catering to both 12v and 24v systems. This flexibility makes it an ideal choice for various applications such as RVs, campers, and even small mobile units. Its robust engineering ensures that users achieve a comfortable climate wherever they go. Because of its reliable power options, the DR1 is a versatile solution for anyone looking for effective cooling on the road.
Energy Efficiency and Environmentally Friendly
This air conditioning unit prides itself on energy efficiency, helping owners minimize power consumption while providing ample cooling. The DR1 is built with advanced technology that not only lowers energy costs but also reduces its environmental impact. Therefore, users can enjoy a cool environment without the added guilt of high electricity bills. It's a sustainable choice for conscientious consumers seeking to reduce their carbon footprint.
Easy Installation and User-Friendly Design
One of the standout features of the DR1 Roof Top Electric Air Conditioner is its straightforward installation process. Users can easily mount it on their vehicles or structures without needing specialized tools or expertise. The unit’s user-friendly design allows for simple operation, ensuring that everyone can enjoy efficient cooling without hassle. Because of its intuitive controls, users can adjust settings with ease, making their experience comfortable and convenient.
