AN Fittings Swivel Hose End AN4 AN6 AN8 AN10 AN12, Straight 45 90 180 Degree, Black

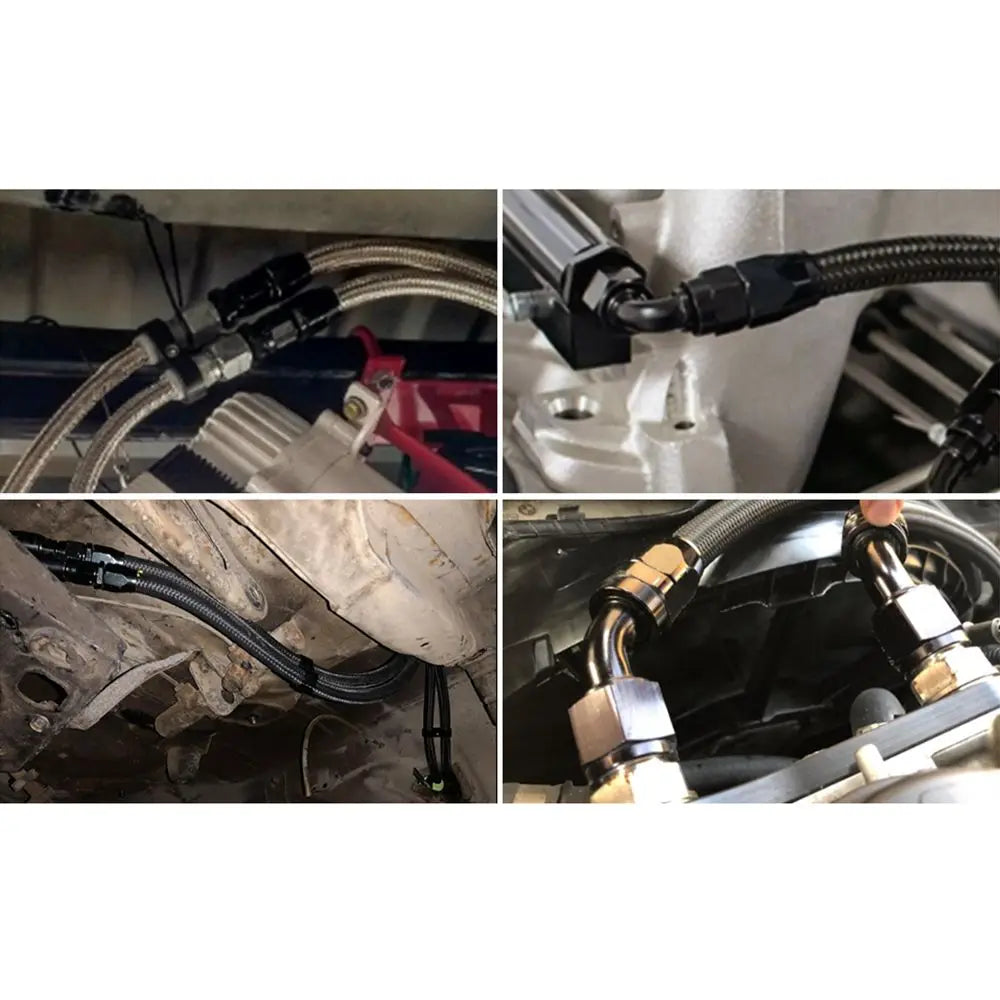

These are the AN fittings most builds start with: full-swivel hose ends for stainless braided, rubber-lined (CPE) fuel and oil line. Clock the fitting where you want it, then nip it up. Use them for fuel feeds and returns, oil cooler lines, turbo oil drains, breathers and trans cooler lines on hot rods, LS swaps and EFI conversions.

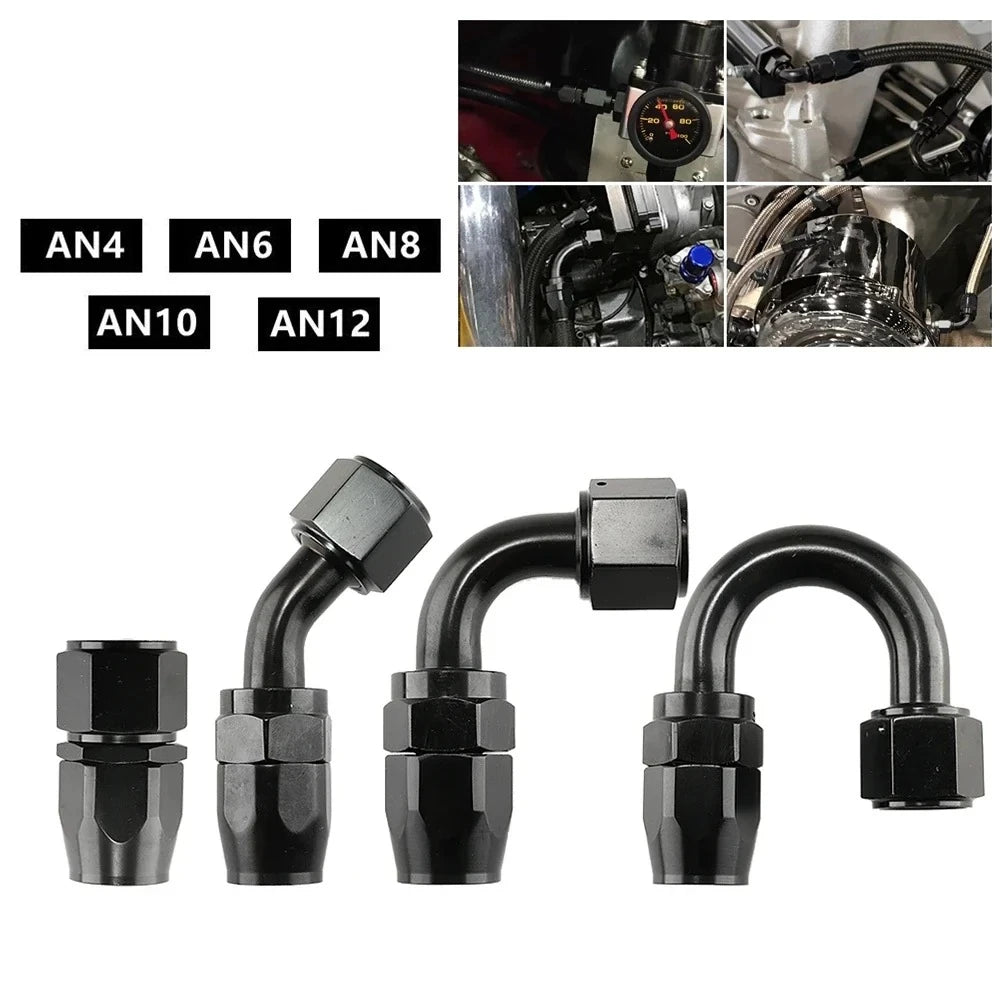

• Sizes: AN4 (-4), AN6 (-6), AN8 (-8), AN10 (-10), AN12 (-12)

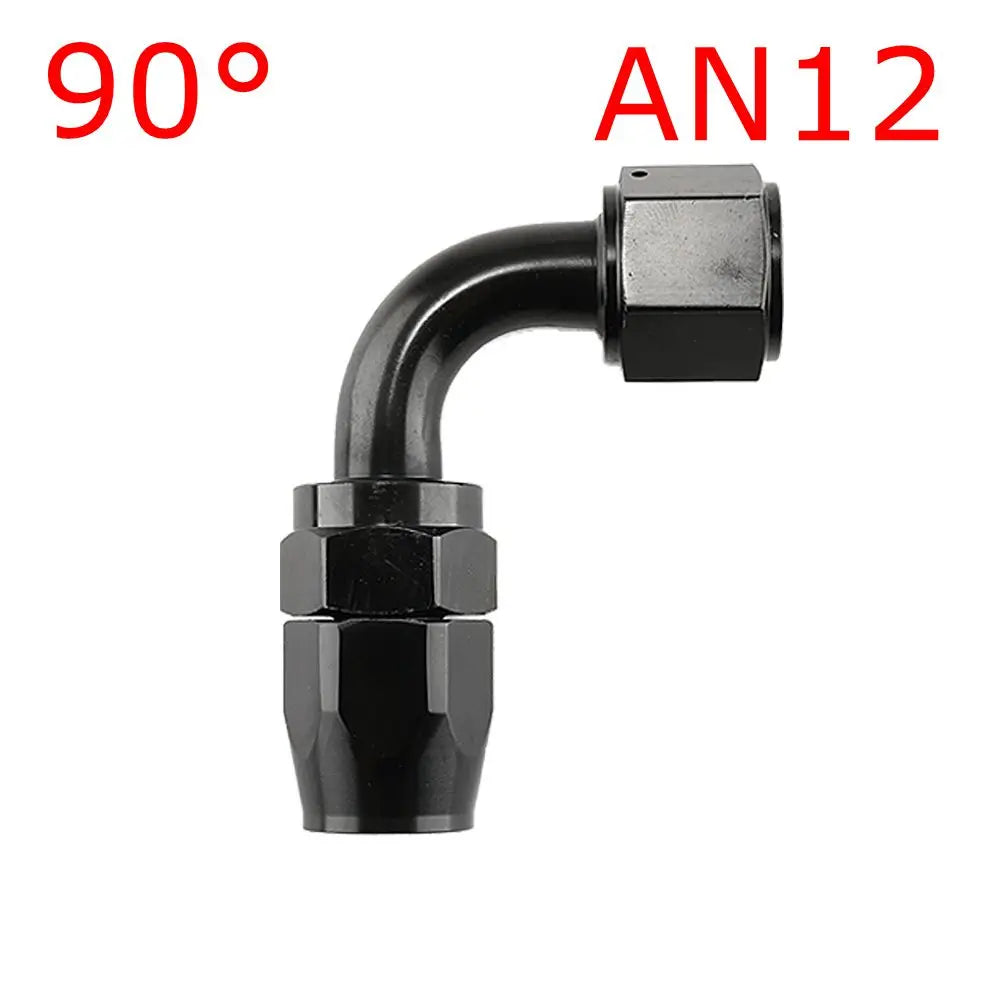

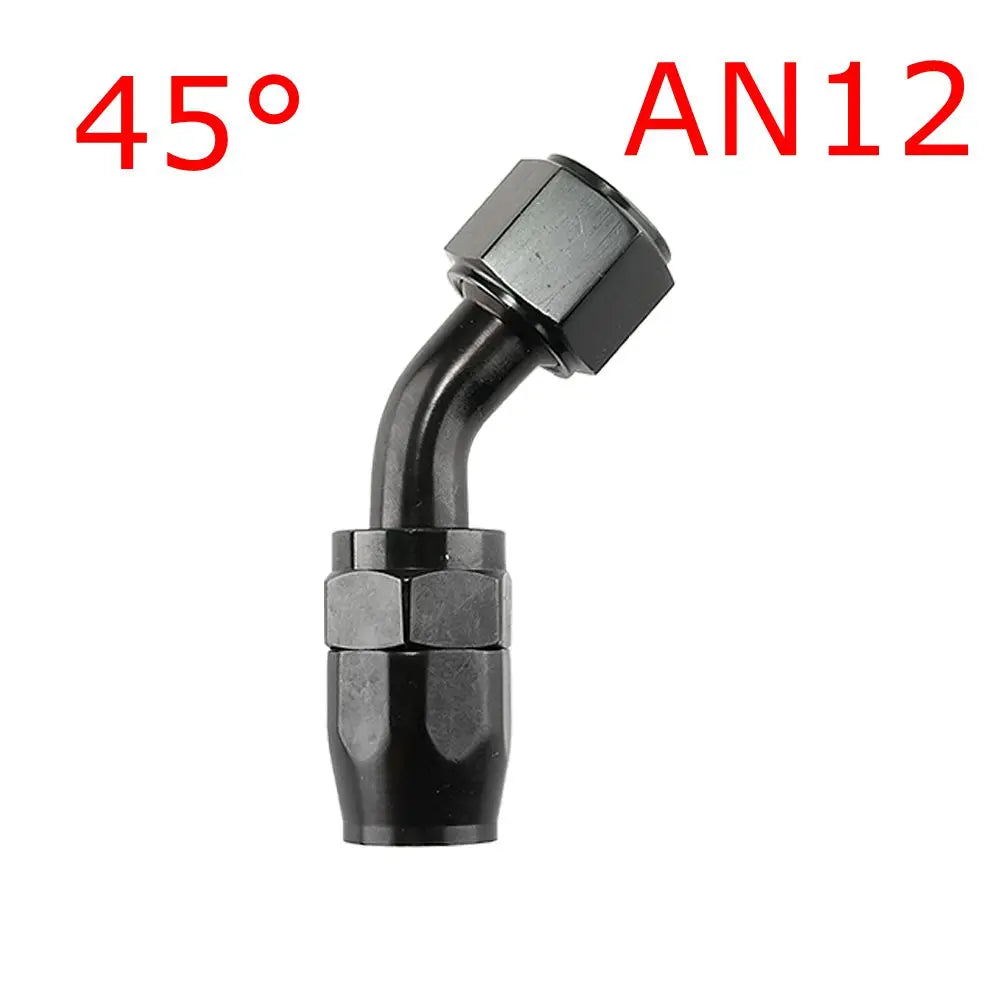

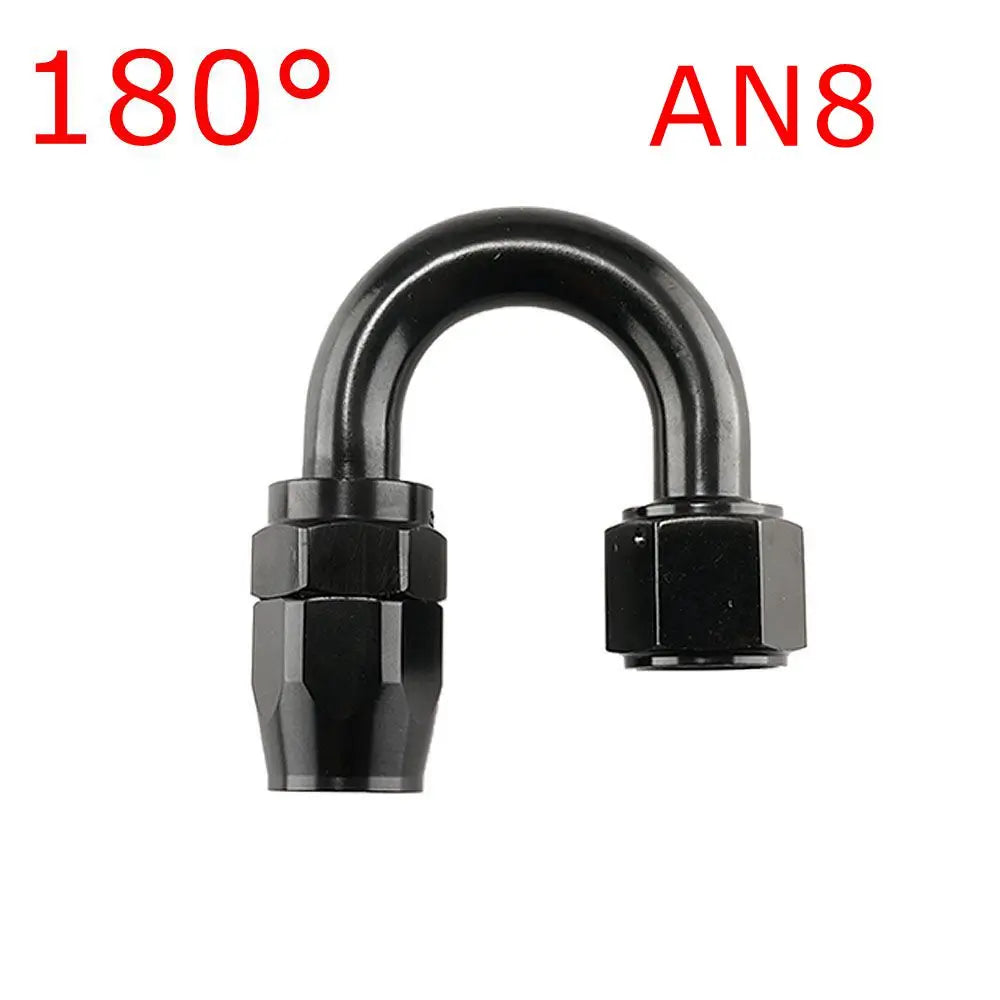

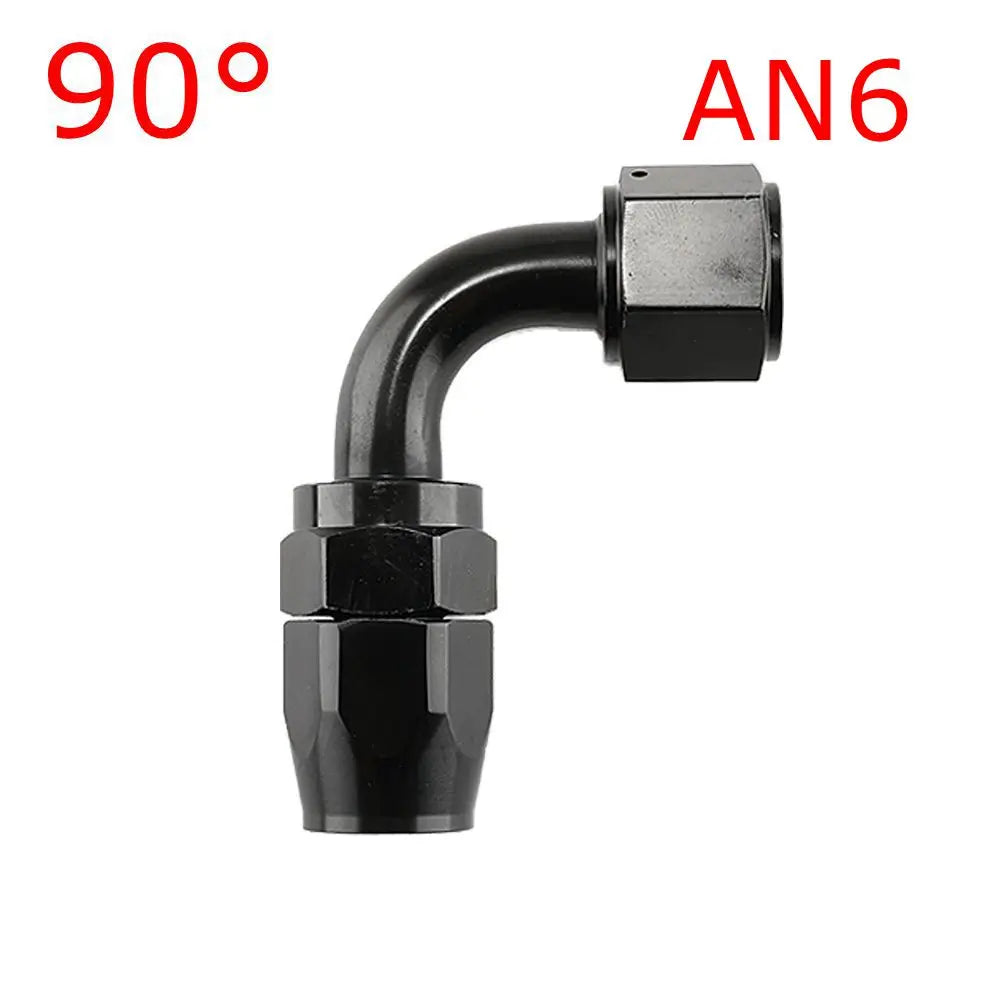

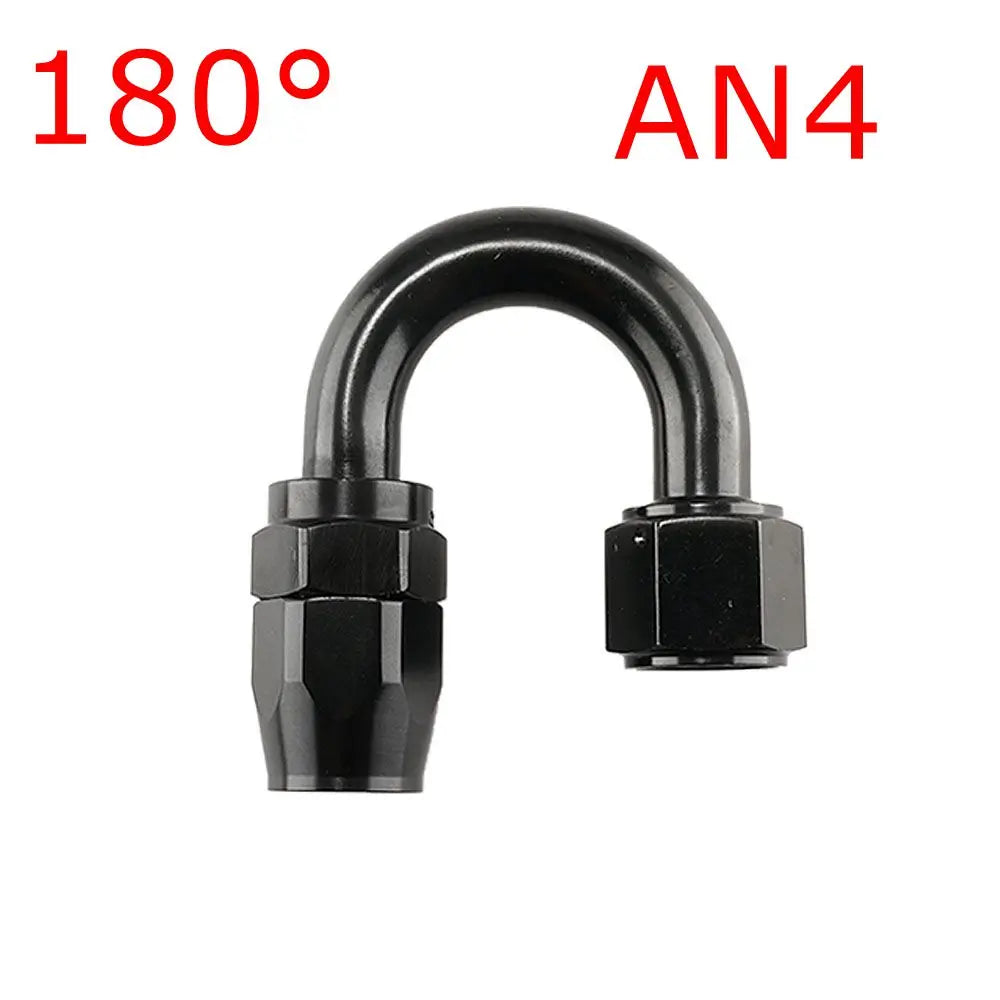

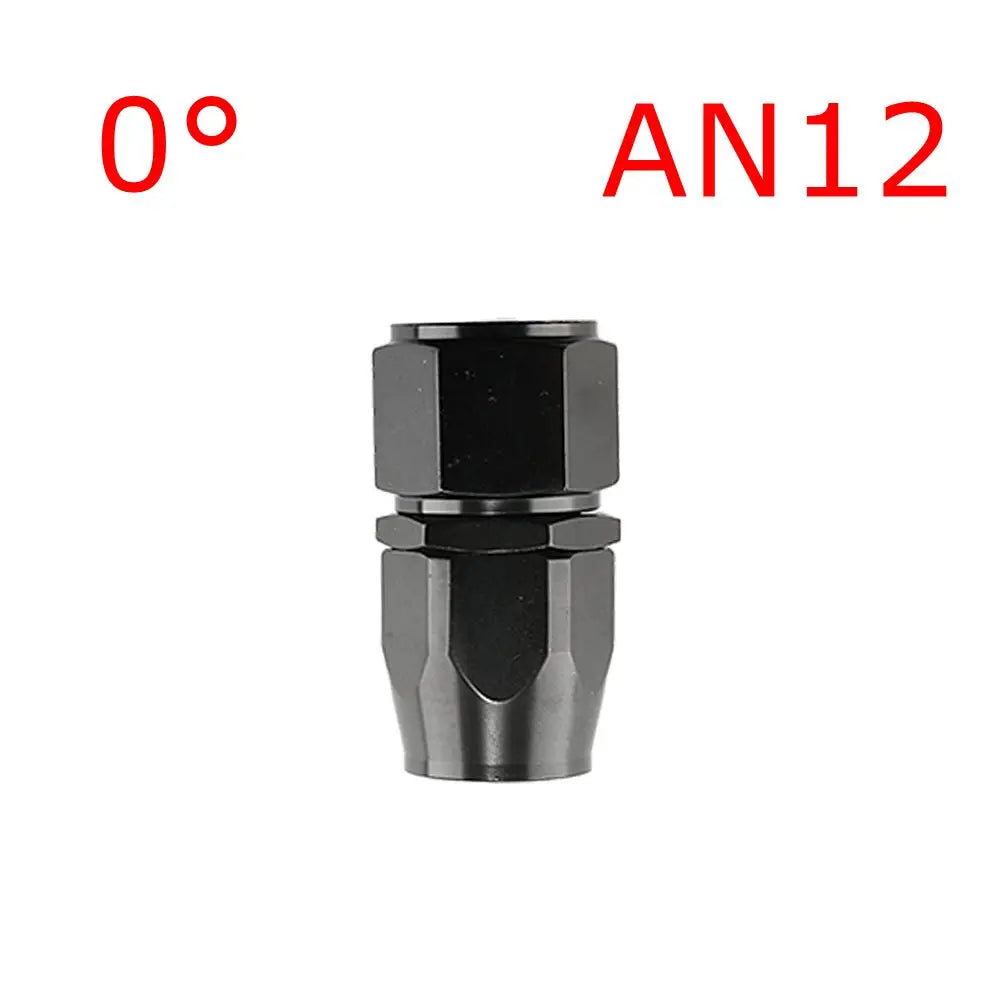

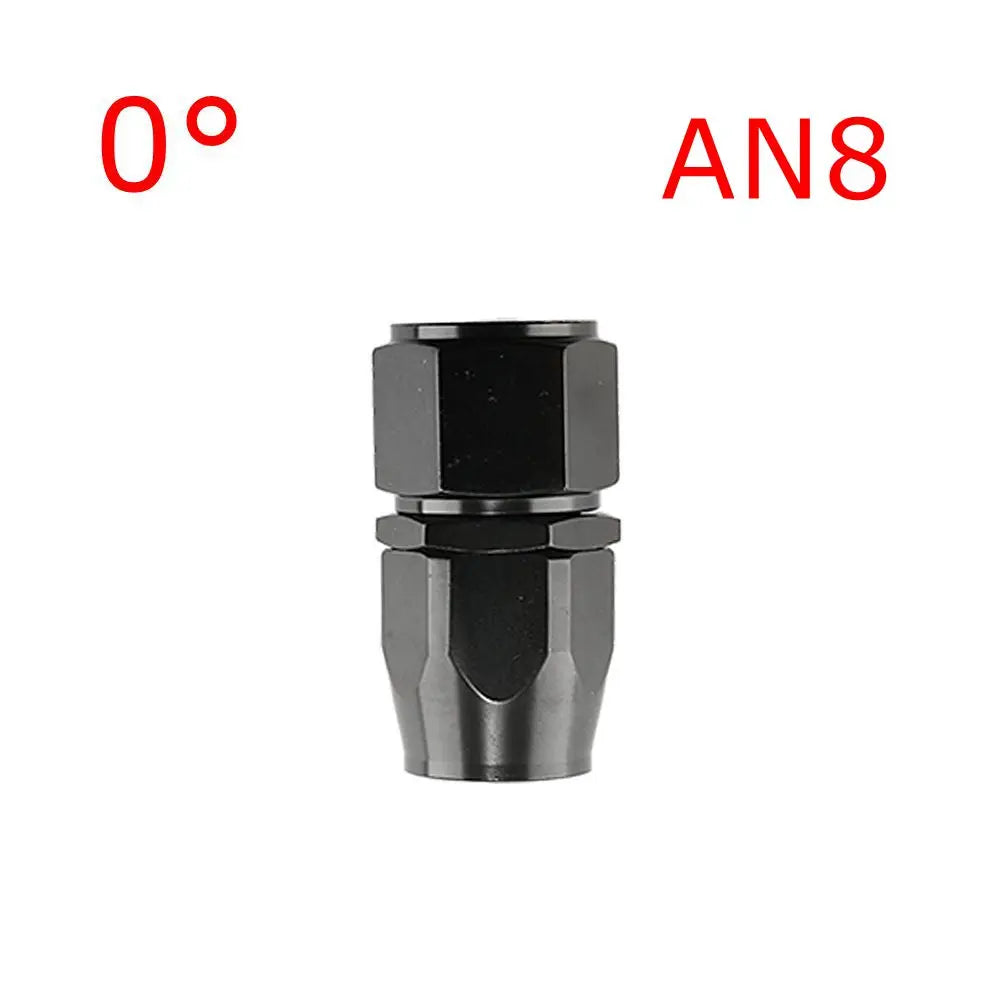

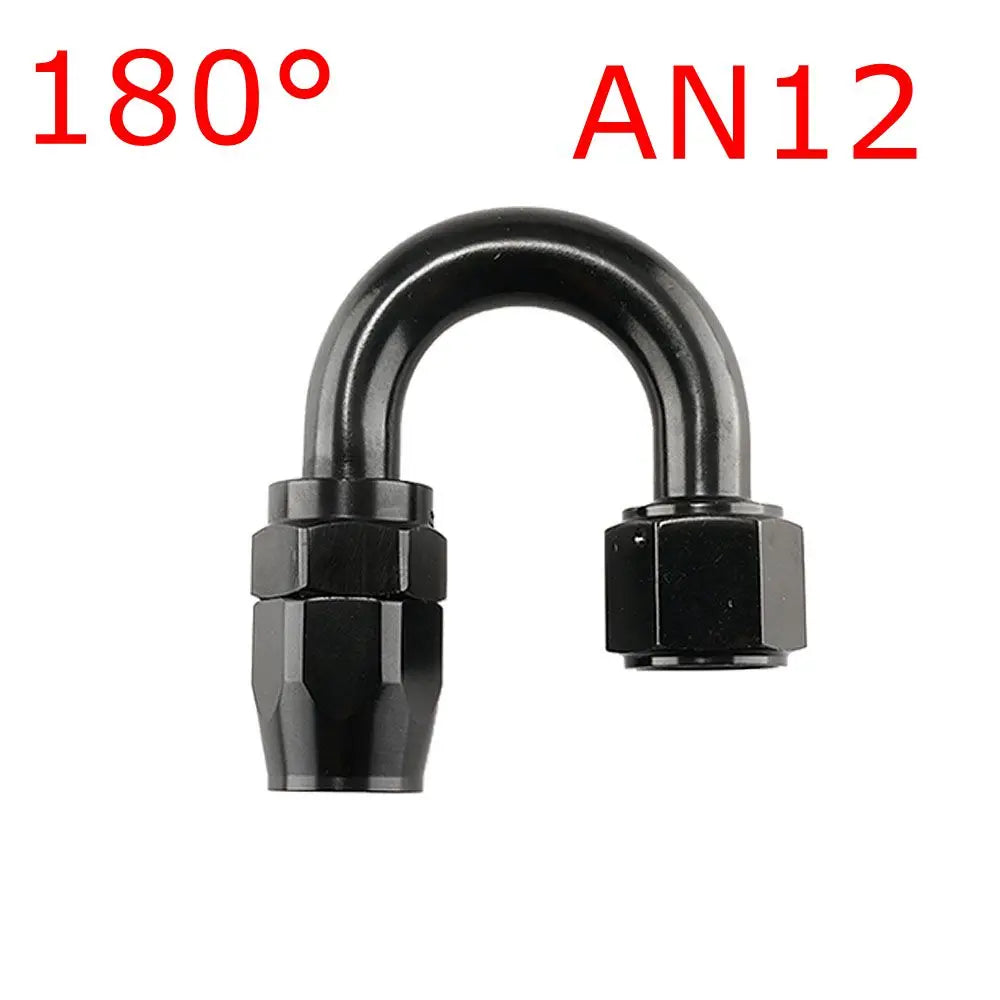

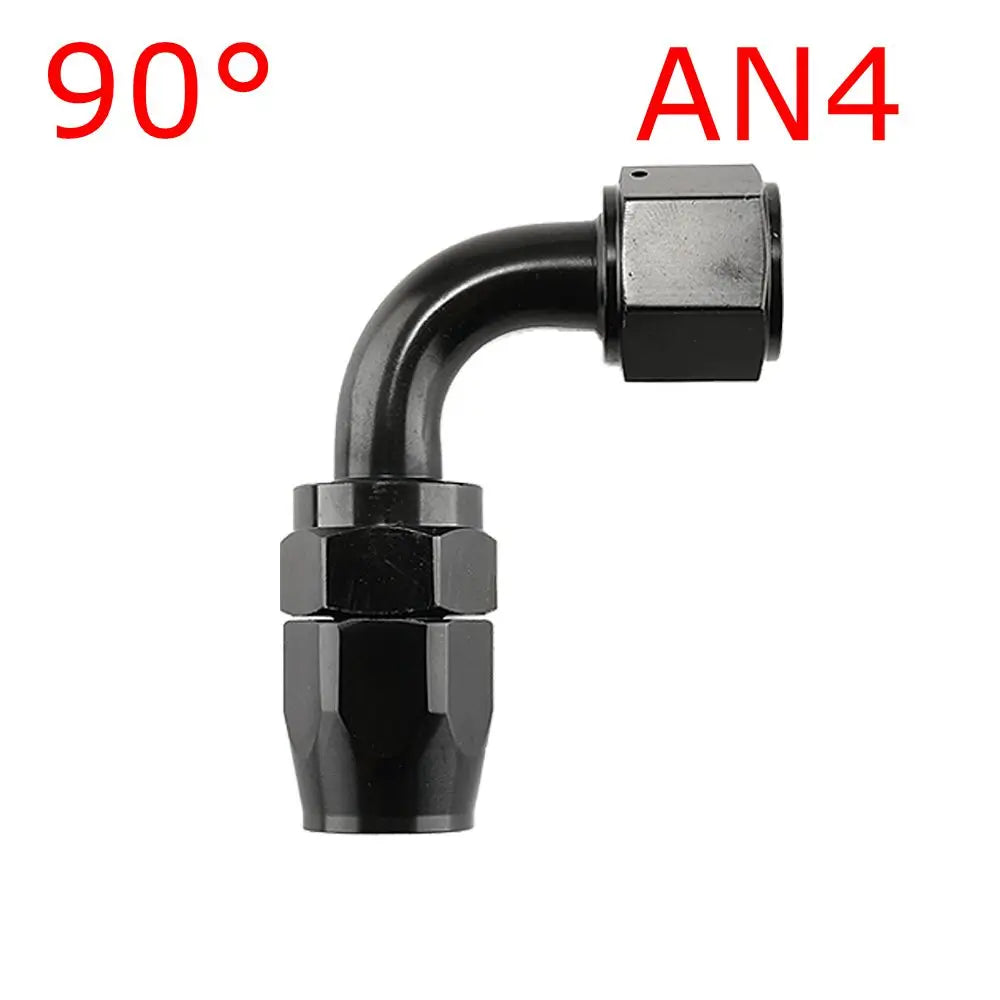

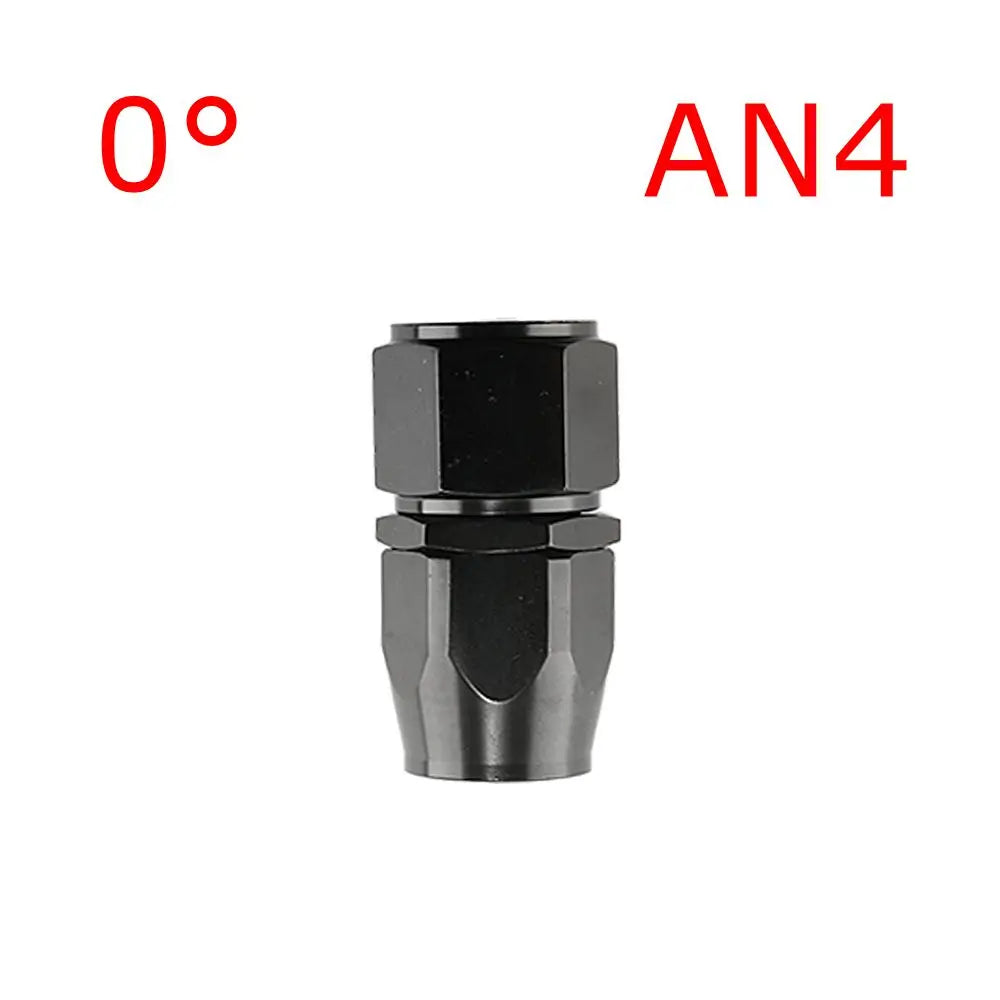

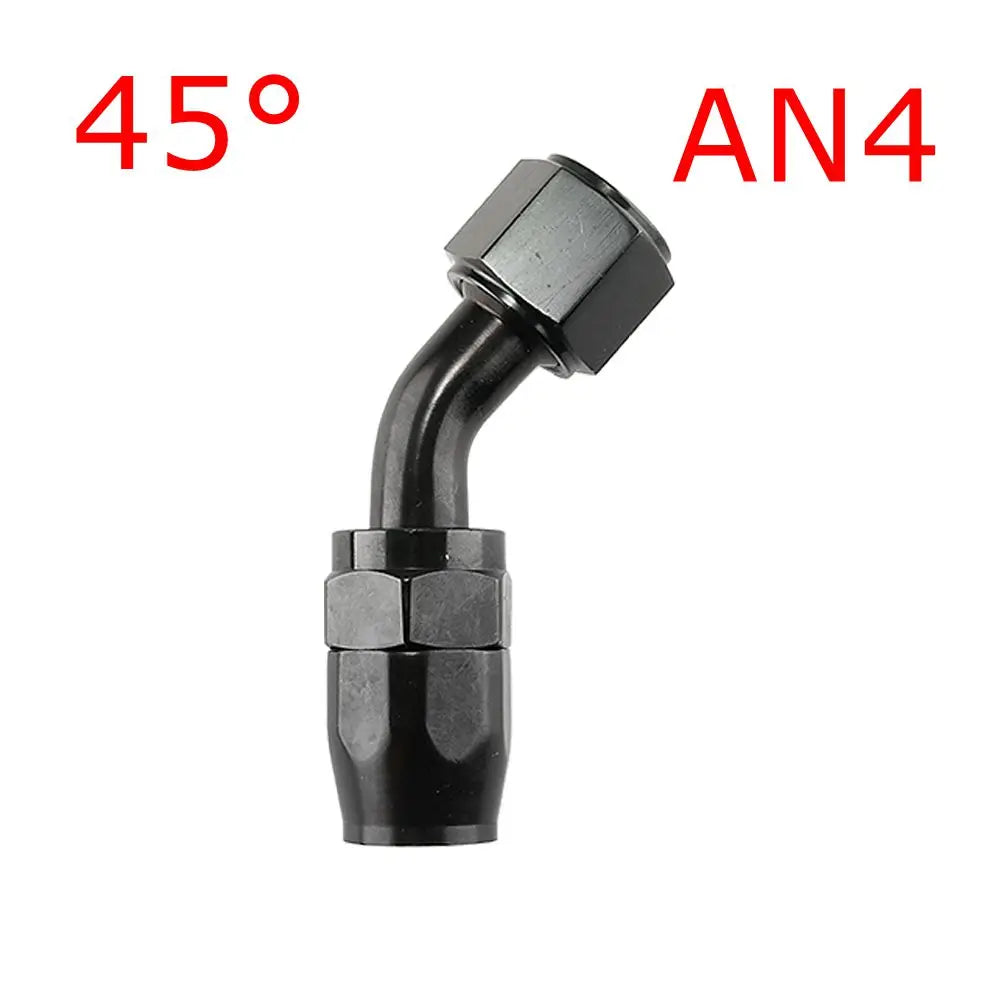

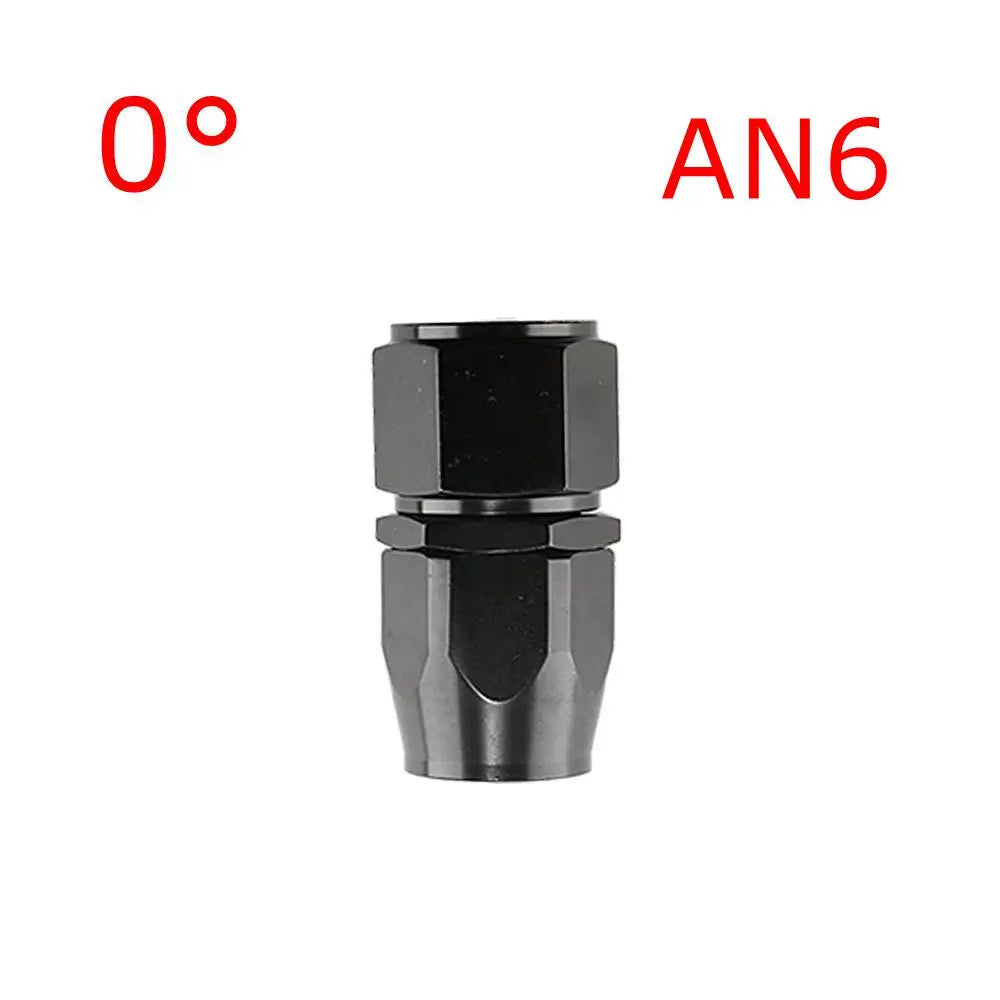

• Angles: straight, 45, 90 and 180 degree

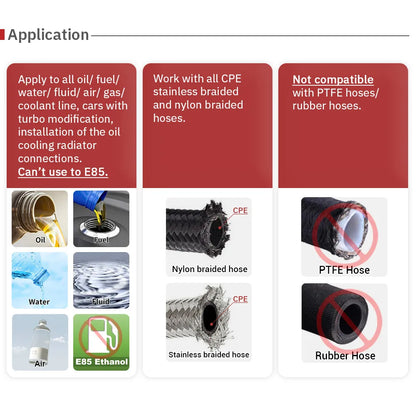

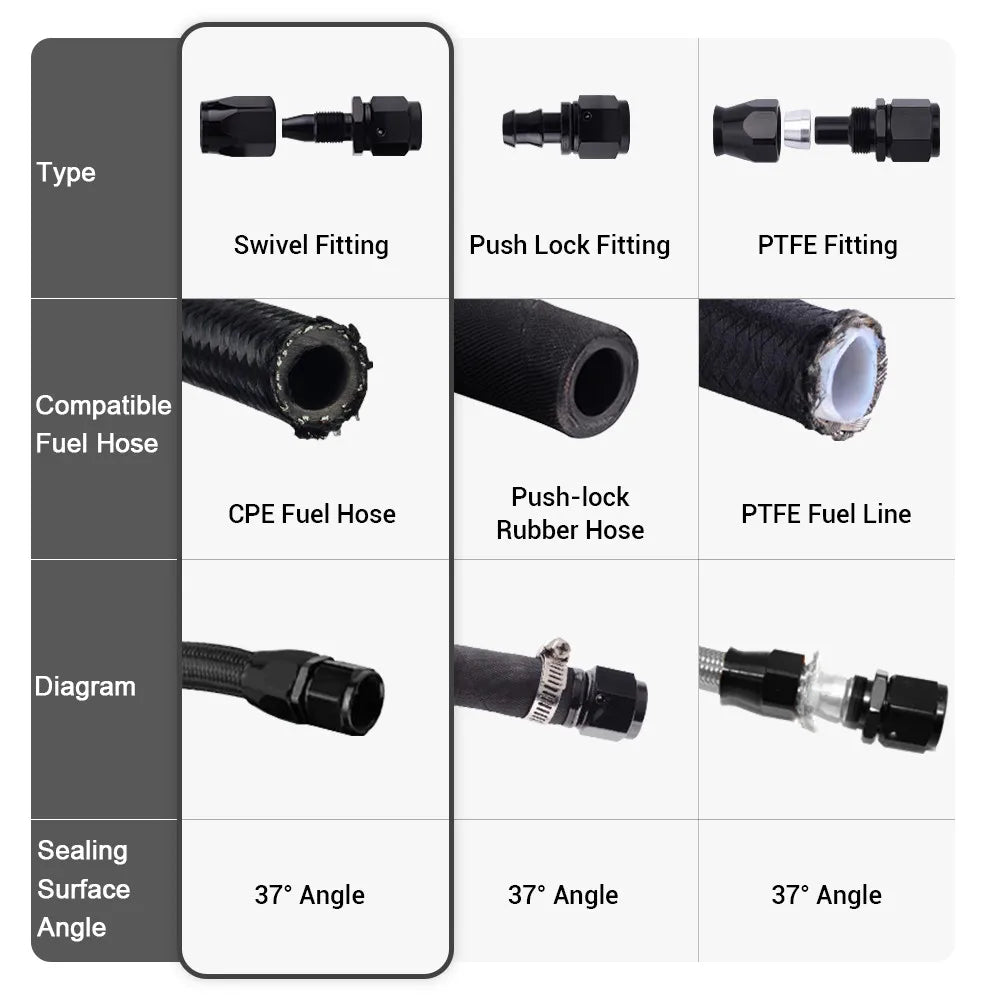

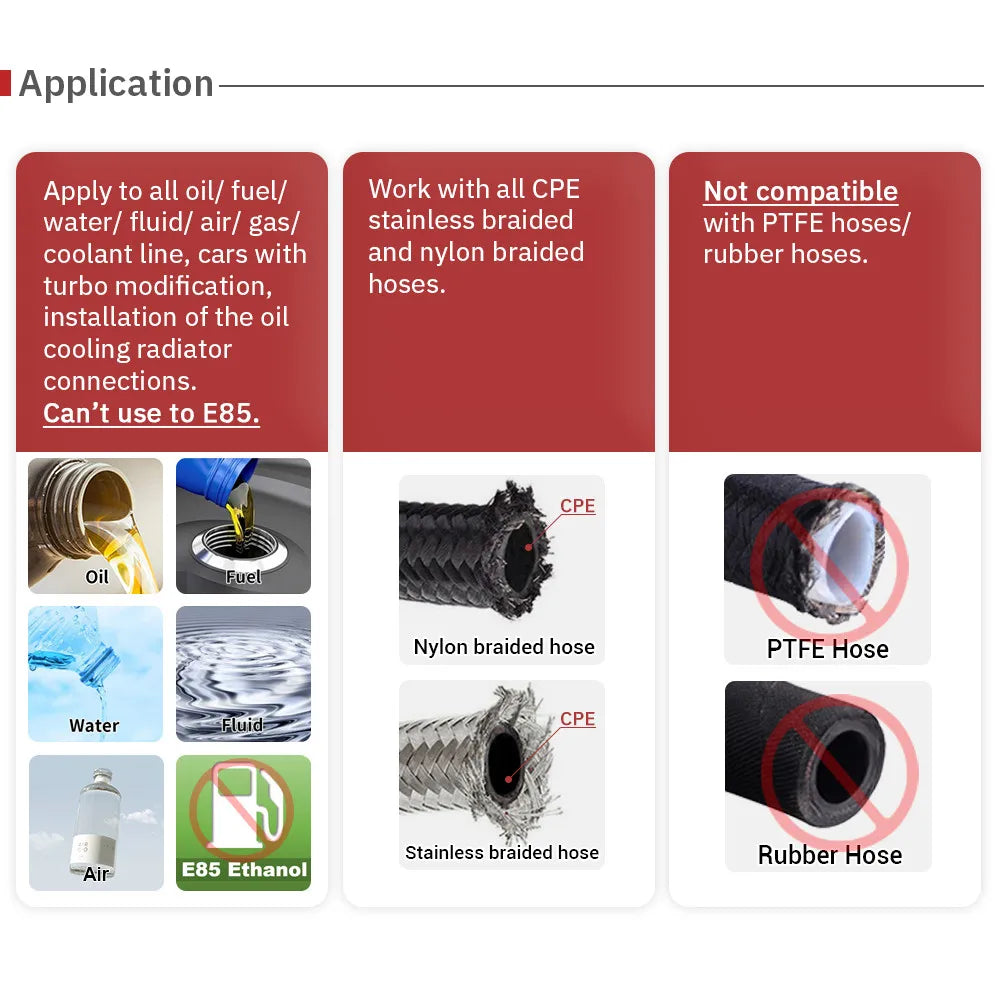

• Suits braided CPE (rubber-lined) hose. For PTFE hose use our PTFE hose ends
• Full swivel, reusable
• Black anodised aluminium, sold individually

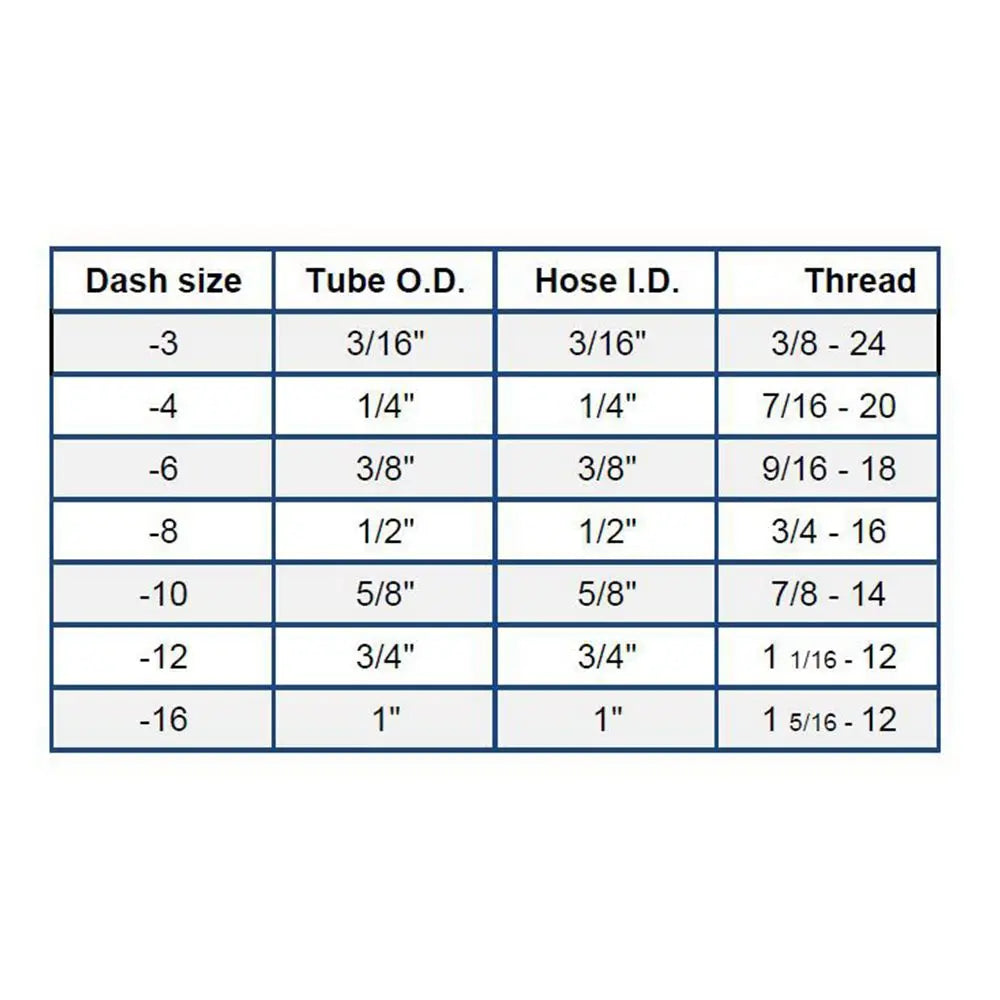

AN size chart

Frequently asked questions

What size is an AN6 fitting? Is 6AN the same as 3/8?
Yes. AN6 (also written -6 or 6AN) suits 3/8" (9.5 mm) hose or tube and uses a 9/16"-18 thread. The dash number is the size in sixteenths of an inch, so AN6 = 6/16 = 3/8".

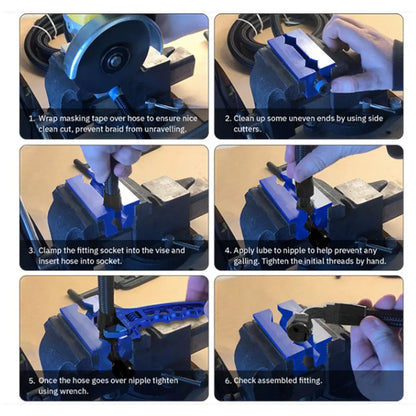

How do you install AN fittings on braided hose?

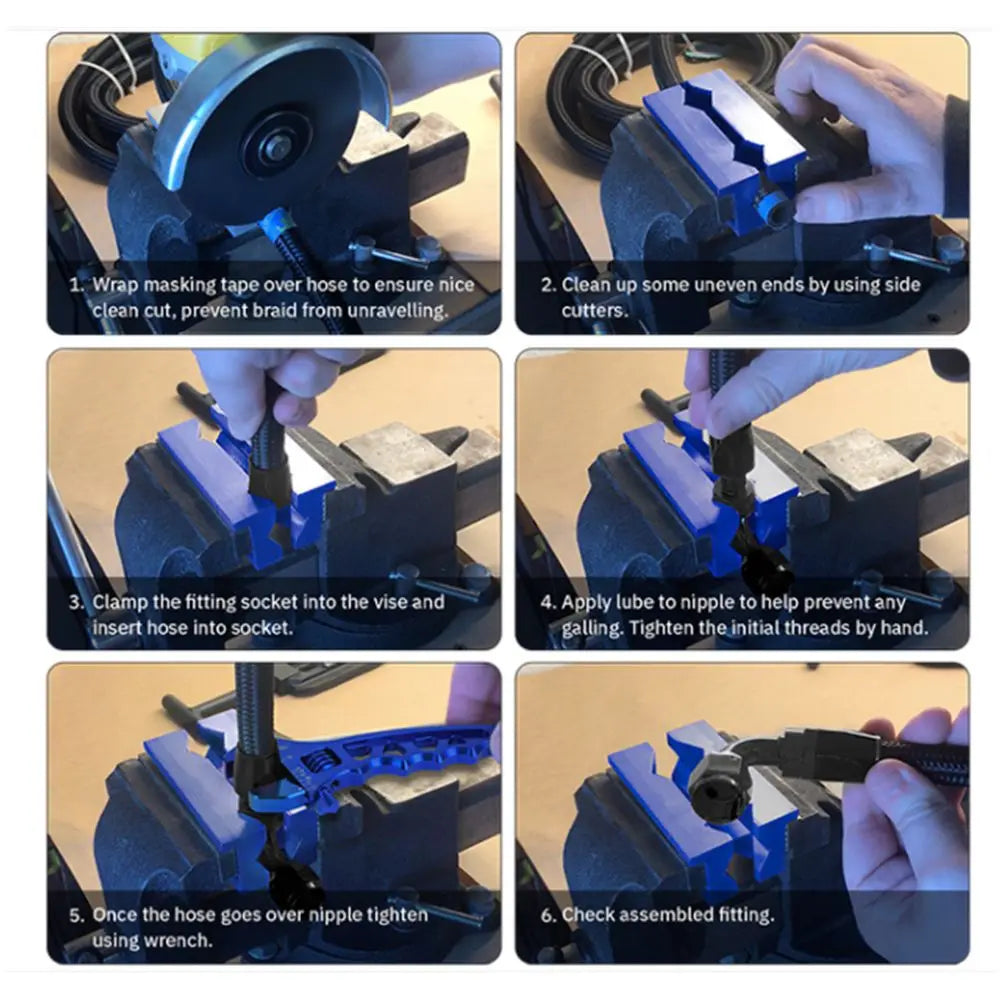

Wrap the hose with tape and cut it with a fine blade or cut-off wheel, push the hose into the socket, then screw the nipple in until it bottoms out against the socket. Oil the threads first and use soft jaws or AN spanners so you do not mark the anodising.

Do AN fittings need thread tape or sealant?
No. The seal is made on the 37 degree flare, not the thread, so keep tape and sealant off the AN side. Only the NPT (tapered pipe) end of an adapter needs sealant.

Can you reuse AN fittings?
Yes, AN hose ends are reusable. Check the flare and threads are clean and undamaged. PTFE hose ends need a new olive if you rebuild them.

How tight should AN fittings be?
Snug them up by hand, then about a quarter turn with a proper AN spanner. Aluminium fittings do not need much. Over-tightening can crack the flare.

What size fuel line do I need for my horsepower?
As a rough guide on petrol EFI: AN6 is good to around 500 hp, AN8 to around 800 hp, AN10 beyond that. E85 needs about 30 percent more fuel, so go up a size if you are running it.

Quality and warranty

• Made in China, precision CNC-machined from solid aluminium, not cheap cast or pot-metal fittings
• Tough anodised finish, clean threads and true 37 degree flares that seal properly
• 2-year repair or replacement warranty against defects in materials and workmanship, on top of your rights under Australian Consumer Law
• Sold and backed by Tucks Performance, an Australian-owned business. Not sure what you need? Send us a message

Delivery: ships direct from our supplier partner, usually 10 to 20 days.
