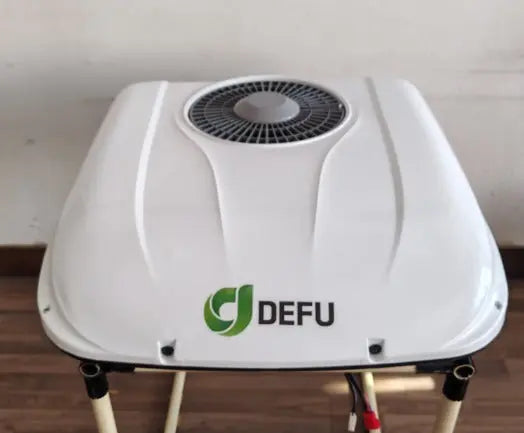

SR4 Rooftop Air Conditioner – 12V/24V for Small Trucks
SR4 Rooftop Air Conditioner – 12V/24V for Small Trucks
Regular price
$1,150.00
Regular price
Sale price
$1,150.00
Unit price
per
Couldn't load pickup availability
Key Features

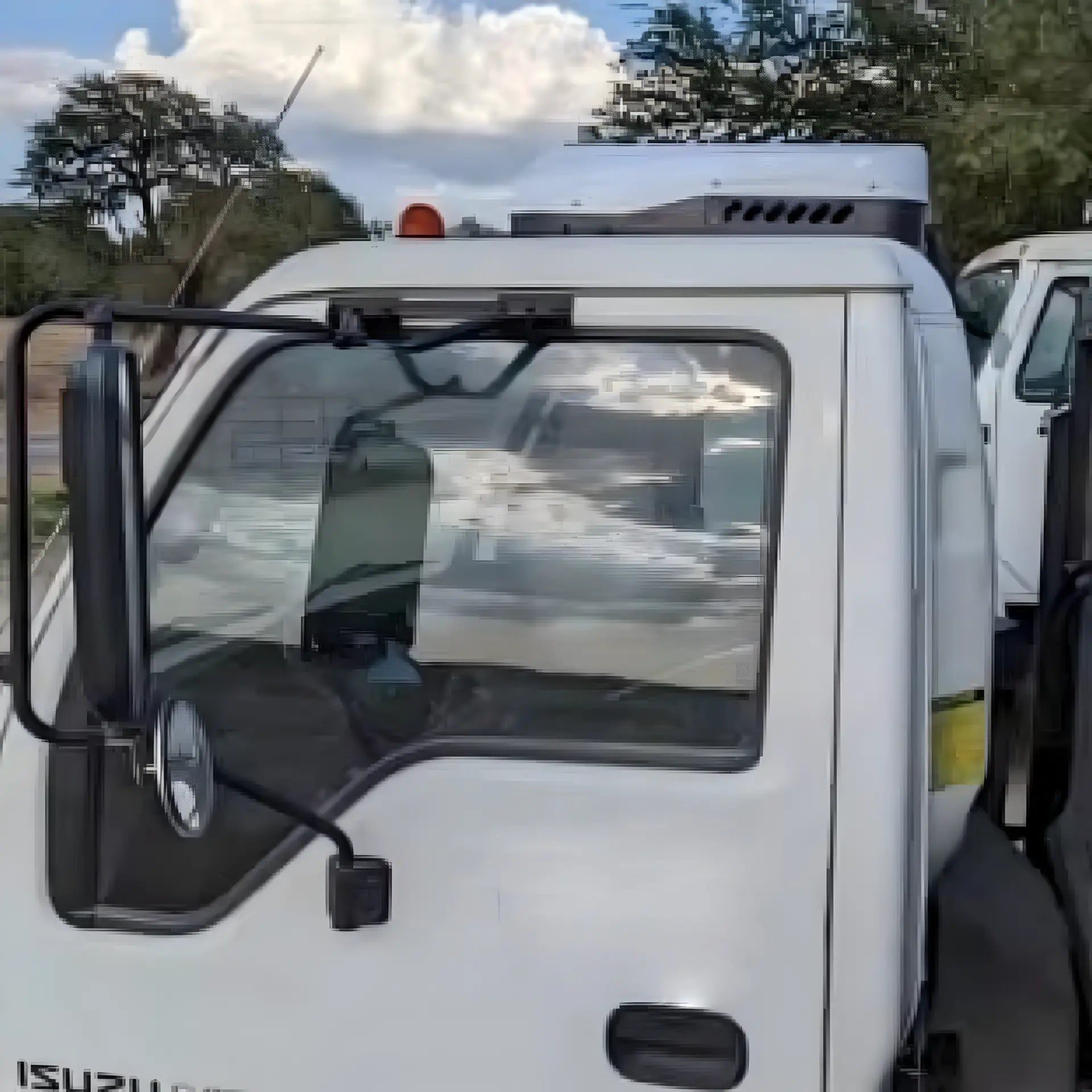

- Low-profile, heavy-duty rooftop air conditioner for cabs with limited space

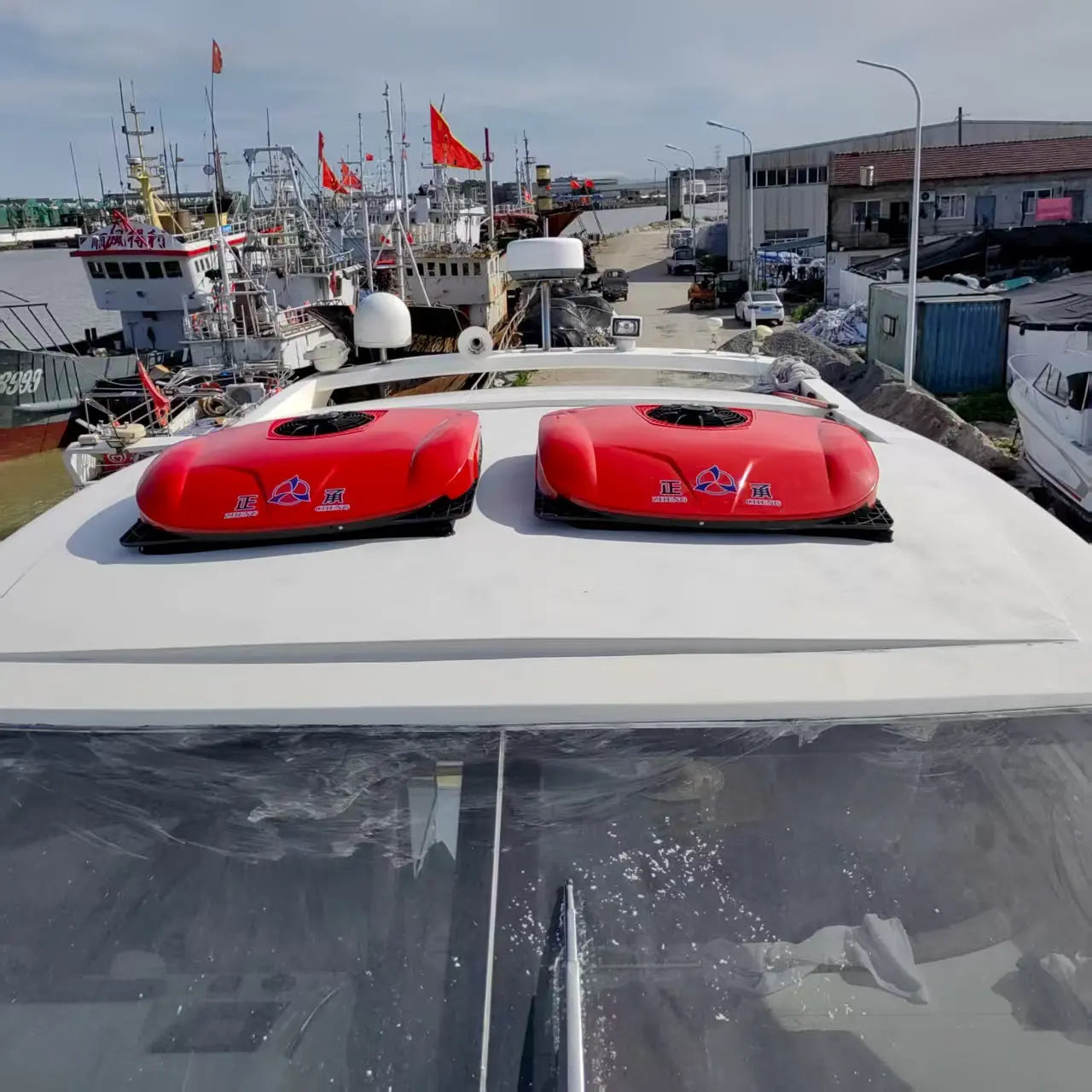

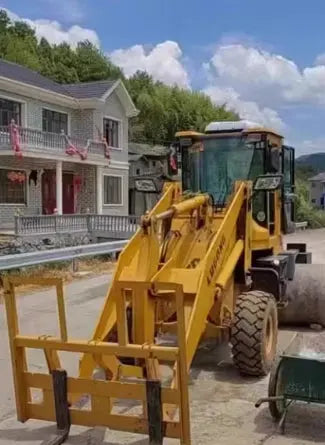

- Perfect for medium trucks, caravans, loaders, campers, bulldozers, excavators, and boats
- Cooling-only unit – designed to provide strong, reliable airflow without engine-driven compressors
- Available in both 12V or 24V versions
- Single high-output fan – compact but powerful air delivery
- Includes adjustable interior vents, swing function, LED lighting, and a full digital control panel
- Variable speed inverter compressor – ultra-quiet while sleeping
- Voltage protection system with low-voltage cutoff and built-in error code diagnostics
- Stainless steel fittings and rugged internals for Aussie conditions
- Can run while driving or parked – perfect for off-grid cooling
Specifications
| Item | 12V | 24V |
|---|---|---|
| Cooling Capacity | 7500–9000 BTU | 9000–10500 BTU |
| Current Draw | 16–75A | 8–35A |
| Rated Power | 500–800W | 200–800W |
| Noise Level | 50–62 dB | |
| Air Flow | 240–450 m³/h | |
| Refrigerant | R134a – not prefilled (requires gas on install) | |
| Compressor Speed | 3000rpm – inverter driven | |
| Fan Diameter | 300mm x1 (single fan) | |

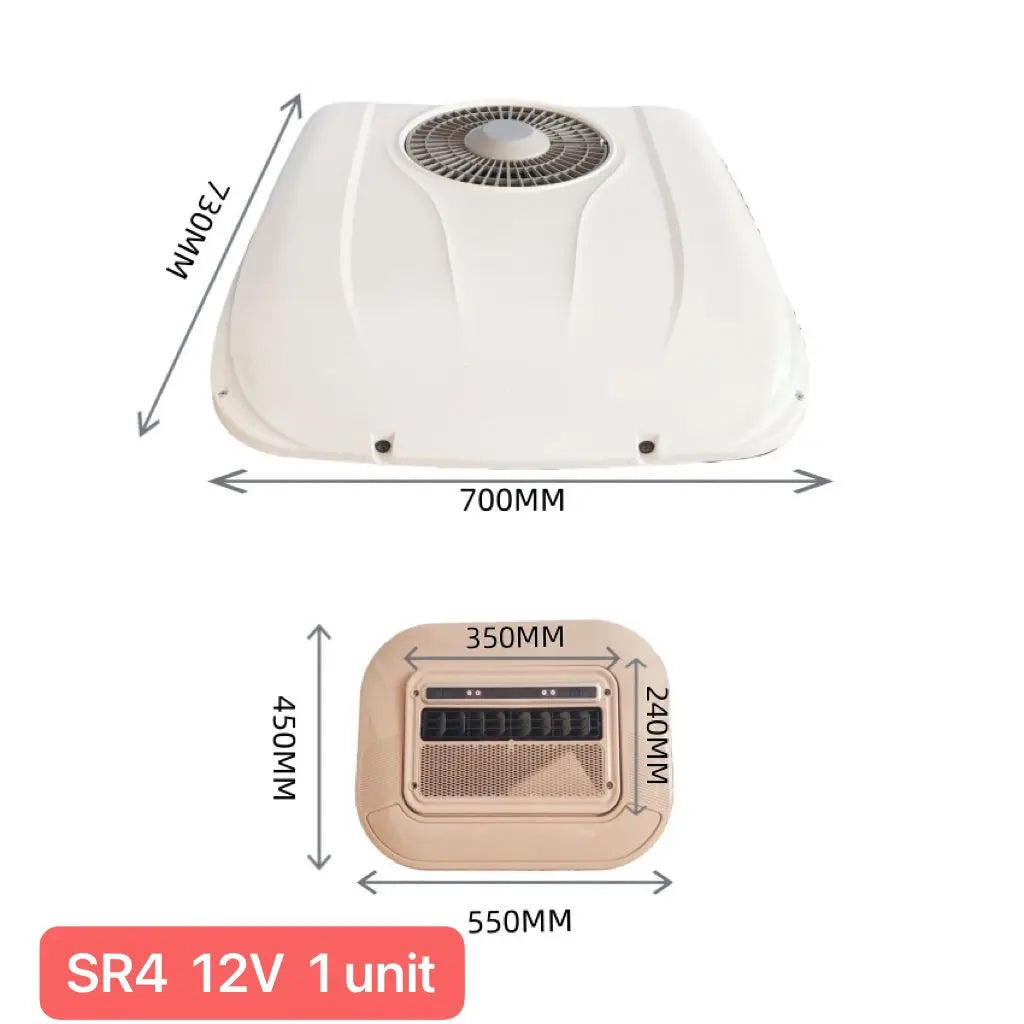

| Outdoor Unit Size | 980×730×170mm | |
| Interior Fascia Size | 850×600mm | |
| Total Weight | Approx. 36kg | |
| Warranty | 3 Years | |

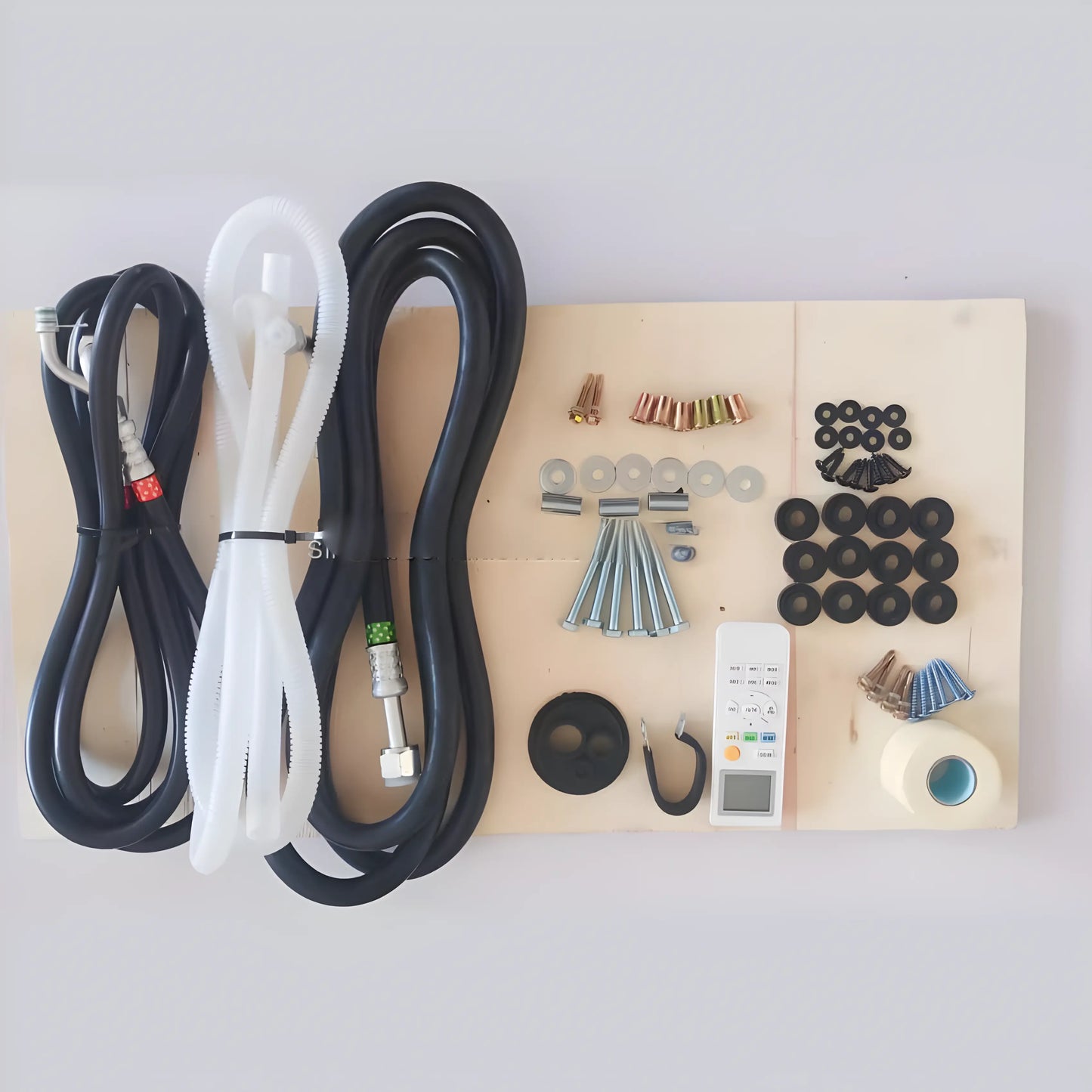

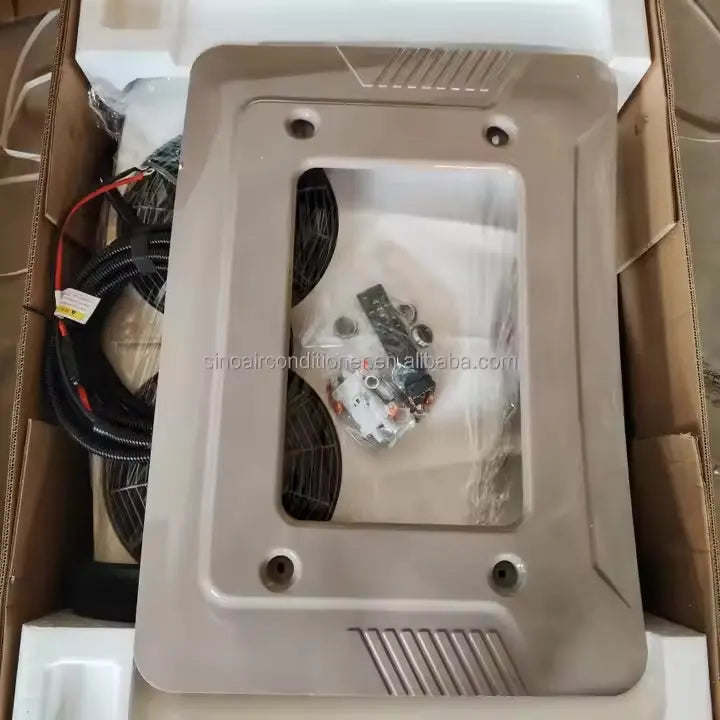

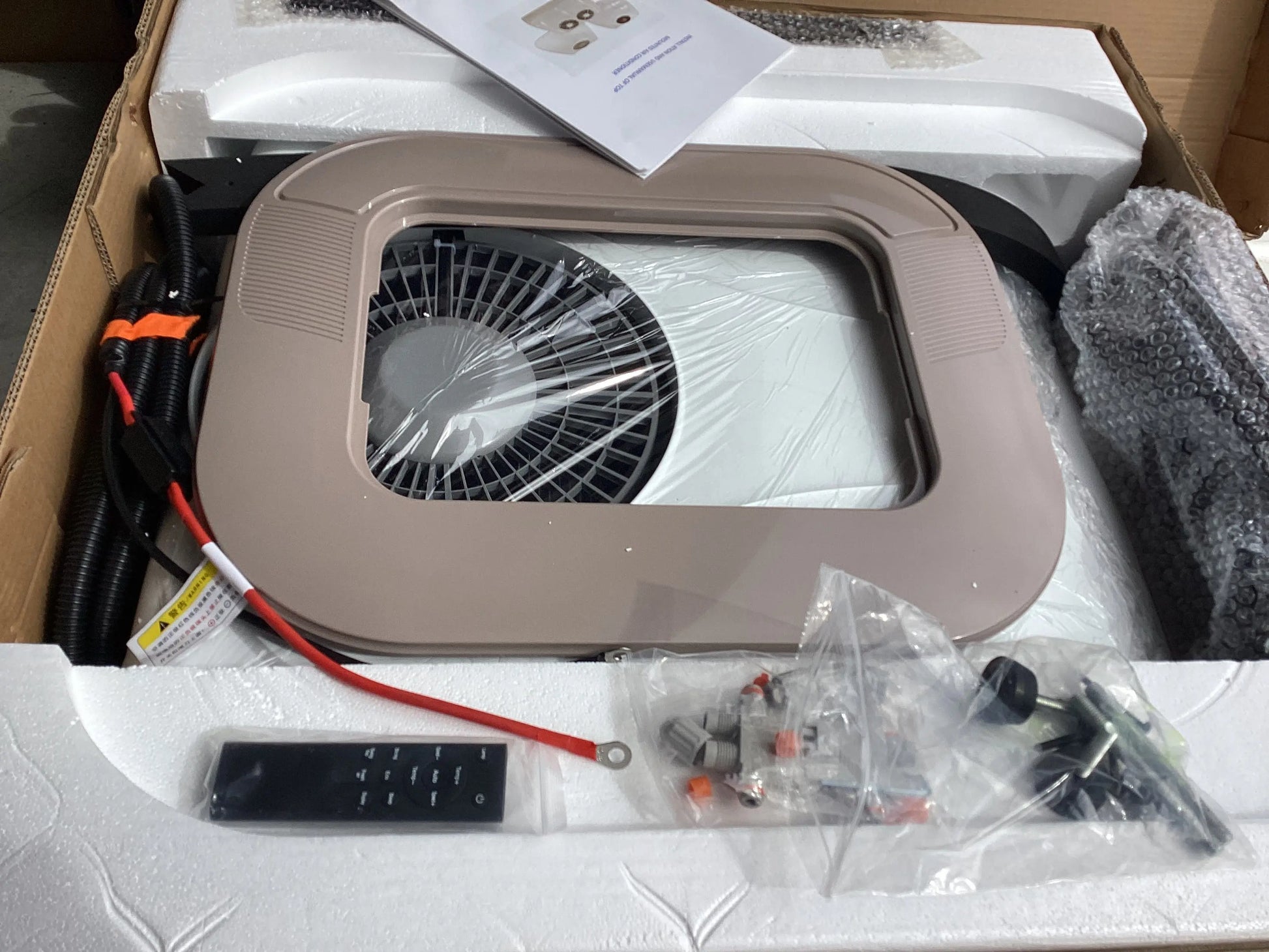

What’s Included
- SR4 Rooftop A/C Unit (12V or 24V as selected)

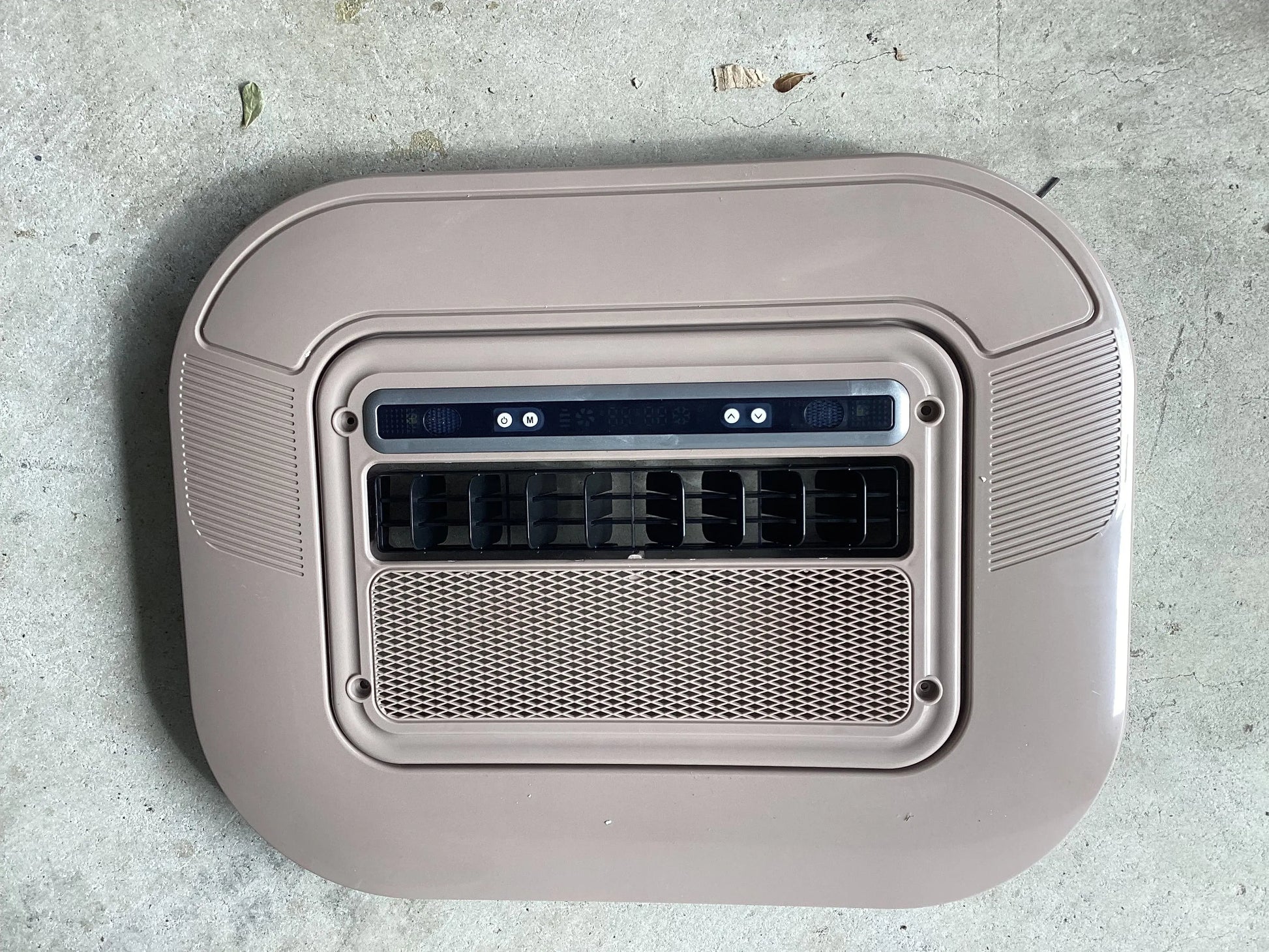

- Interior panel with adjustable vents, swing function, and LED light

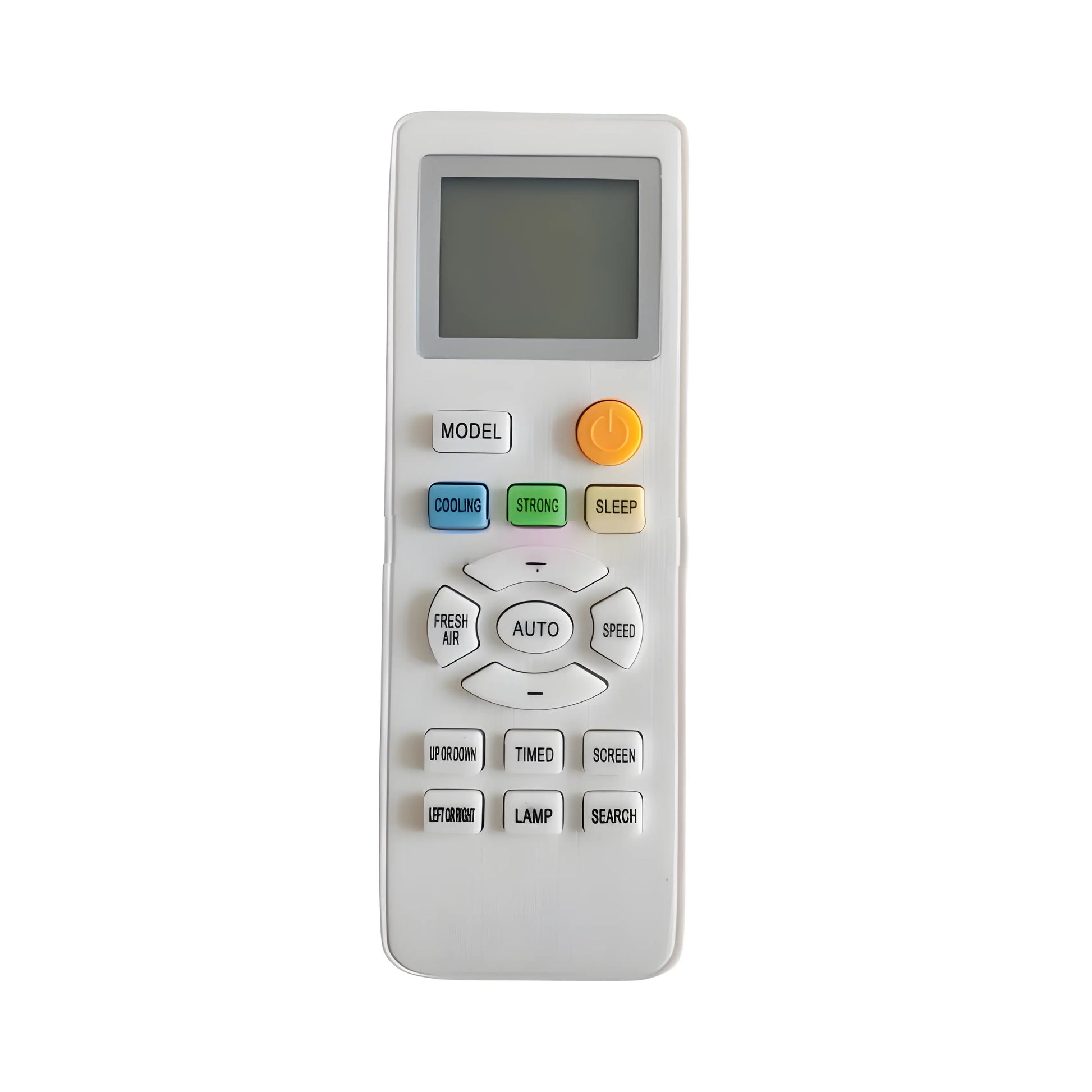

- Digital control panel and remote control
- 5.5m pre-wired power harness
- Internal fascia frame & mounting hardware
- Roof sealing gasket for waterproof install
Notes
- ⚠️ Unit does not come pre-gassed – refrigerant (R134a) must be added during installation
- No heating function – cooling only
- Not designed for engine bay or under-dash use
- Fully pre-wired – only 3 wires to connect

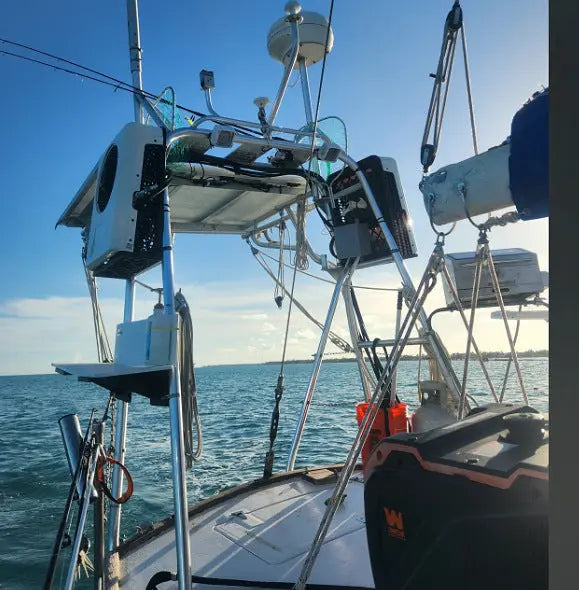

- Can be used on boats and marine applications with appropriate power setup
- Mounts from inside the cab – easy one-person install
Payment & Support
We ship Australia-wide via TNT Express. Pickup available by appointment from our office in Pimpama, QLD.
Installation not provided in-house – but we recommend using Airtasker to find a local mobile installer. The contractor is only paid once you're satisfied. You can read reviews, message installers directly, and stay in control of the process.
Need advice? We’re always happy to chat – whether you're fitting out a truck, caravan, or heavy machine. Every build is different, and we’ll help guide you.
