Unlock the Power of Your Winch with Our 12V 24V Solenoid Relay Controller

SPECIFICATIONS

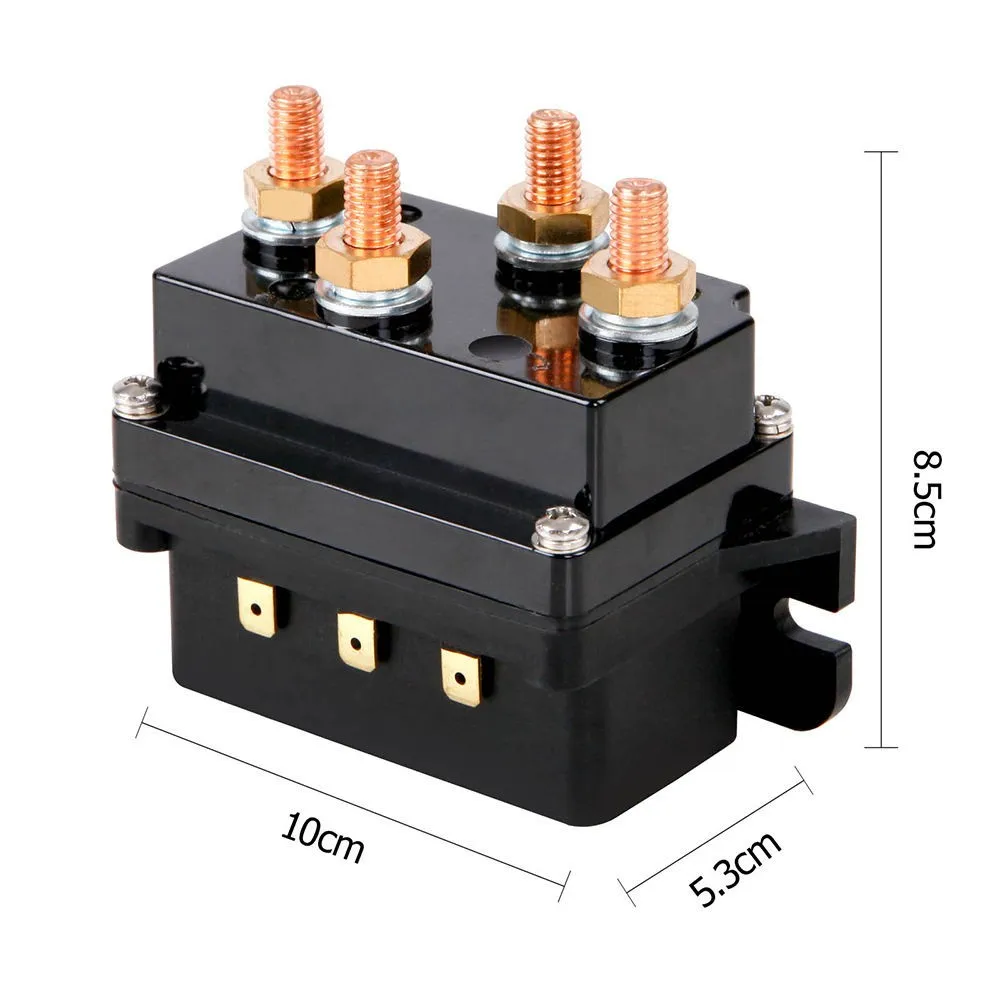

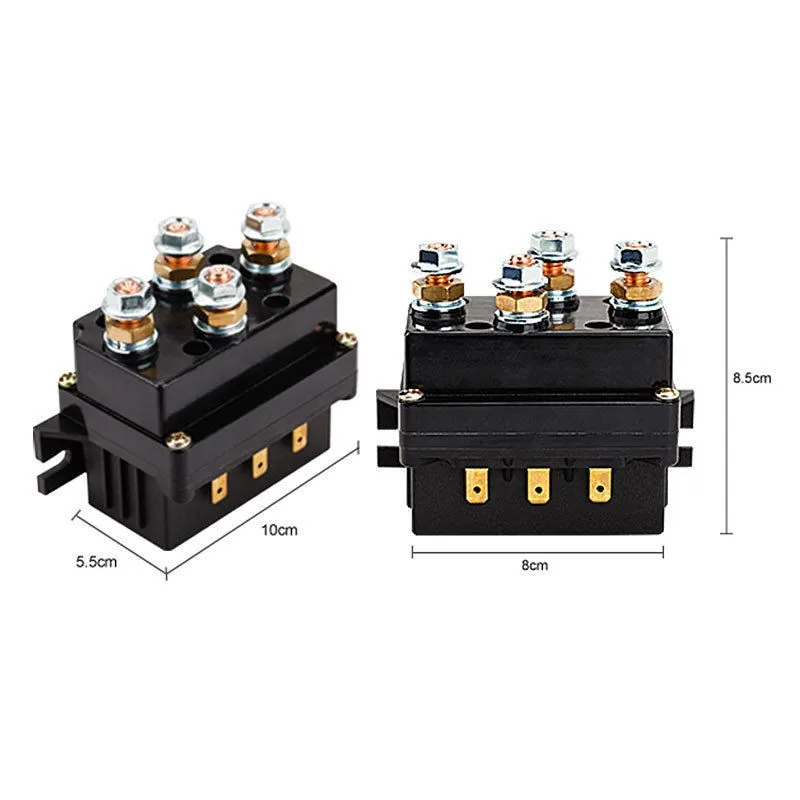

Item Height: 8.5cm

Item Type: Car Relays

Item Weight: 0.8kg

Item Diameter: 0inch

OEM NO.: Winch Relay

Material Type: METAL & PLSATIC

External Testing Certification: ce

Item Length: 10cm

Special Features: WINCH RELAY

Item Width: 5.2cm

Model Name: Universal

12V 24V Winch Solenoid Relay Controller 500A DC Switch 4WD 4x4 Boat ATV Control

---------------------------------------------------------------------------------------------------------------------------------

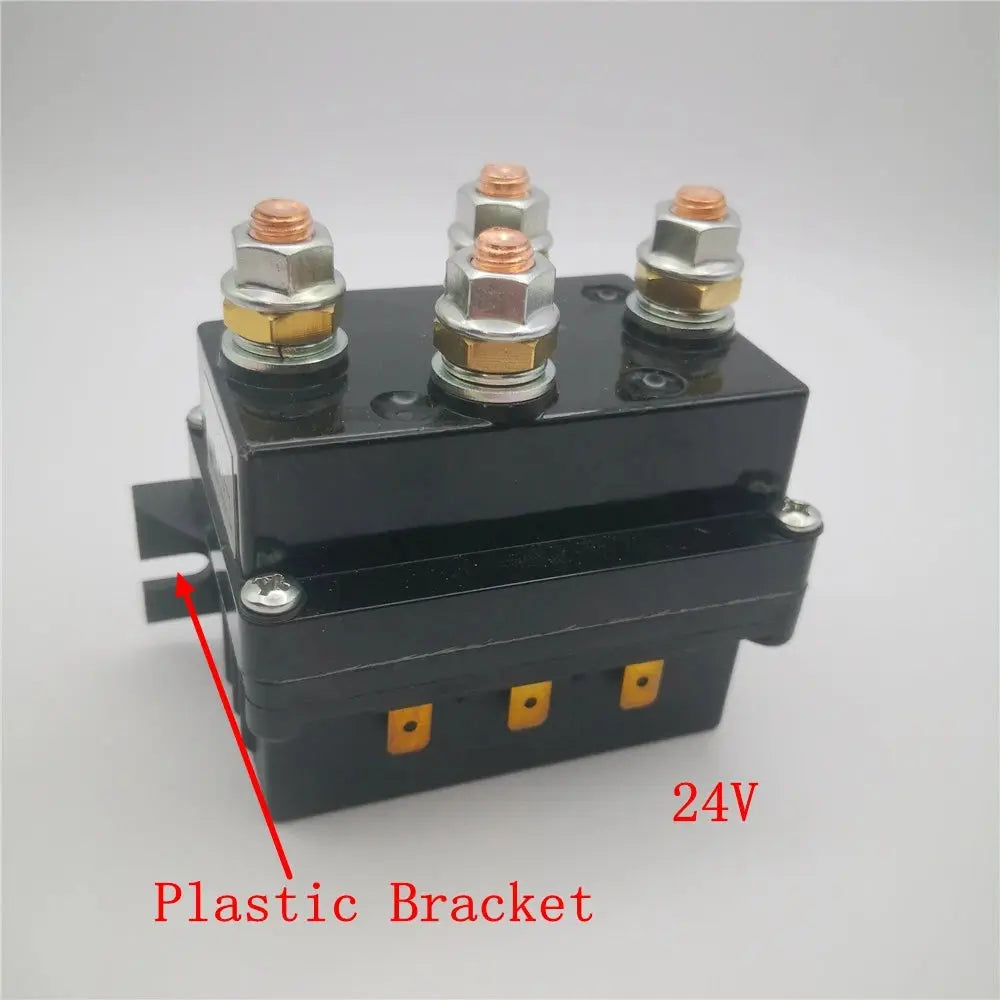

Metal bracket or plastic bracket send random!!!

---------------------------------------------------------------------------------------------------------------------------------

Features

• Durable 500 Amp 12V Winch Solenoid

• Sealed and Corrosion Resistant

• Solid heavy duty construction

• Wireless remote compatible

• Solid heavy duty construction

• Suitable 9500lbs-17000lbs - Series Wound and Permanent Magnet

Specification

• Coil rated voltage :6-110V DC

• Operating power :15W

• Contact circuit voltage and loading current:80V DC Max 250V AC 500A

• Mechanical life :100,000Ops

• Electrical life :50,000Ops

• Environment temperature :-40°C - 85°C

• Frequency :10Hz-200Hz

• Acceleration :≤3.5g

• Speed : 60-100 per min

• Operation regulation :Continue

• Installation direction :Random

What is a Winch Solenoid Relay?

A winch solenoid relay serves as a crucial component in the operation of winches, allowing them to function efficiently. It acts as a high-current switch that directs power from the battery to the winch motor. With a robust capability of 500A, this DC switch seamlessly handles heavy loads and ensures your winch operates smoothly. That means, whether you're pulling a vehicle out of a tough situation or lifting heavy materials, the relay stands strong to withstand the pressure and deliver performance.

Key Benefits of 12V 24V Winch Solenoid Relay

This relay is designed to work with both 12V and 24V systems, making it versatile for various applications. Because it boasts a current rating of 500A, it can handle extreme demands without overheating. The installation process is straightforward, clearly labeled terminals simplify connecting the wiring, and this ease of installation is a major selling point. So, whether you are a professional or a DIY enthusiast, you'll find that this relay is user-friendly to get your winching tasks done effectively.

Durability and Reliability of the Relay

Durability is a hallmark of the 12V 24V winch solenoid relay controller. Constructed with high-quality materials, it is built to last even in harsh conditions. The weatherproof design protects it from water and dust, ensuring it remains operational in rugged environments. It’s essential to have reliable components, especially when working under challenging conditions. Because this relay has proven longevity, you’ll have peace of mind knowing it won’t fail when you need it the most. Investing in a quality solenoid relay is not just about performance; it’s about ensuring safety and reliability in every use.
