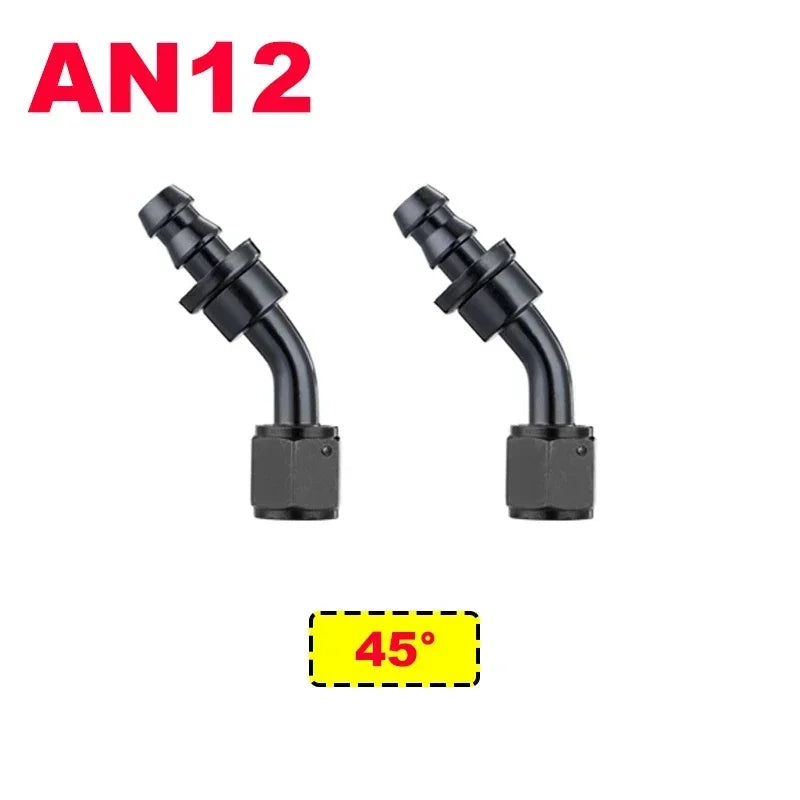

Push Lock Hose Fittings AN4 AN6 AN8 AN10 AN12, Straight 45 90 180 Degree, 2 Pack
Push Lock Hose Fittings AN4 AN6 AN8 AN10 AN12, Straight 45 90 180 Degree, 2 Pack
Regular price
$19.99
Regular price
$0.00
Sale price
$19.99
Unit price
per
Tax included.
Couldn't load pickup availability

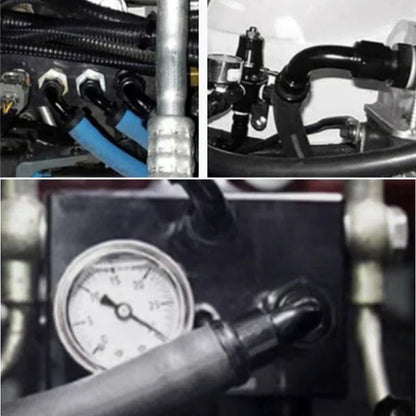

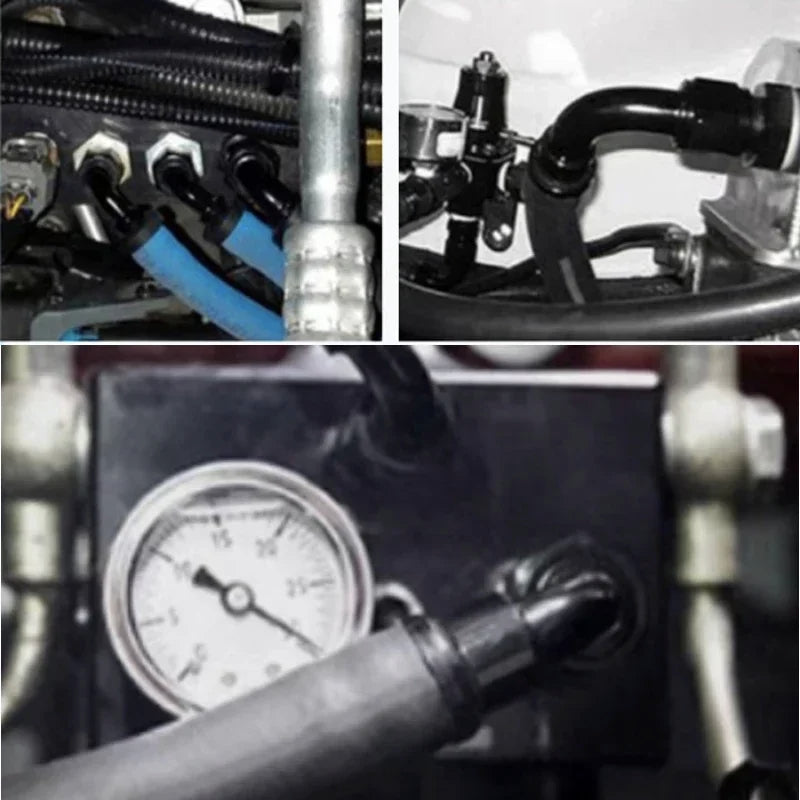

No clamps, no cutting braid. Push the hose on and you are done. Ideal for breathers, vacuum lines, catch cans, low-pressure oil and fuel returns and transmission lines.

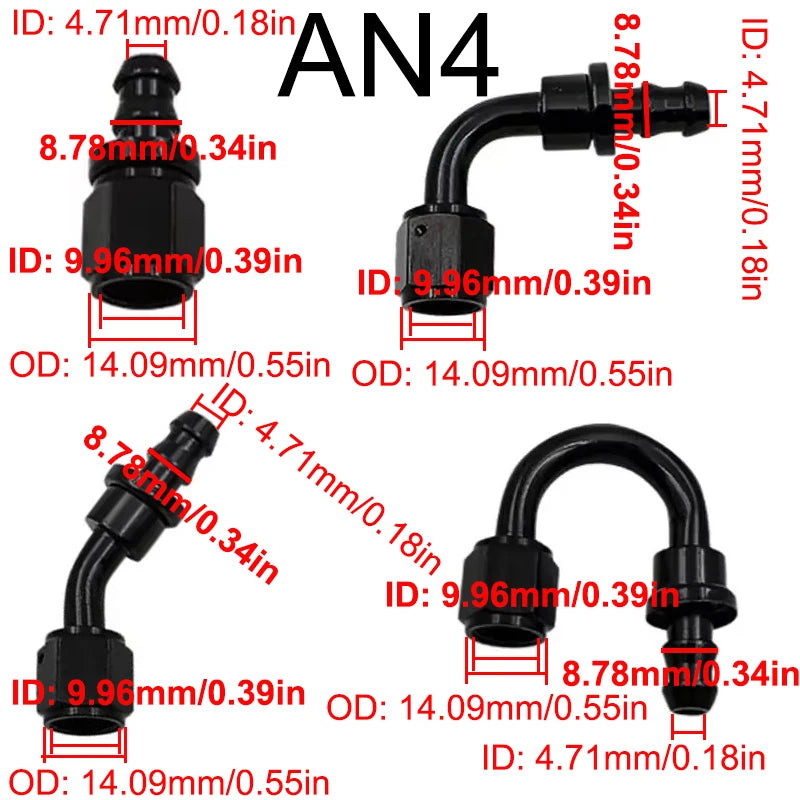

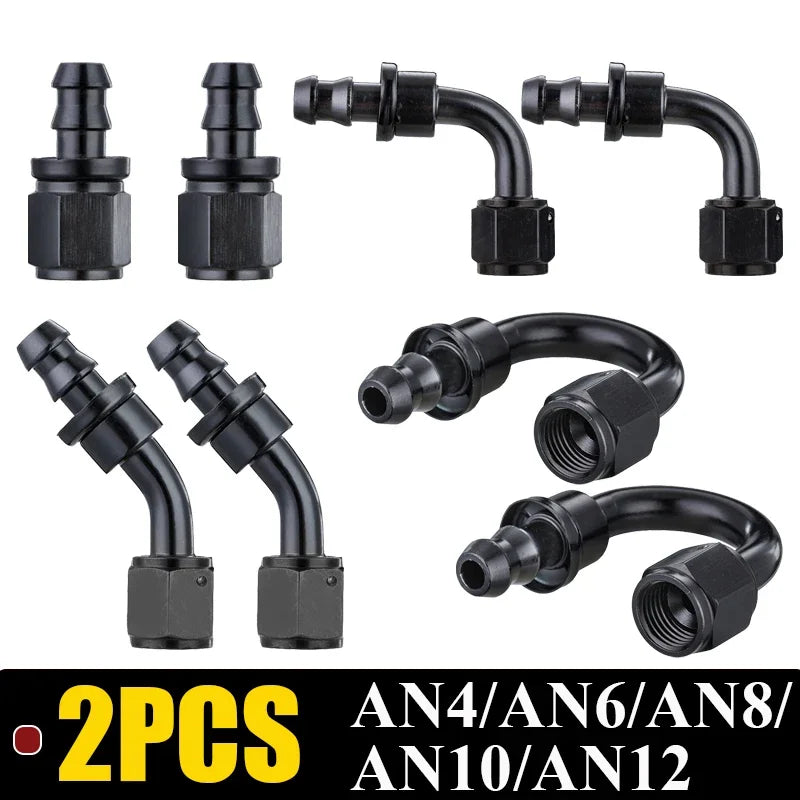

- Sizes: AN4, AN6, AN8, AN10, AN12

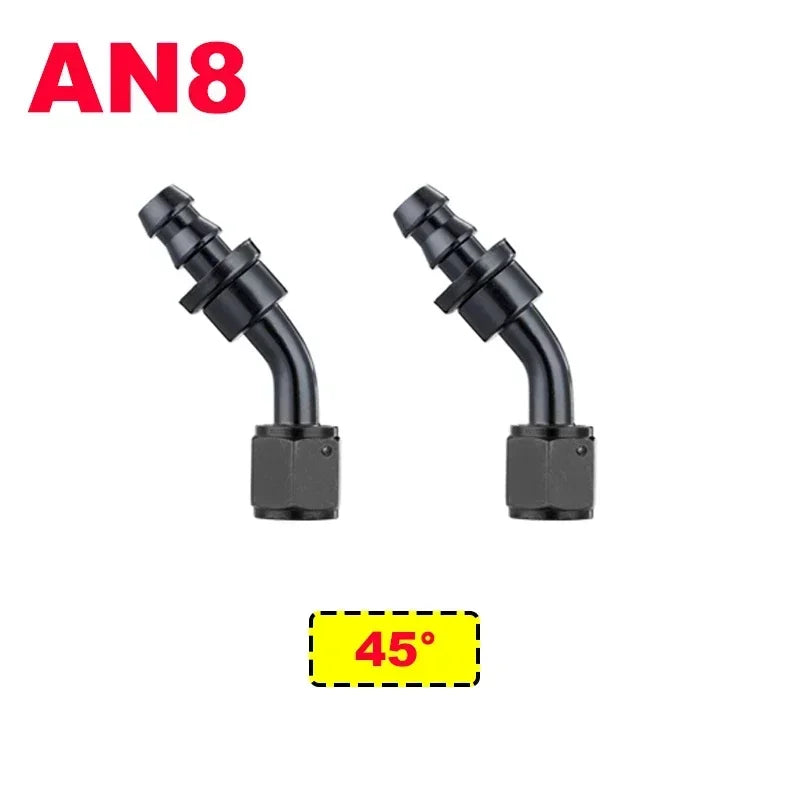

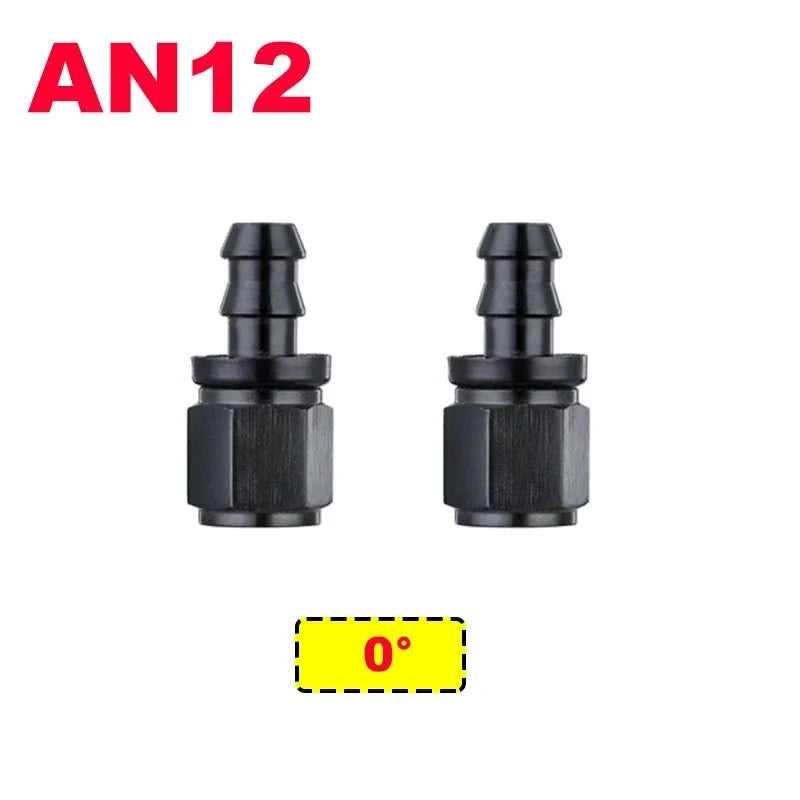

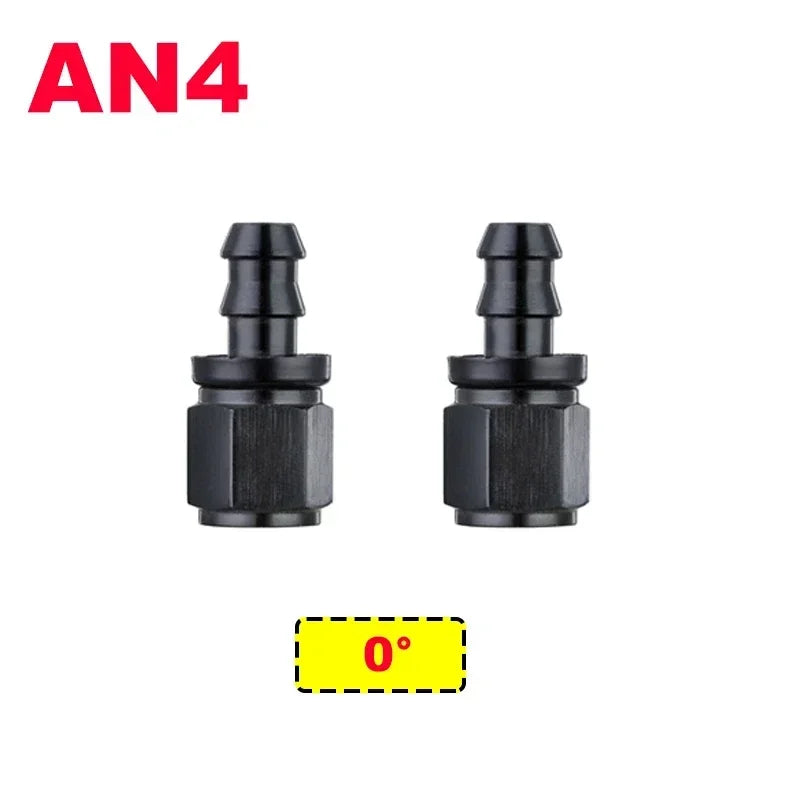

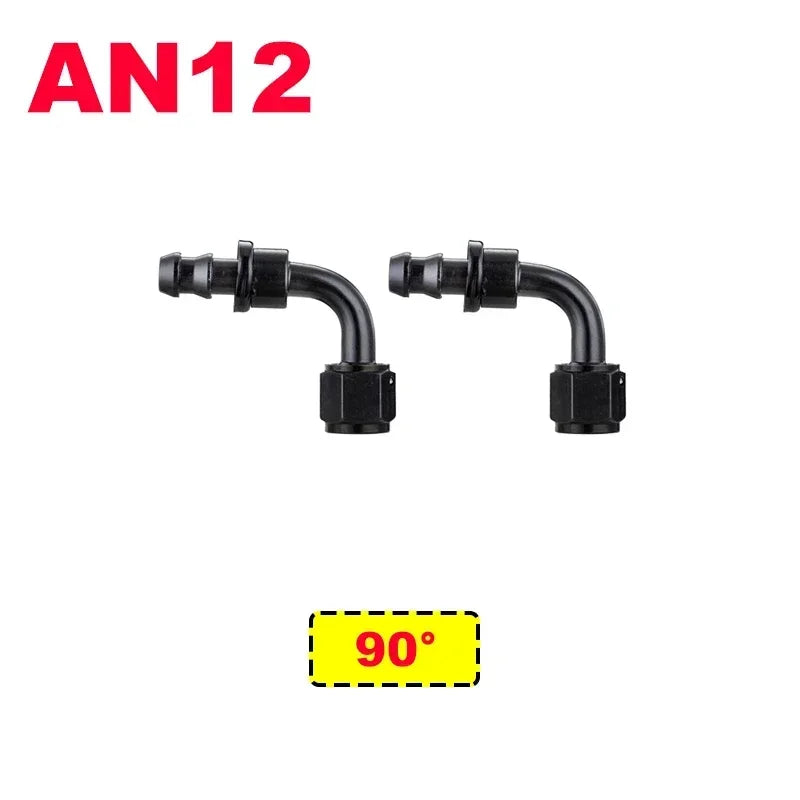

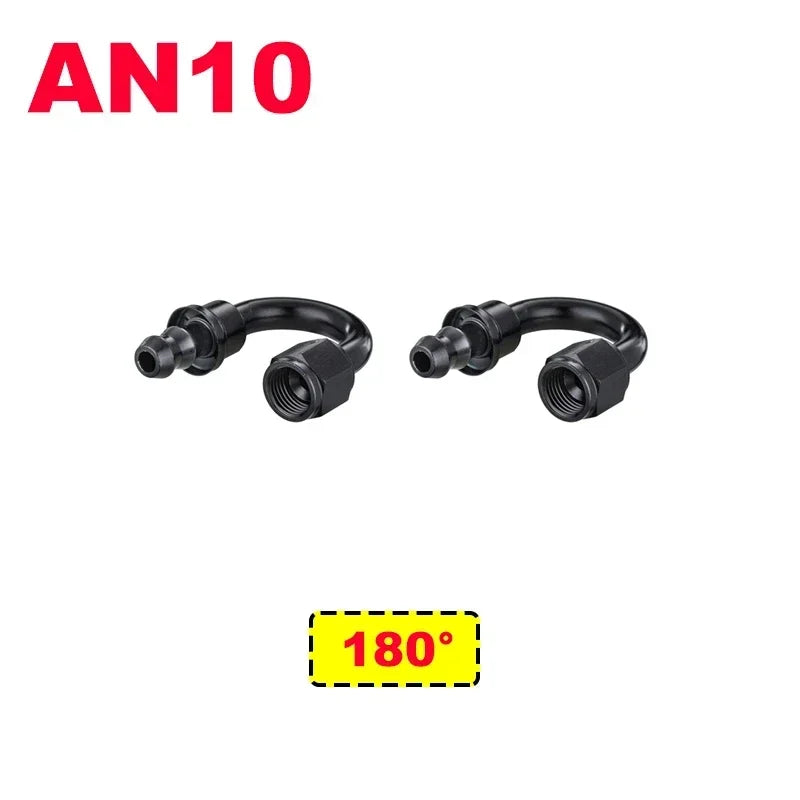

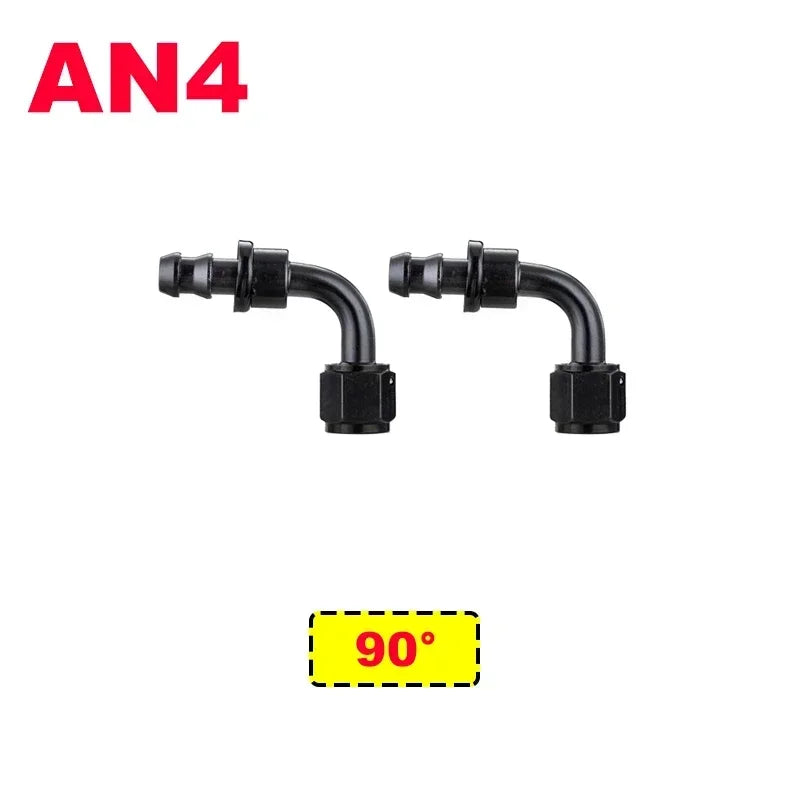

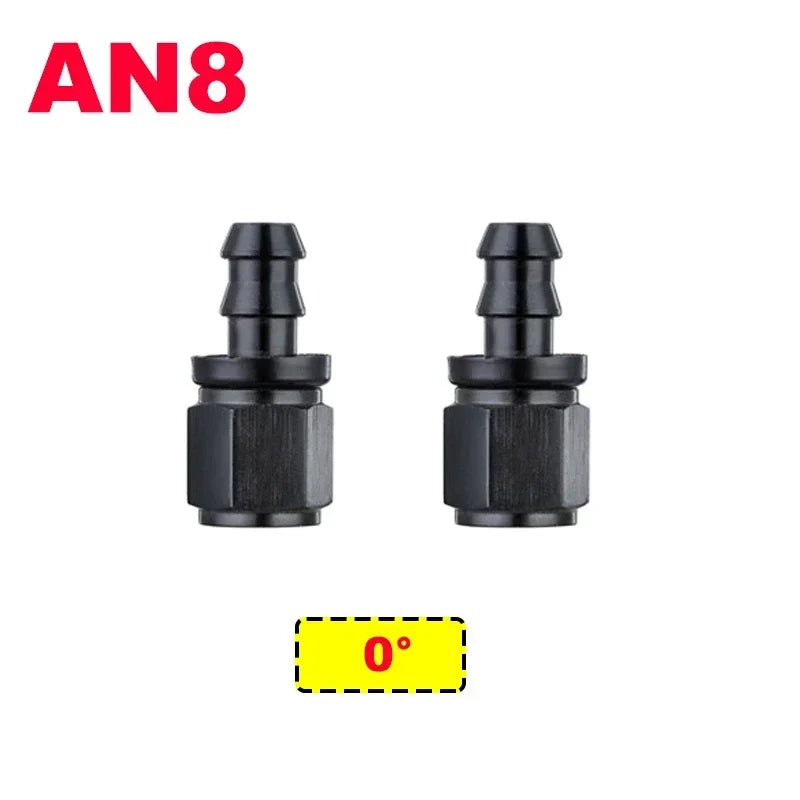

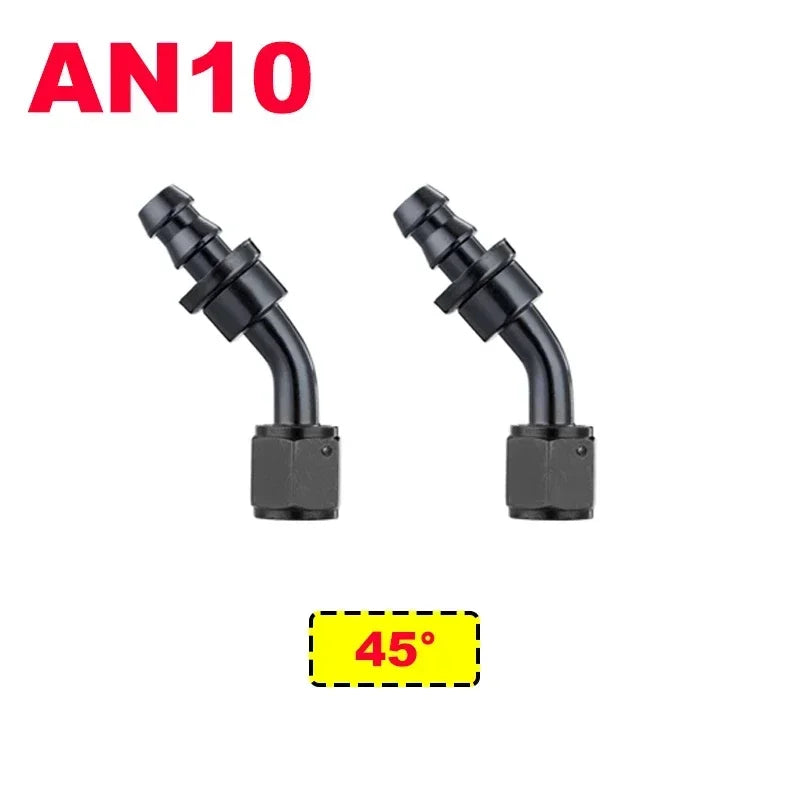

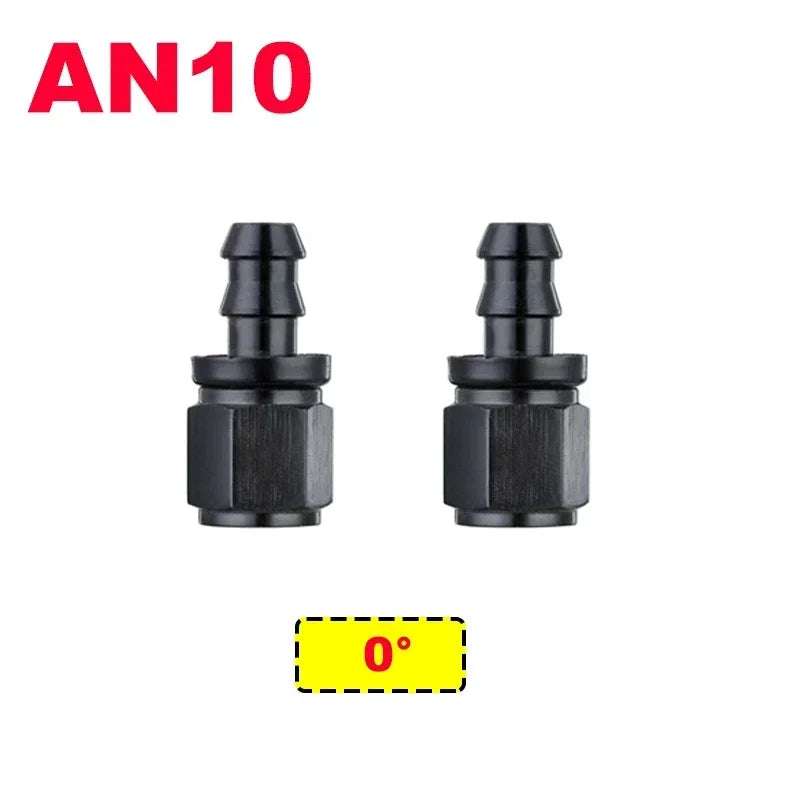

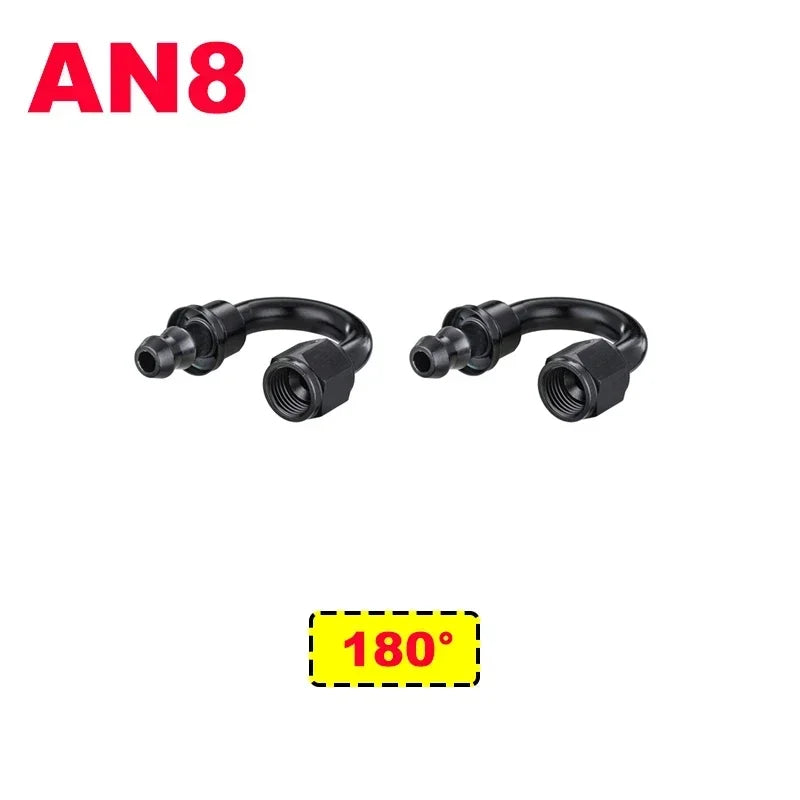

- Straight, 45, 90 and 180 degree
- Suits push-lock rubber hose
- 2 pack
- Not for high-pressure EFI feed lines

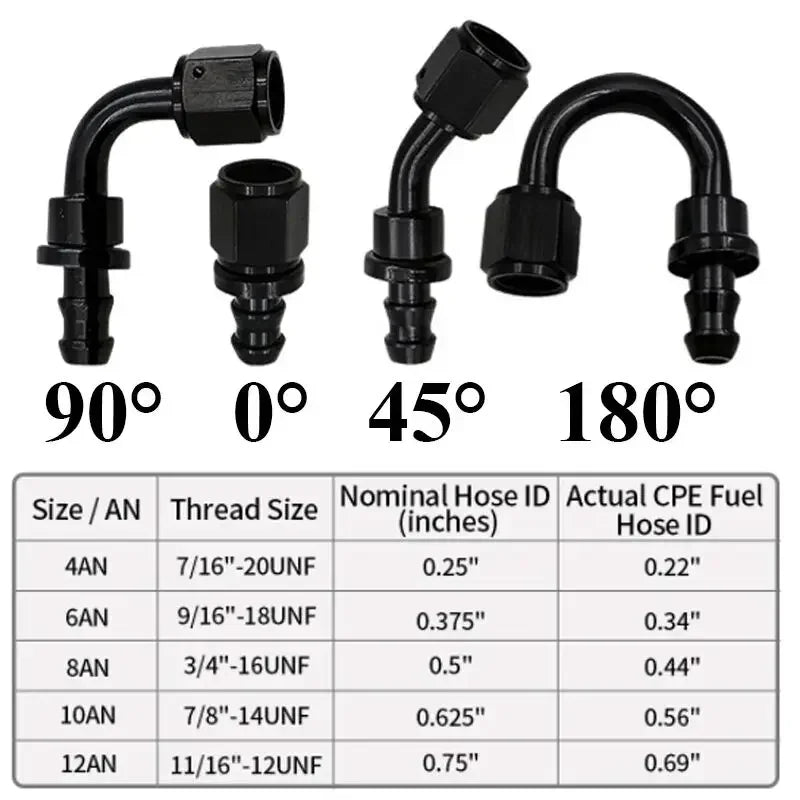

AN size chart
| Size | Tube / hose size | Approx. mm | Thread |
|---|---|---|---|
| AN4 | 1/4" | 6.4 mm | 7/16"-20 |
| AN6 | 3/8" | 9.5 mm | 9/16"-18 |
| AN8 | 1/2" | 12.7 mm | 3/4"-16 |
| AN10 | 5/8" | 15.9 mm | 7/8"-14 |
| AN12 | 3/4" | 19.1 mm | 1-1/16"-12 |
Frequently asked questions
Do push-lock hose ends need clamps?

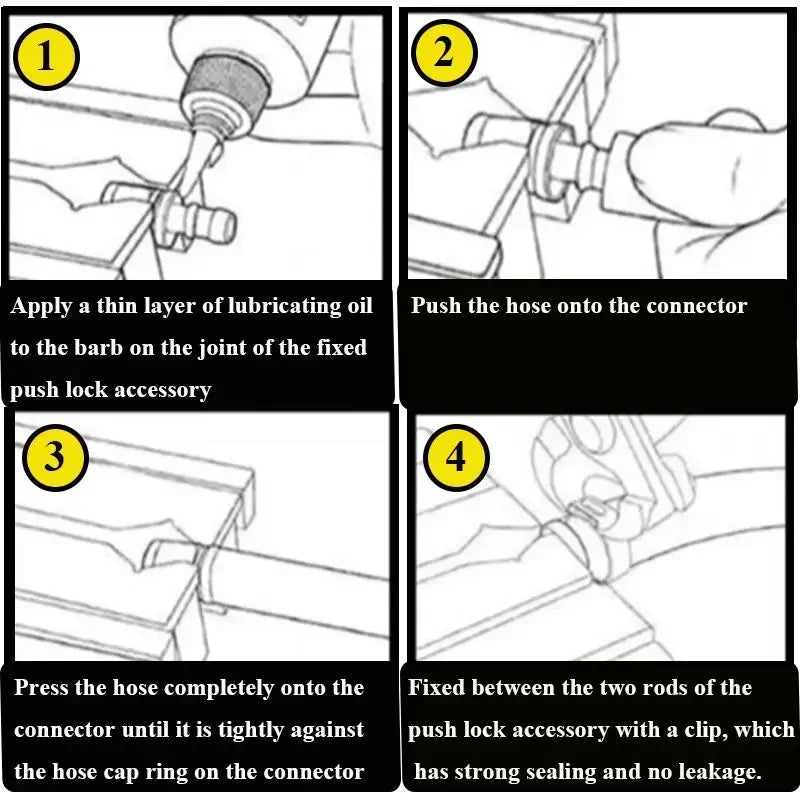

No, the barbs and the hose grip on their own when the hose is pushed all the way on. They are not designed for high-pressure EFI feed lines though.
Can you use hose clamps on braided fuel line?
Not on the stainless braid. Braided hose needs proper AN hose ends to seal and hold pressure. Clamps are for push-lock or plain rubber hose.
Do AN fittings need thread tape or sealant?
No. The seal is made on the 37 degree flare, not the thread, so keep tape and sealant off the AN side. Only the NPT (tapered pipe) end of an adapter needs sealant.
Quality and warranty
- Made in China, precision CNC-machined from solid aluminium, not cheap cast or pot-metal fittings
- Tough anodised finish, clean threads and true 37 degree flares that seal properly
- 2-year repair or replacement warranty against defects in materials and workmanship, on top of your rights under Australian Consumer Law
- Sold and backed by Tucks Performance, an Australian-owned business. Not sure what you need? Send us a message
Delivery: ships direct from our supplier partner, usually 10 to 20 days.
