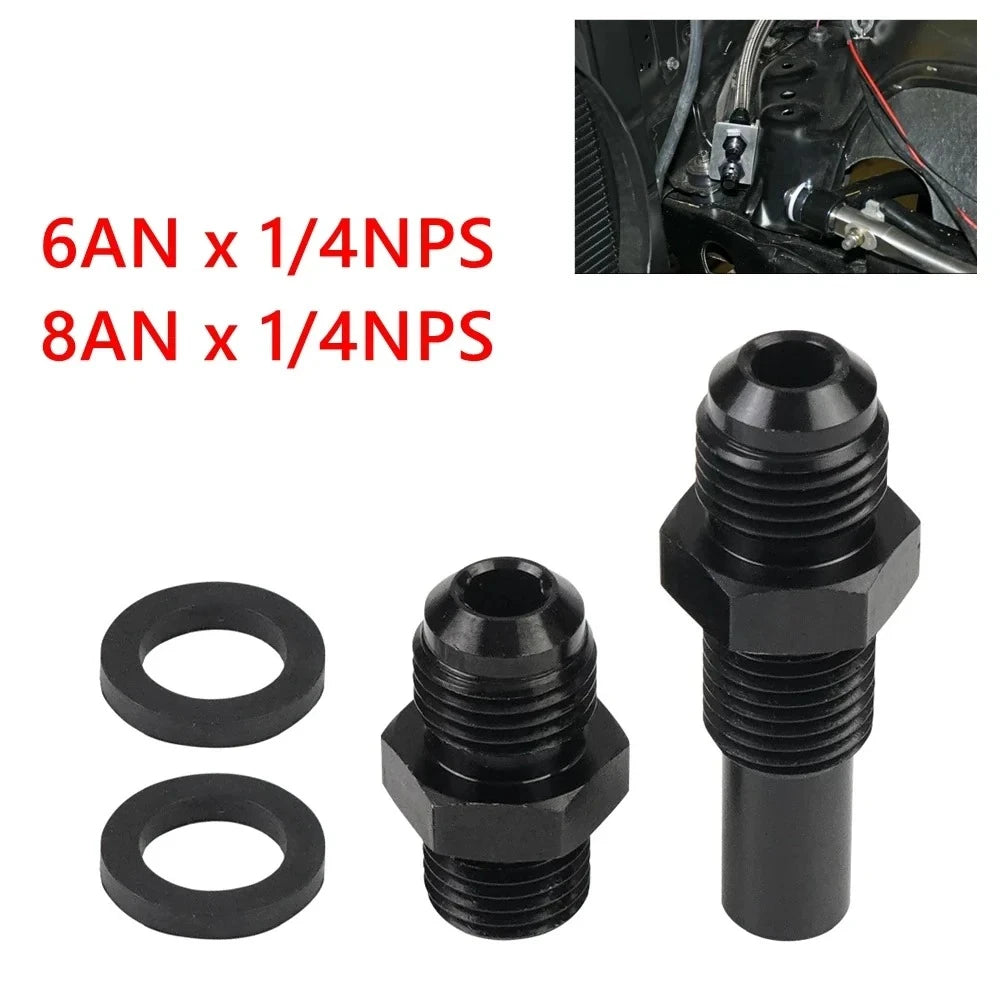

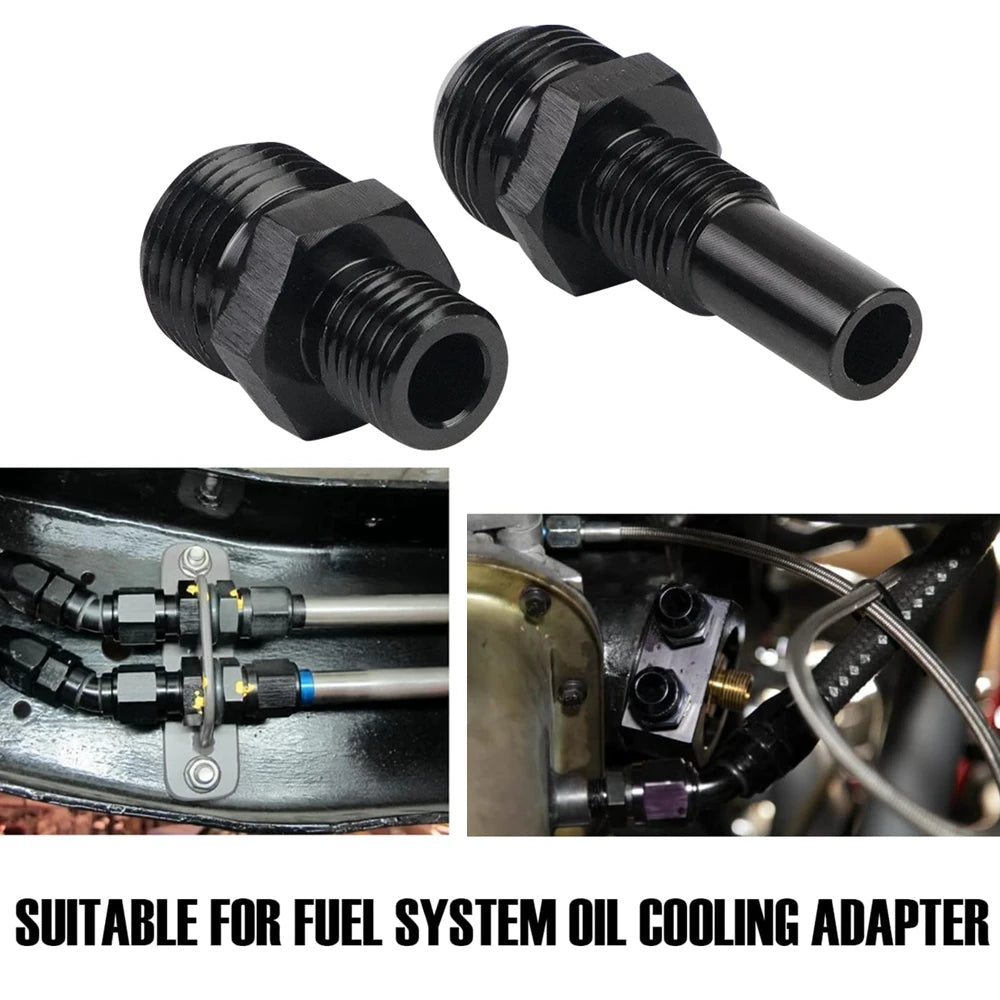

4L80E Cooler Line Fittings, 1/4" NPS to AN6 or AN8 Trans Cooler Adapter

Swap the factory 4L80E cooler line fittings for AN so you can run braided lines to your trans cooler. Screws straight into the case cooler ports.

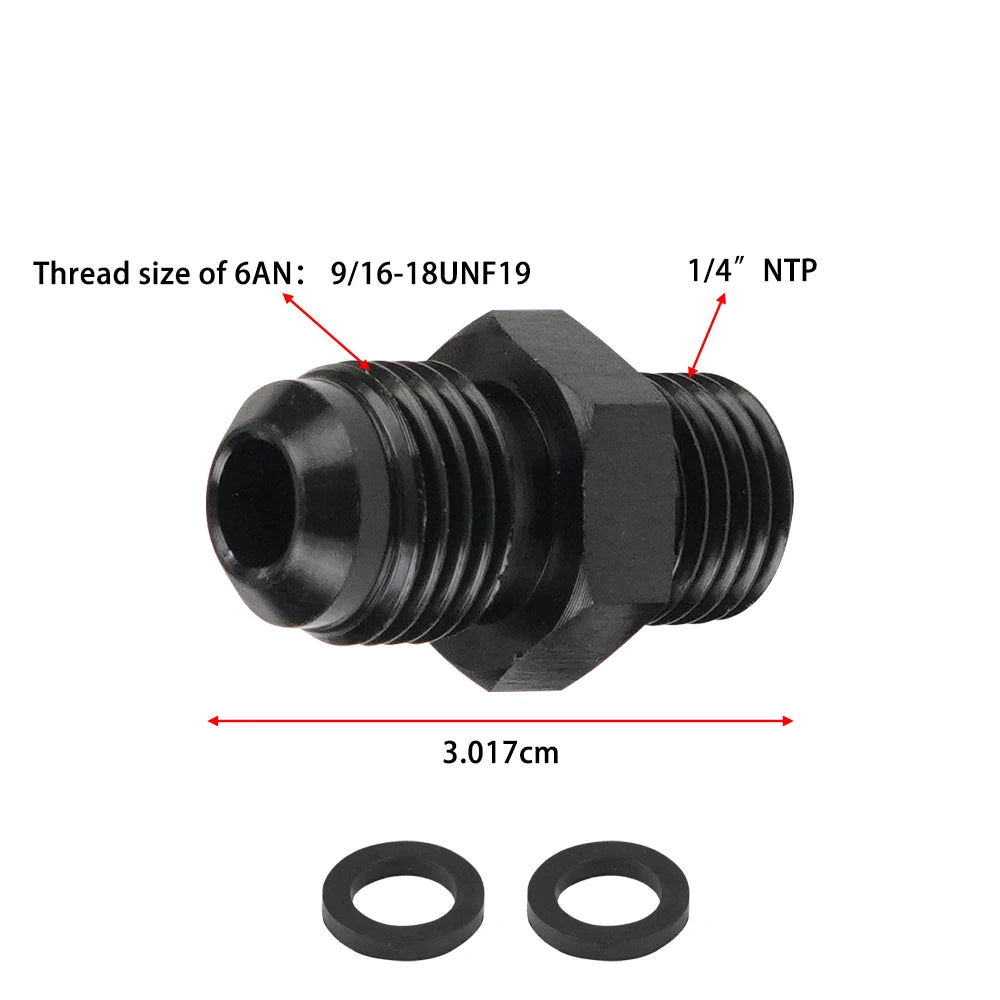

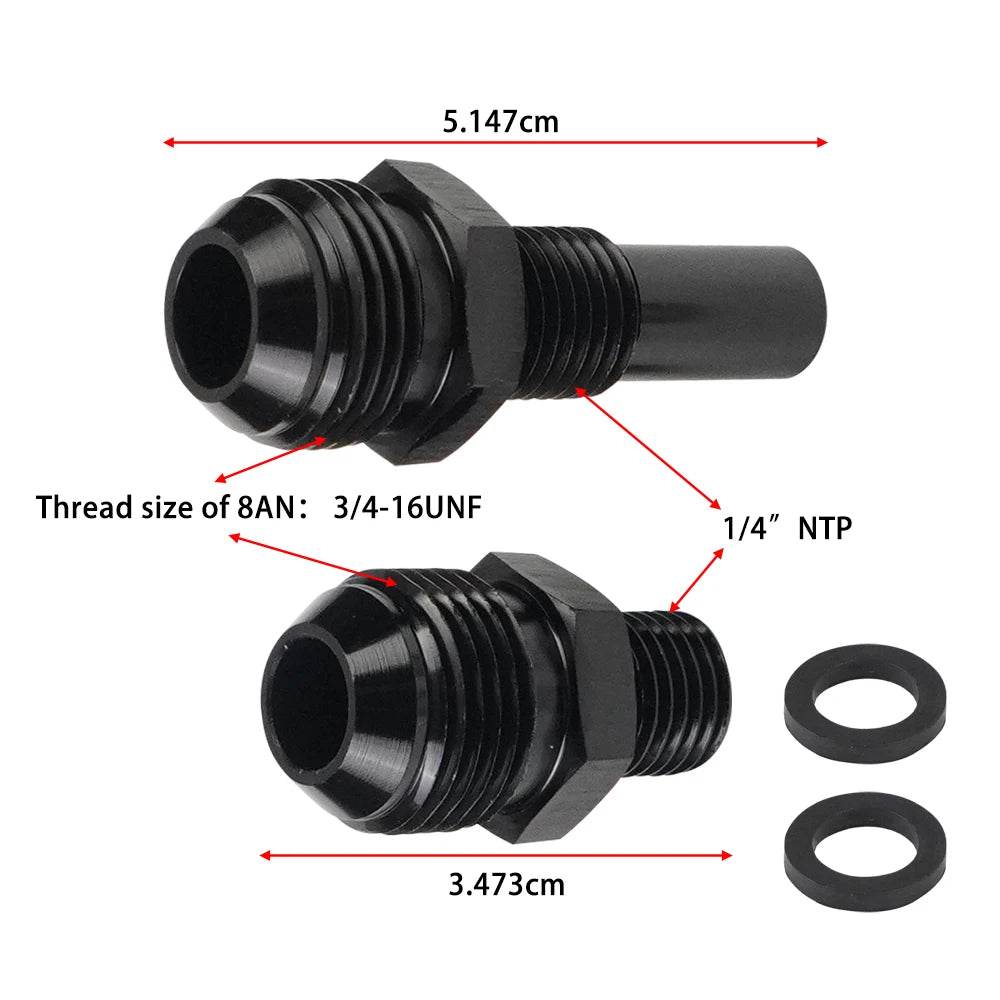

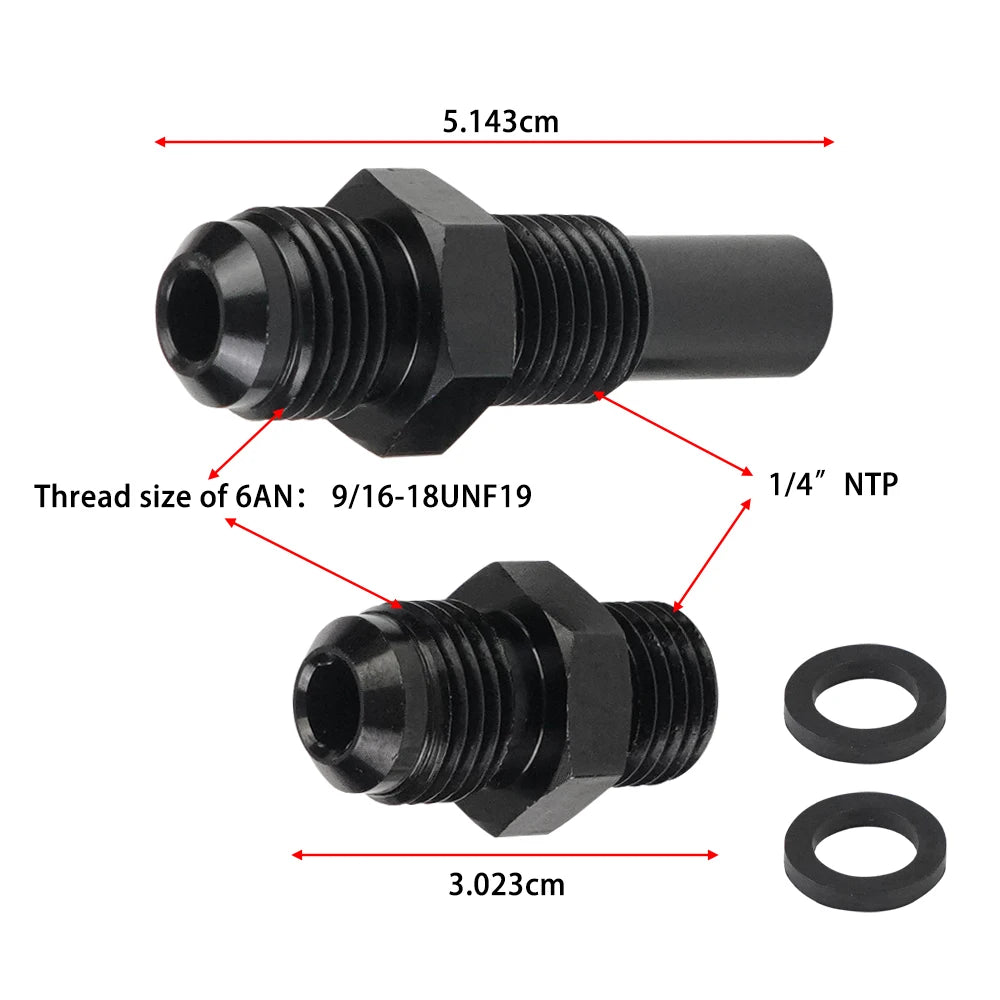

• 1/4" NPS thread to AN6 or AN8 male
• Suits 4L80E front and rear cooler ports
• Single or pair (see options)
• Aluminium

AN size chart

Frequently asked questions

What size are the 4L80E cooler line fittings?
The 4L80E case uses a 1/4" NPS straight thread at the cooler ports. These adapters convert that to AN6 or AN8 male so you can run braided lines to your cooler.

Do AN fittings need thread tape or sealant?
No. The seal is made on the 37 degree flare, not the thread, so keep tape and sealant off the AN side. Only the NPT (tapered pipe) end of an adapter needs sealant.

How tight should AN fittings be?
Snug them up by hand, then about a quarter turn with a proper AN spanner. Aluminium fittings do not need much. Over-tightening can crack the flare.

Quality and warranty

• Made in China, precision CNC-machined from solid aluminium, not cheap cast or pot-metal fittings
• Tough anodised finish, clean threads and true 37 degree flares that seal properly
• 2-year repair or replacement warranty against defects in materials and workmanship, on top of your rights under Australian Consumer Law
• Sold and backed by Tucks Performance, an Australian-owned business. Not sure what you need? Send us a message

Delivery: ships direct from our supplier partner, usually 10 to 20 days.
