Adjustable Fuel Pressure Regulator with Gauge, AN6 Return, AN8 or AN10 Feed

An adjustable return-style fuel pressure regulator for EFI builds, with a gauge so you can set and check your pressure. Two inlet ports, so it can feed both sides of a rail or run as a dead end with the cap.

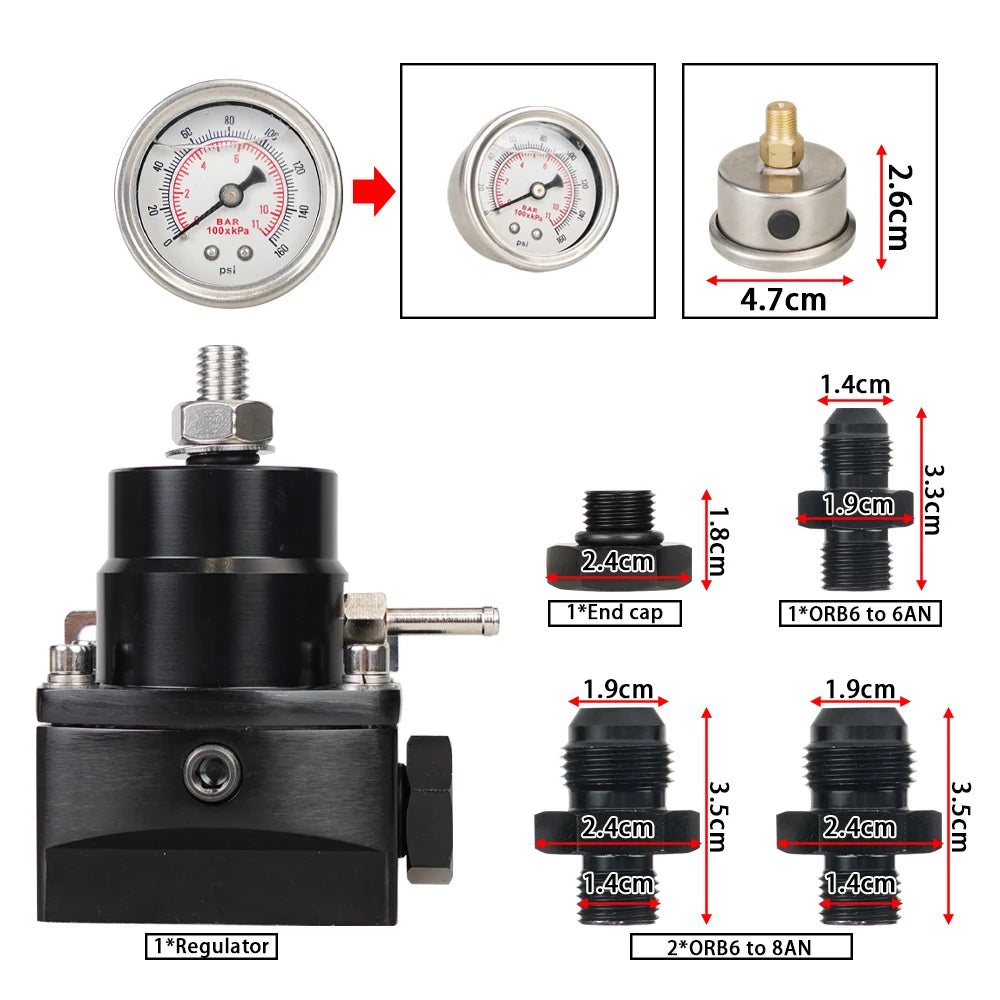

• AN8 or AN10 feed fittings (see options), AN6 return

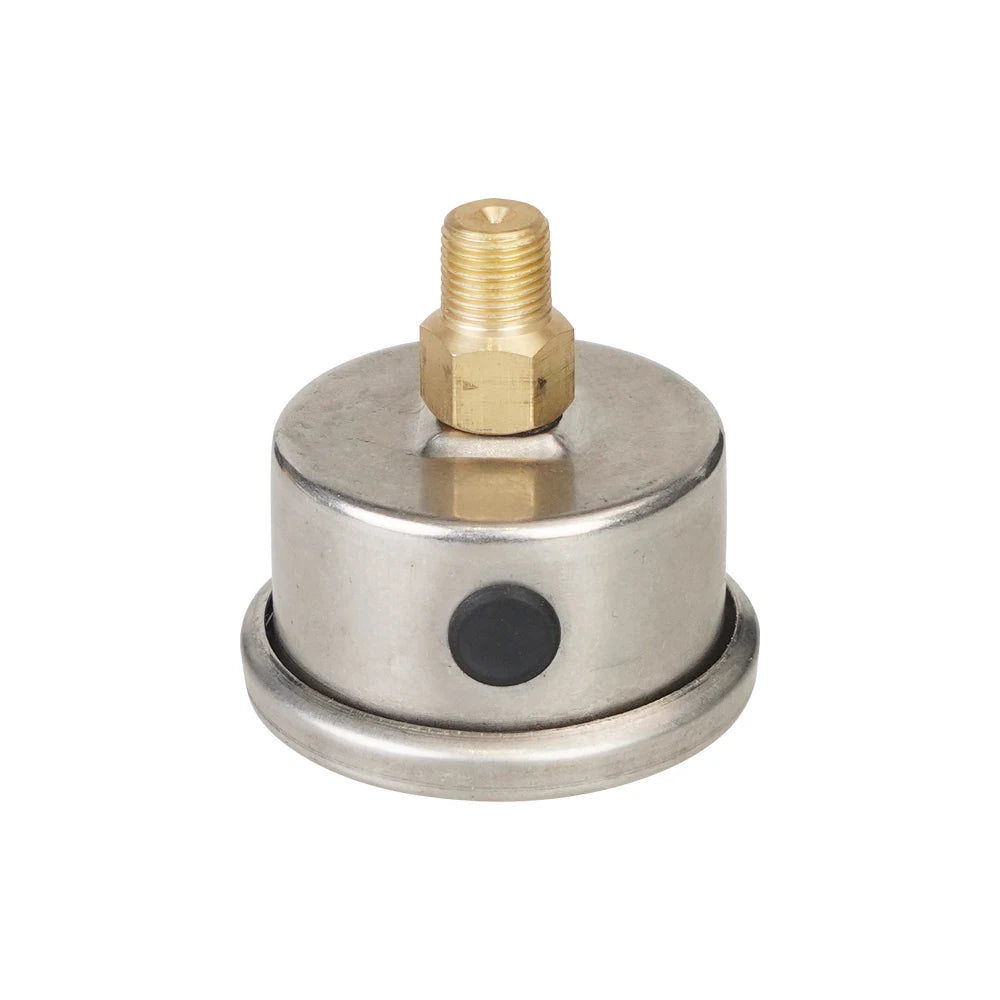

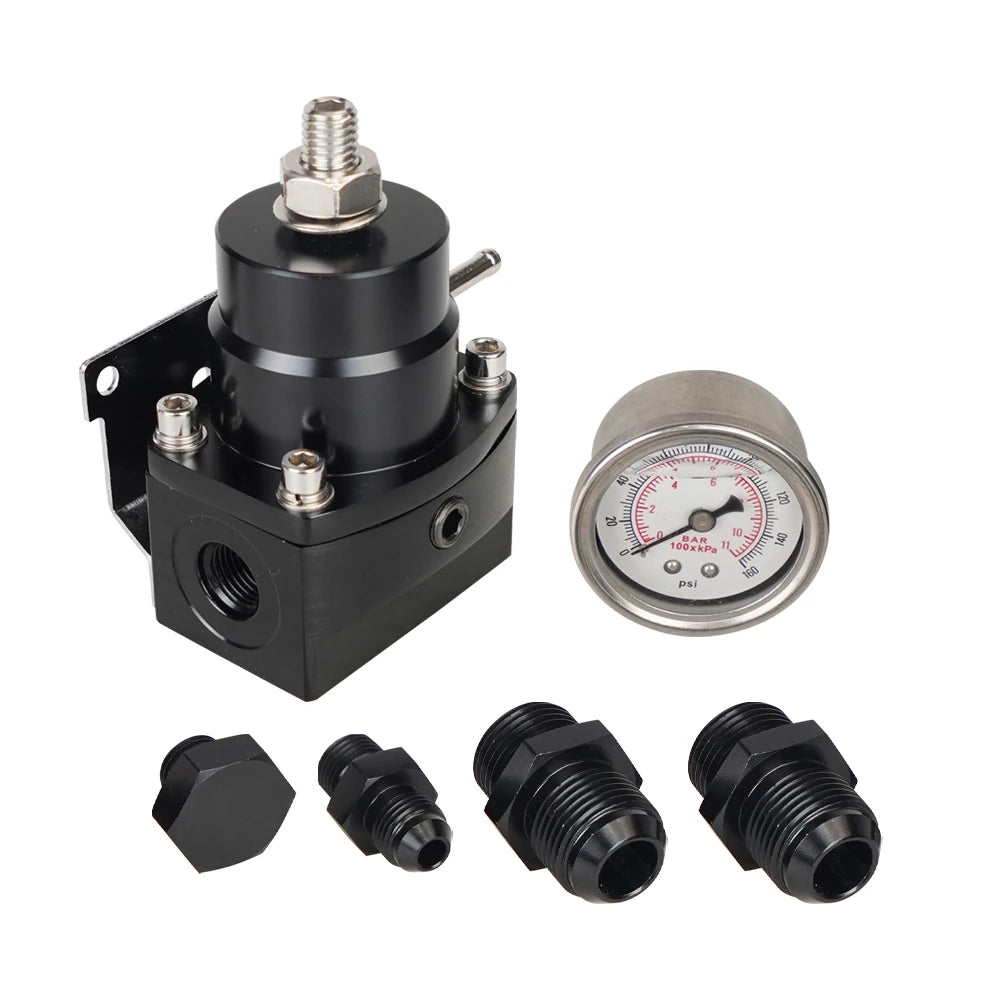

• Gauge, end cap and O-rings included

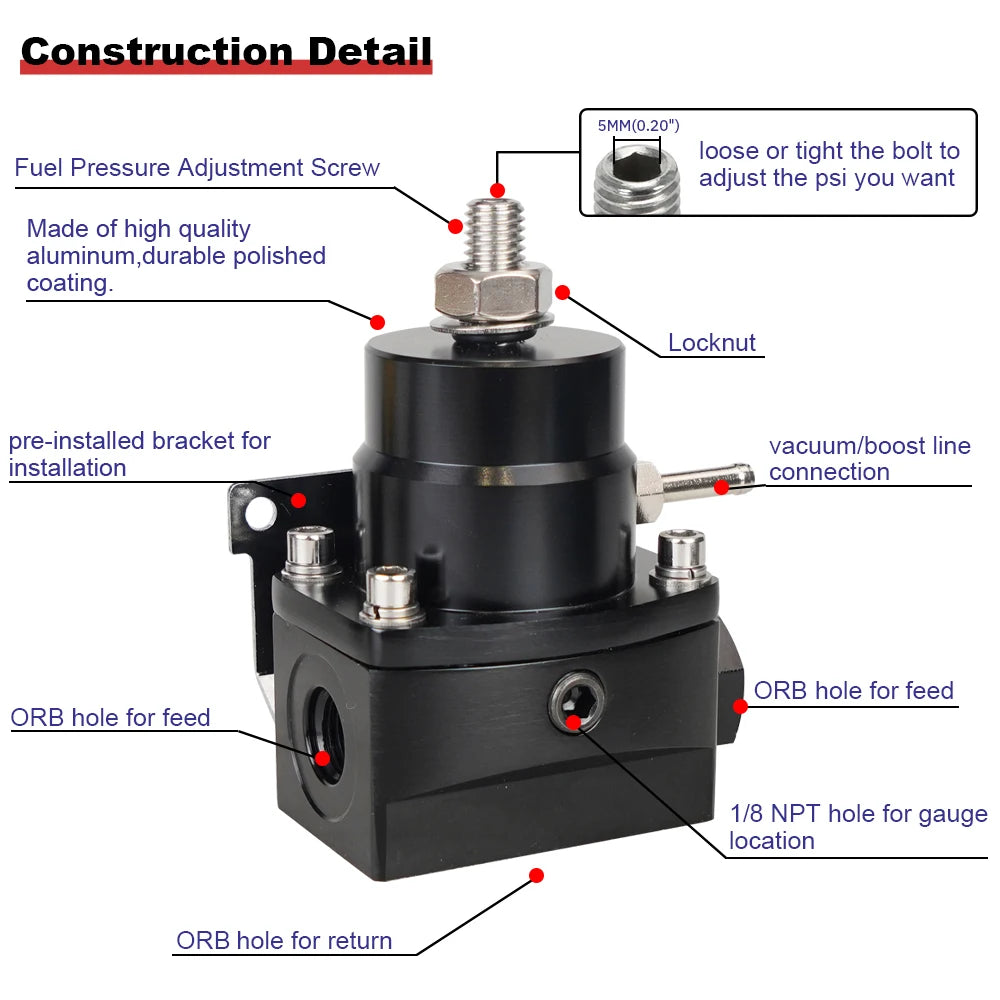

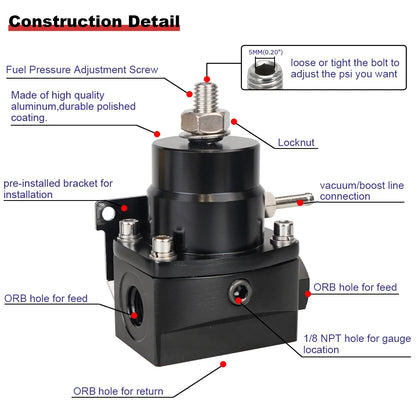

• Vacuum or boost reference port
• Black anodised aluminium

AN size chart

Frequently asked questions

Where should the fuel pressure regulator go?

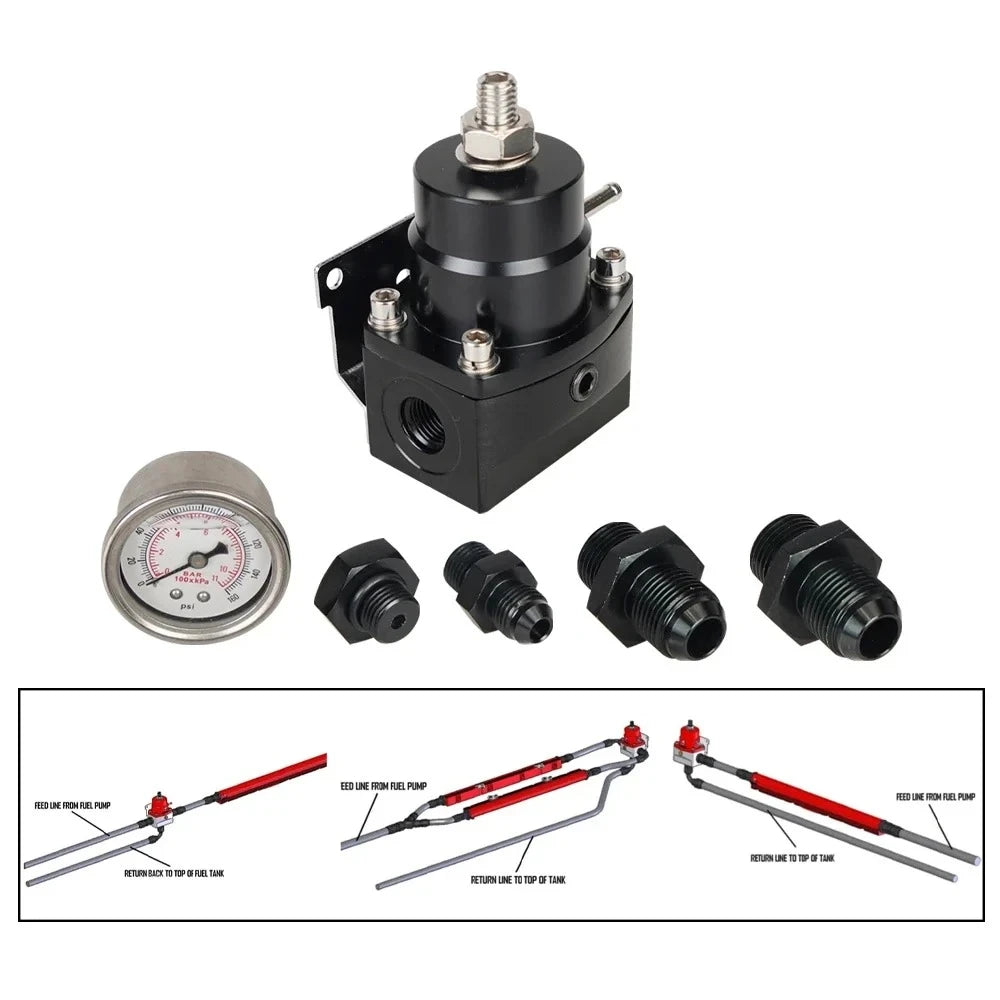

On a return-style EFI system, after the fuel rail: fuel goes pump, filter, rail, regulator, then returns to the tank from the regulator return port.

What fuel pressure should I run?
Most port injected EFI engines run around 43 psi (3 bar) base pressure. Check your injector and ECU spec. Carbies need far less, usually 5 to 7 psi.

What does ORB mean, and how is it different to AN?
ORB is O-Ring Boss: a straight thread port that seals with an O-ring, common on fuel pumps, regulators and filters. AN seals on a flare instead. An ORB to AN adapter lets you run AN hose to an ORB port.

What size fuel line do I need for my horsepower?
As a rough guide on petrol EFI: AN6 is good to around 500 hp, AN8 to around 800 hp, AN10 beyond that. E85 needs about 30 percent more fuel, so go up a size if you are running it.

Quality and warranty

• Made in China, precision CNC-machined from solid aluminium, not cheap cast or pot-metal fittings
• Tough anodised finish, clean threads and true 37 degree flares that seal properly
• 2-year repair or replacement warranty against defects in materials and workmanship, on top of your rights under Australian Consumer Law
• Sold and backed by Tucks Performance, an Australian-owned business. Not sure what you need? Send us a message

Delivery: ships direct from our supplier partner, usually 10 to 20 days.
