F-1600 12V / 24V High Capacity Split System Air Conditioner
The top of the range. If you've got the battery storage and want serious cold air, this is it. A variable-speed scroll compressor hits hard when the cabin's hot, then backs itself and the twin condenser fans off once the heat's under control, so it's not flat chat the whole time chewing through your batteries.

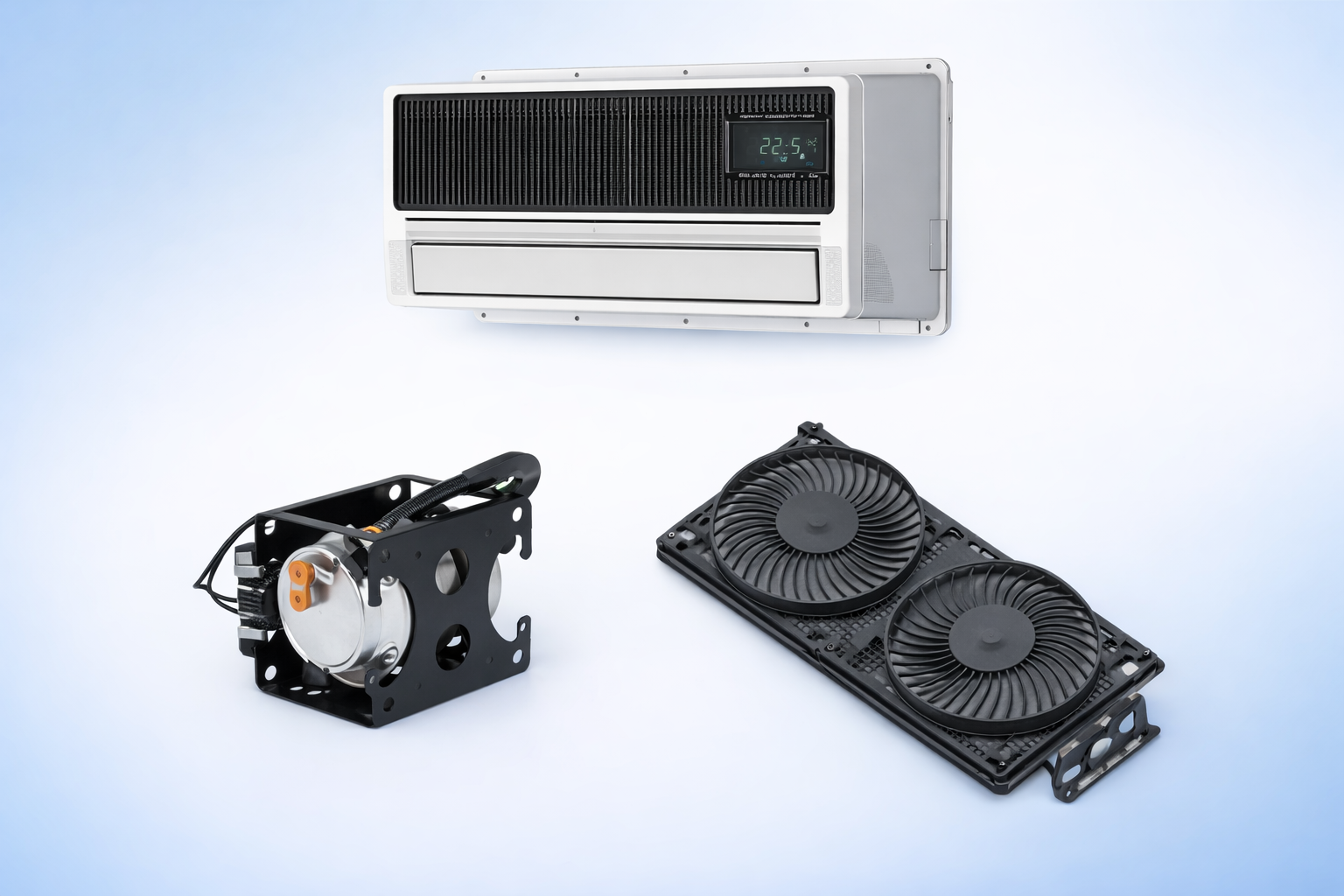

The compressor and condenser are separate units in tough black metal housings, so they mount under the vehicle, on the chassis rails or wherever suits. Control it from your phone with the Bluetooth app. Made for trucks, sleeper cabs, caravans, campers, vans, motorhomes, machinery and boats.
Why it's the best we sell
- Variable-speed electric scroll compressor. Reads the cabin and adjusts, so it cools hard then eases off to save power.
- Twin fan condenser. Moves the heat out properly on 40 degree days.
- Copper condenser and brushless motors inside and out. Built to last in Aussie heat.
- Low-voltage battery shutdown. Switches off before it flattens your batteries.
- Bluetooth app control. Run it from your phone.
- Separate compressor and condenser. Mount each one where it fits.
- Four indoor units to choose from. Three wall mounts and a roof mount.
Specifications
| Voltage | 12V or 24V DC (choose when you order) |
| Cooling capacity | 2400 to 2600 W |
| Rated current | 80 to 120 A |
| Compressor | Variable-speed electric DC scroll, 850 to 1200 W |
| Indoor airflow | 450 m³/h |
| Condenser airflow | 2600 m³/h, twin fans |
| Fan power | Indoor 60 W, condenser 100 W |
| Set temperature | 5 to 32°C |
| Control | Bluetooth phone app |
| Protection | Low-voltage battery shutdown |
| Indoor unit | 4 options, sizes below |
| Warranty | 3 years on the compressor, 1 year on the rest of the unit |
Indoor unit sizes
| Indoor unit | Style | Size (mm) |
|---|---|---|
| FS600 | Wall mount | 665 x 340 x 200 |

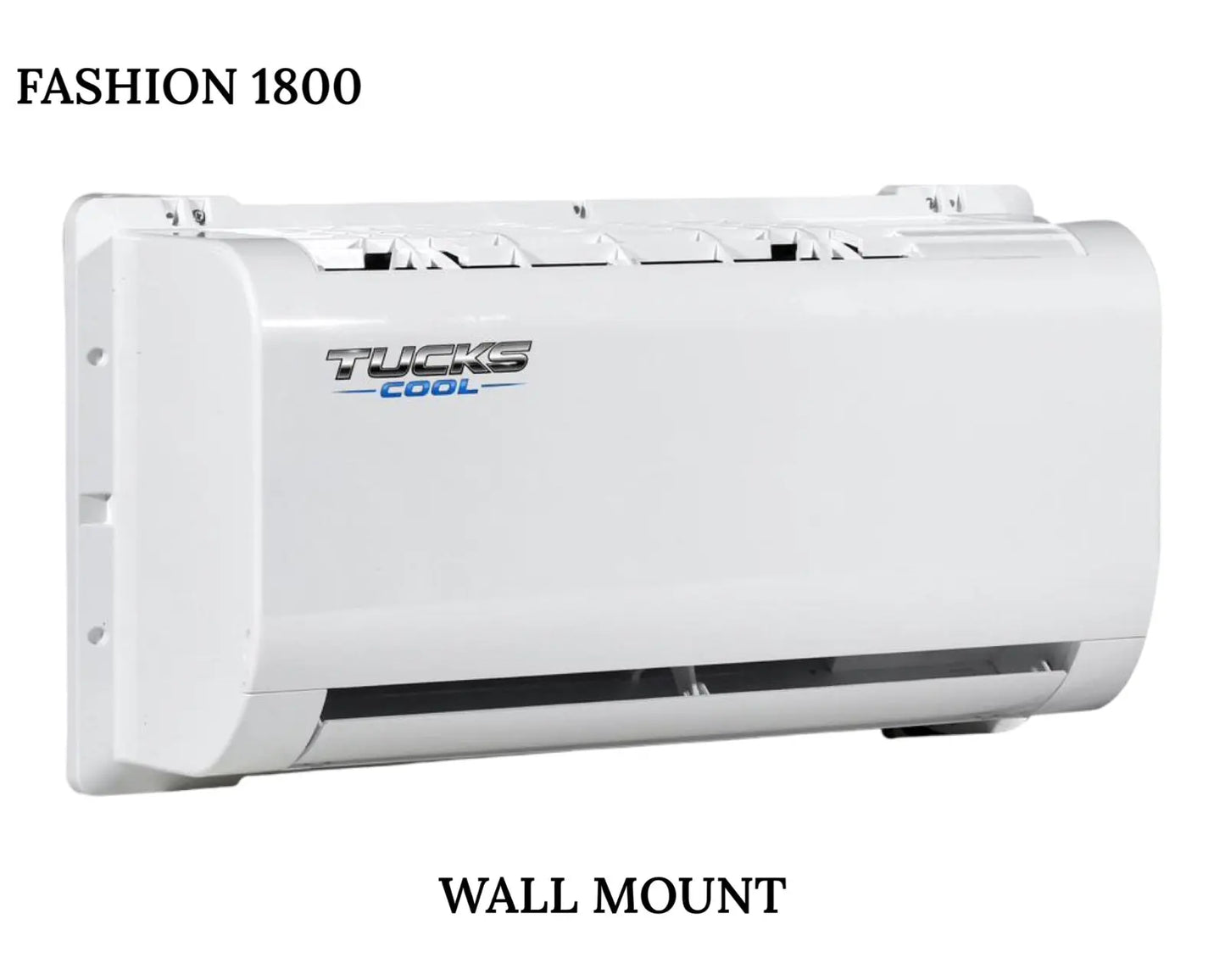

| FS1800 | Wall mount | 635 x 330 x 190 |
| FS460 | Wall mount | 460 x 320 x 160 |
| FS650 | Roof mount | 653 x 285 x 155 |
Frequently asked questions
How many amps does it draw?
Rated at 80 to 120 A. It's a big unit, so it suits setups with plenty of battery storage. The variable-speed compressor drops the draw a lot once the cabin is cool.
Will it flatten my batteries?
It has a low-voltage shutdown that switches it off before your batteries go too low.
Should I get 12V or 24V?
Match your vehicle. Trucks are usually 24V. Caravans, campers and utes are usually 12V. On a unit this size, 24V is the better choice if you have it, because it runs on half the amps.
Will it run off batteries and solar?
Yes, with a good-sized lithium bank. Charge it with a DC-DC charger and solar. A DC-DC charger gets your batteries to 100 percent, where an alternator alone only gets them to about 80 percent.
Where can I mount the compressor and condenser?
Under the vehicle, on the chassis rails or anywhere with airflow. They're separate, so each one goes where it fits.
Which indoor unit should I pick?
FS600, FS1800 and FS460 are wall mounts. FS650 is the roof mount. Sizes are in the table above. Send us a photo of where it's going and we'll help you pick.
Can I control it from my phone?
Yes, with the Bluetooth app.
Who installs it?
We don't install. Any licensed A/C technician can fit it and gas it.
What warranty do I get?
3 years on the compressor and 1 year on the rest of the unit.
How long does delivery take?
About 4 to 6 weeks, by sea freight direct from our supplier. You'll get an email the day it's dispatched.
Shipping and delivery
$79 flat rate Australia-wide. Allow about 4 to 6 weeks. Shipped by sea freight directly from our supplier, and you'll get an email the day it's dispatched. Online purchase only, no pick-up.
