SPECIFICATIONS

Special Features: SPST, ON OFF, (ON) OFF

Item Type: Light Switch

Item Weight: 23

Item Width: 0.87

Item Length: 1.28

Material Type: abs

Model Name: push switch

External Testing Certification: ce

12V 3A OEM Replacement Push Switch For Toyota Led Green

• Black hard surface rocker, Laser etched Legend

• Led: green

• Rated at 3Amp 12V

• High quality single pole single throw ON-OFF push switch, GARAGE and HORN is (ON) OFF momentary kind.

• Face surface size: 32.5 mm x 22 mm ( 1.28" x 0.87"), Uses the original mounting hole of the vehicle

• Wateproof Rating: IP68

• Wiring supplied with switch

• Upper light is ON when the switch is pressed IN; Lower light can be wired to separate dash light circuit

• These switches are an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's

• All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

This Switch Suits the following models : Additional vehicles that are not listed may be suitable for these switches. Please Check Sizing

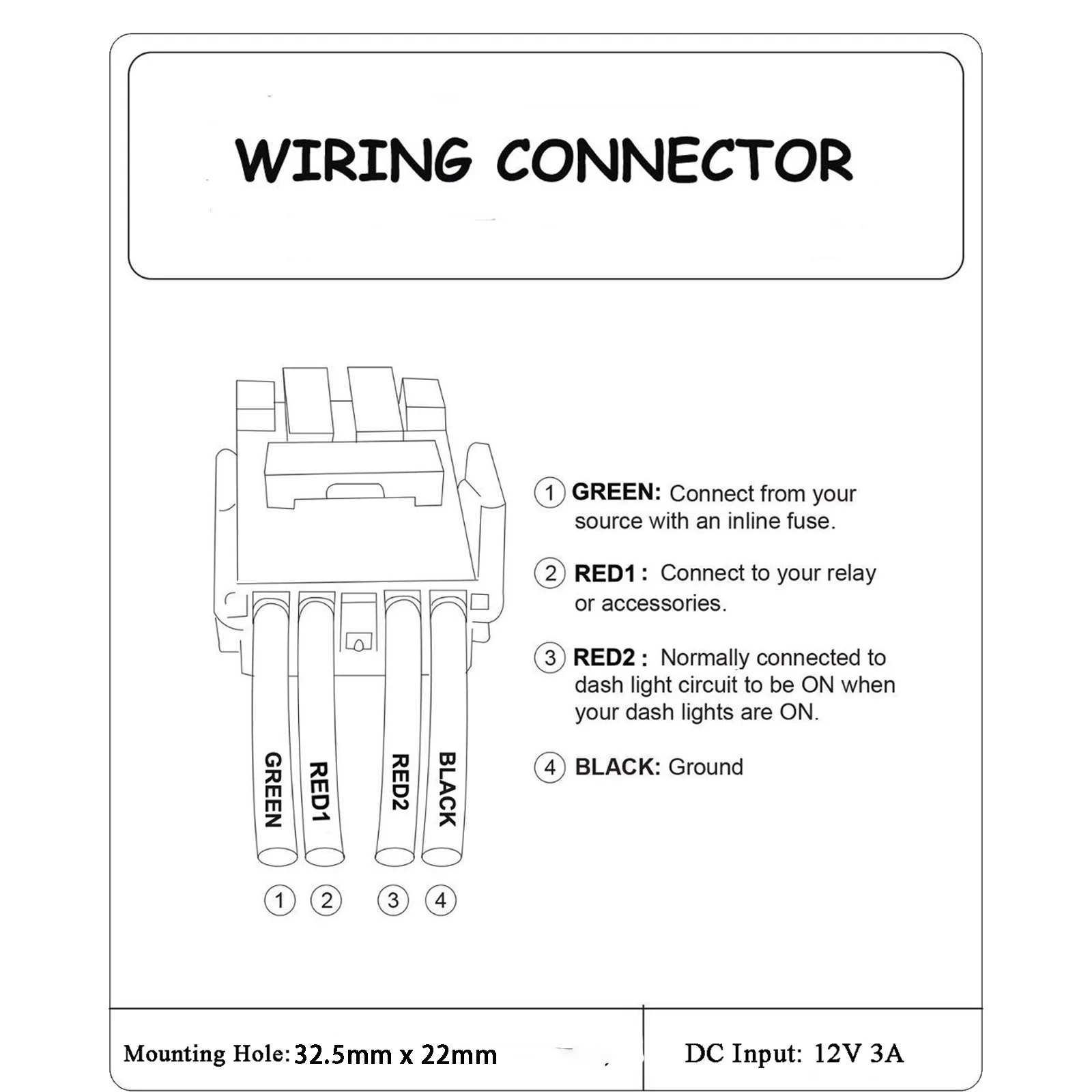

Wiring Diagram

① Green Wire: Connect from your source with an inline fuse

②Red Wire-1: Connect to your replay or accessories

③Red Wire-2: Normally connected to dash light circuit to be ON when your dash lights are ON

④Black Wire: Connect to Ground
