LS Oil Pressure Sensor Adapter M16 x 1.5 or M12 x 1.5 to 1/8" NPT

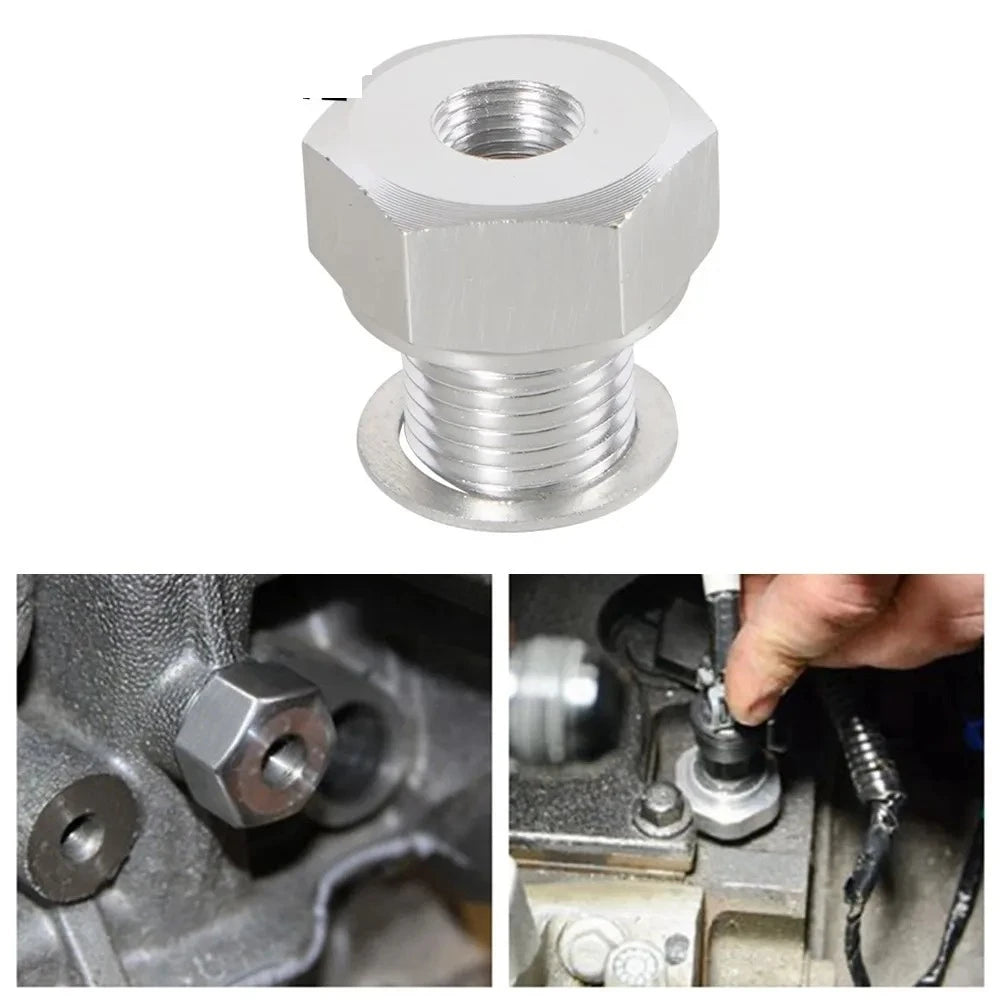

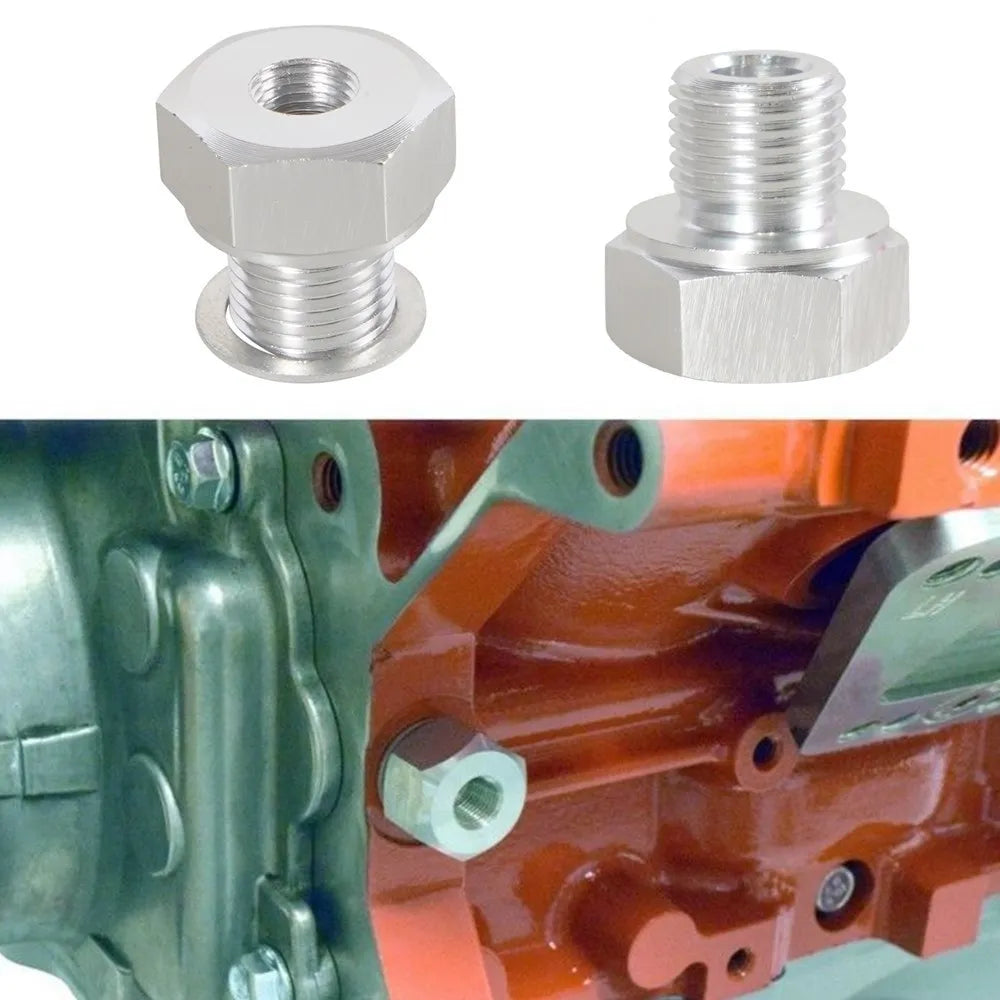

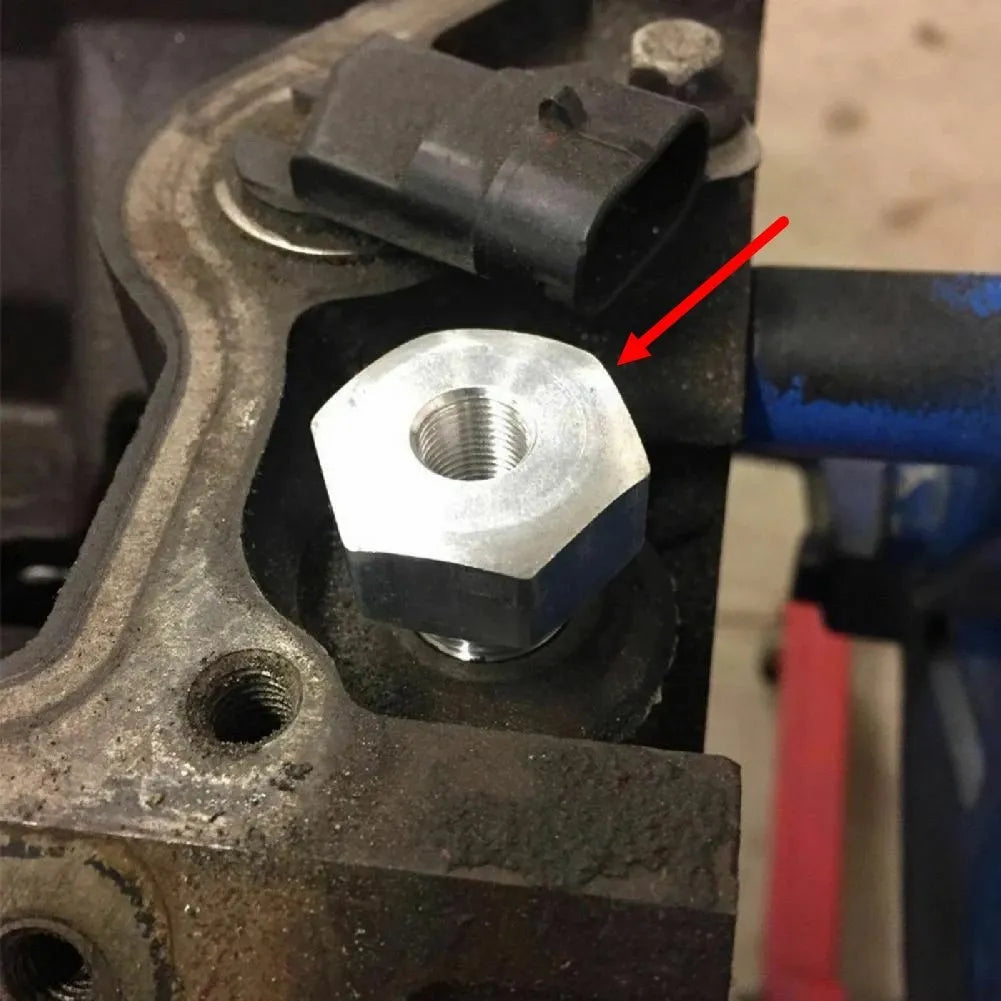

Run an aftermarket oil pressure sender or gauge line on an LS. Screws into the factory sensor port and gives you a 1/8" NPT female thread to suit most gauges and senders.

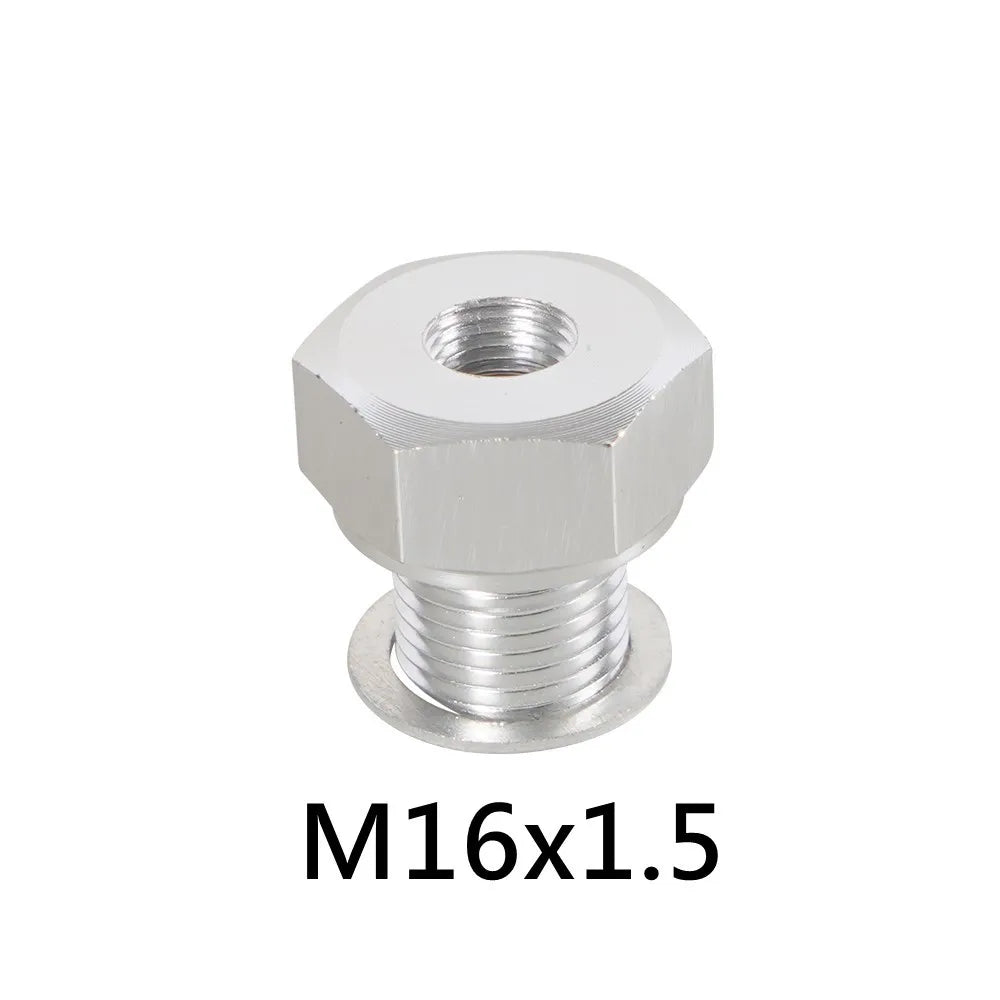

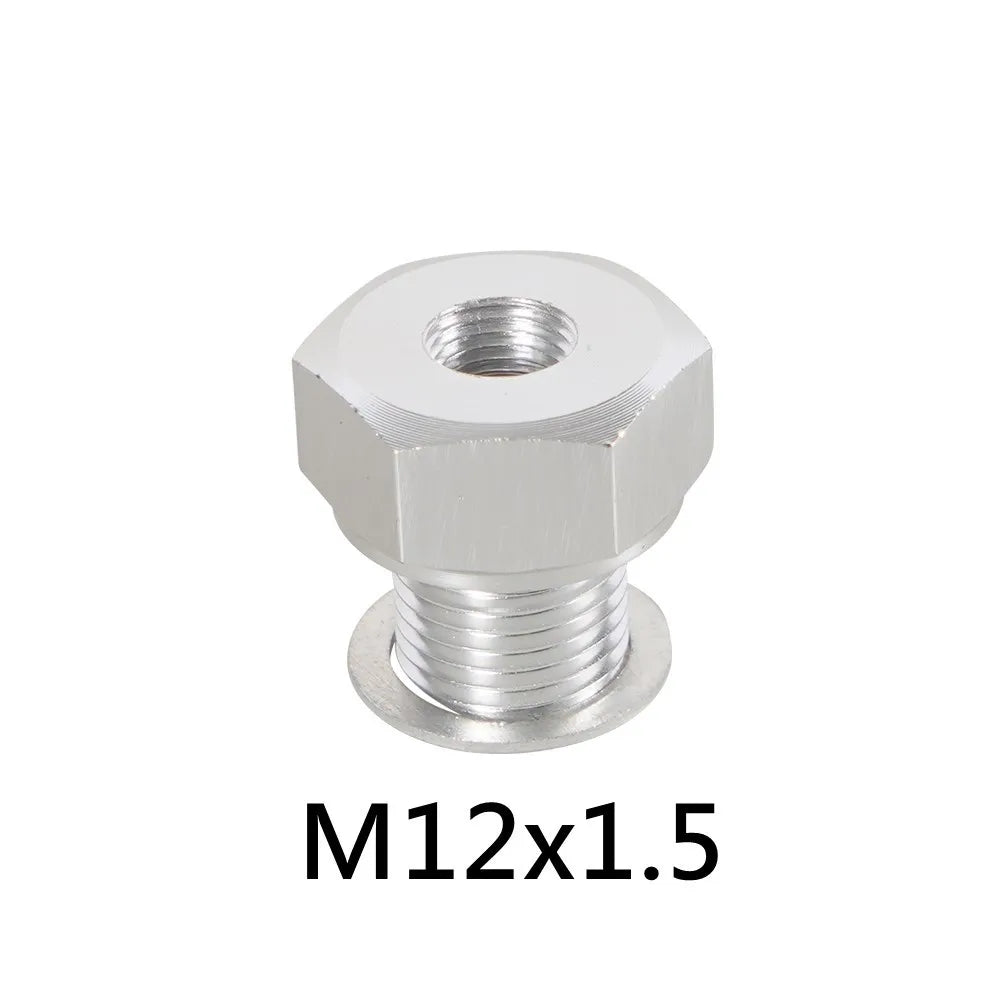

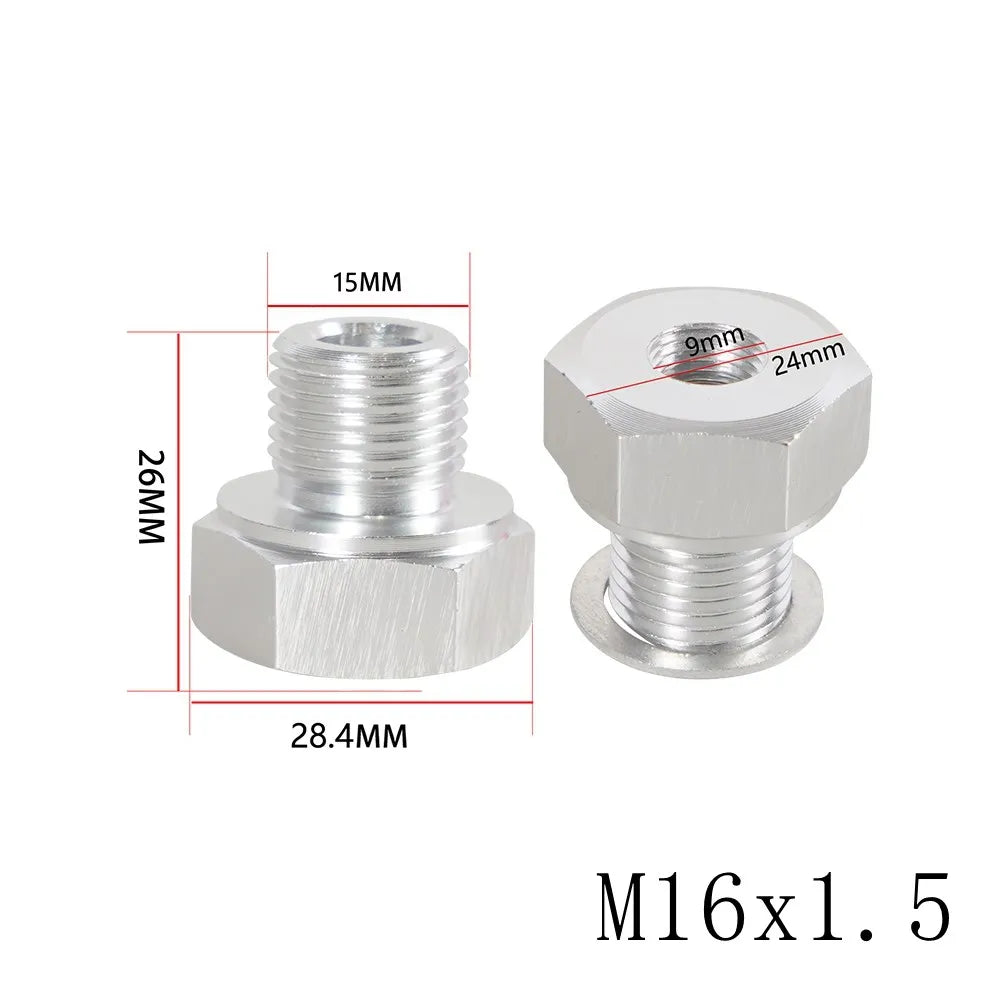

• M16 x 1.5 or M12 x 1.5 male (see options)
• 1/8" NPT female
• Sealing washer included
• Aluminium

Frequently asked questions

Which thread does my LS use for the oil pressure sensor?
Gen III LS engines mostly use M16 x 1.5, and many Gen IV use M12 x 1.5. Check the old sensor thread before ordering.

Are AN and NPT the same?
No. AN is a straight thread that seals on a 37 degree flare. NPT is a tapered pipe thread that seals on the thread itself with sealant. You need an adapter to go from one to the other.

Does Australia use BSP or NPT?
Both turn up. Most American engine parts, gauges, pumps and senders are NPT, while some local and Euro gear is BSP. Check your port before you order, they do not interchange.

Quality and warranty

• Made in China, precision CNC-machined from solid aluminium, not cheap cast or pot-metal fittings
• Tough anodised finish, clean, accurate threads
• 2-year repair or replacement warranty against defects in materials and workmanship, on top of your rights under Australian Consumer Law
• Sold and backed by Tucks Performance, an Australian-owned business. Not sure what you need? Send us a message

Delivery: ships direct from our supplier partner, usually 10 to 20 days.
