Turbo Oil Feed Line AN4 PTFE Braided, Straight to 90 Degree, 12 to 60 Inch

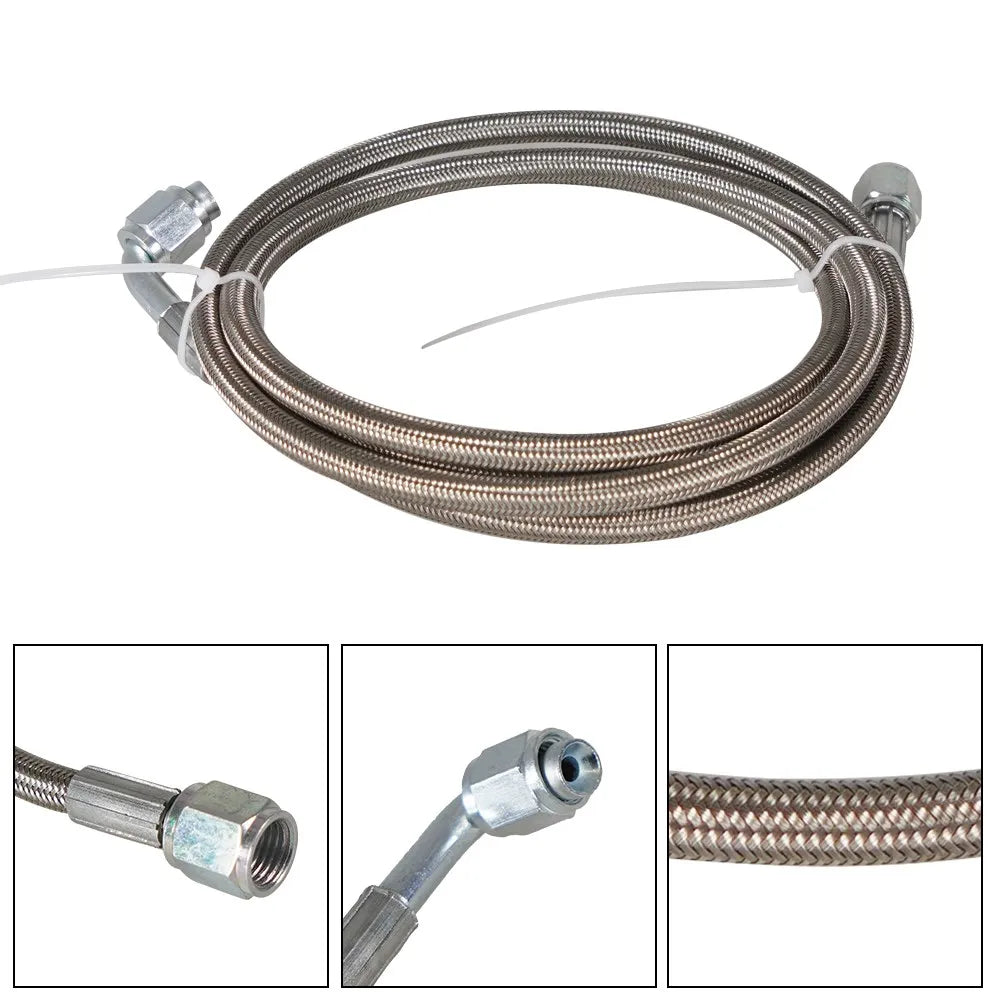

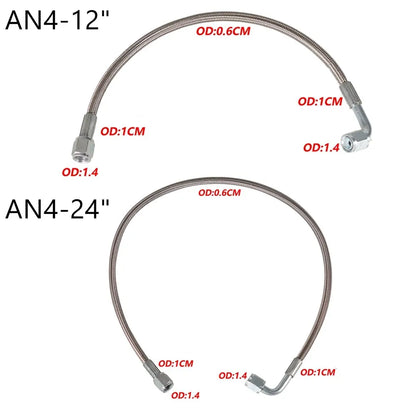

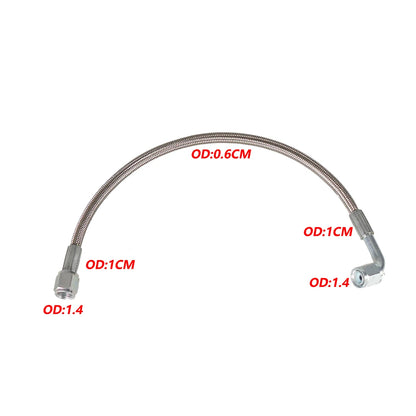

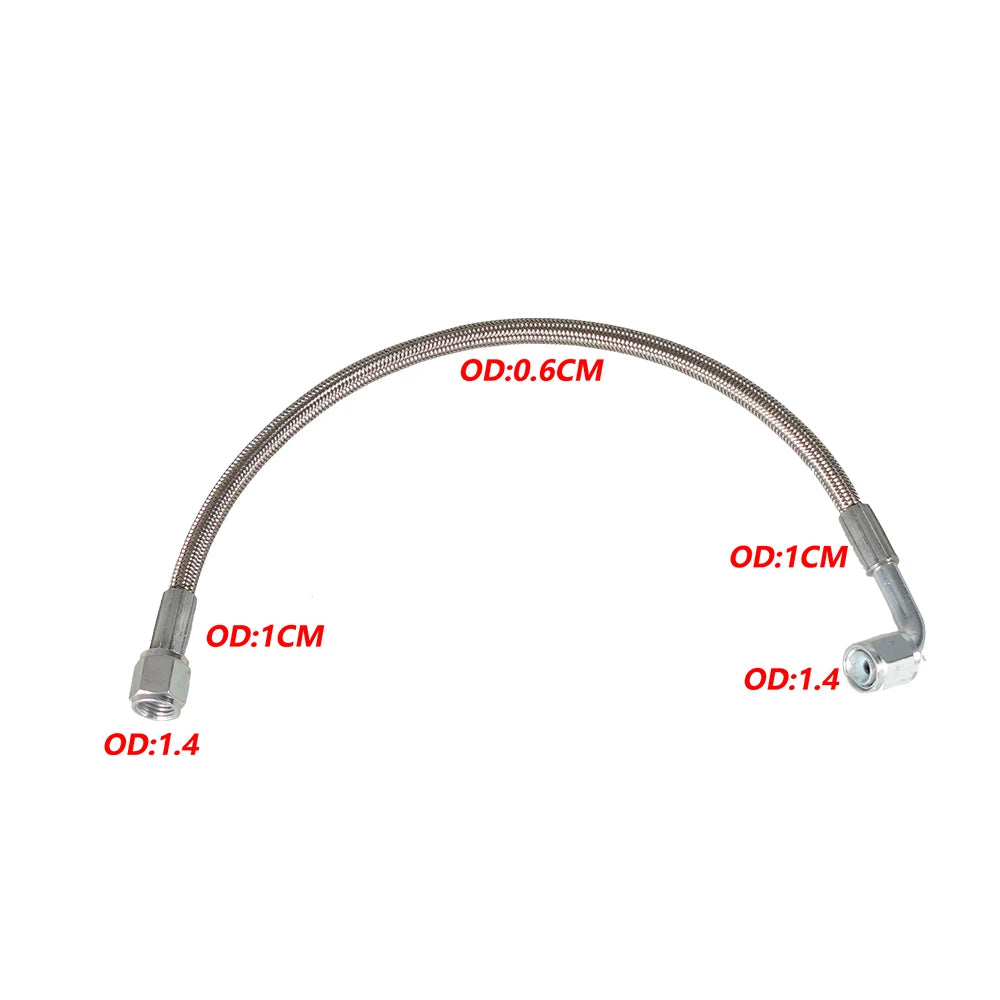

A made-up AN4 turbo oil feed line. PTFE lined and stainless braided, with a straight hose end one end and 90 degree the other. Pick the length you need.

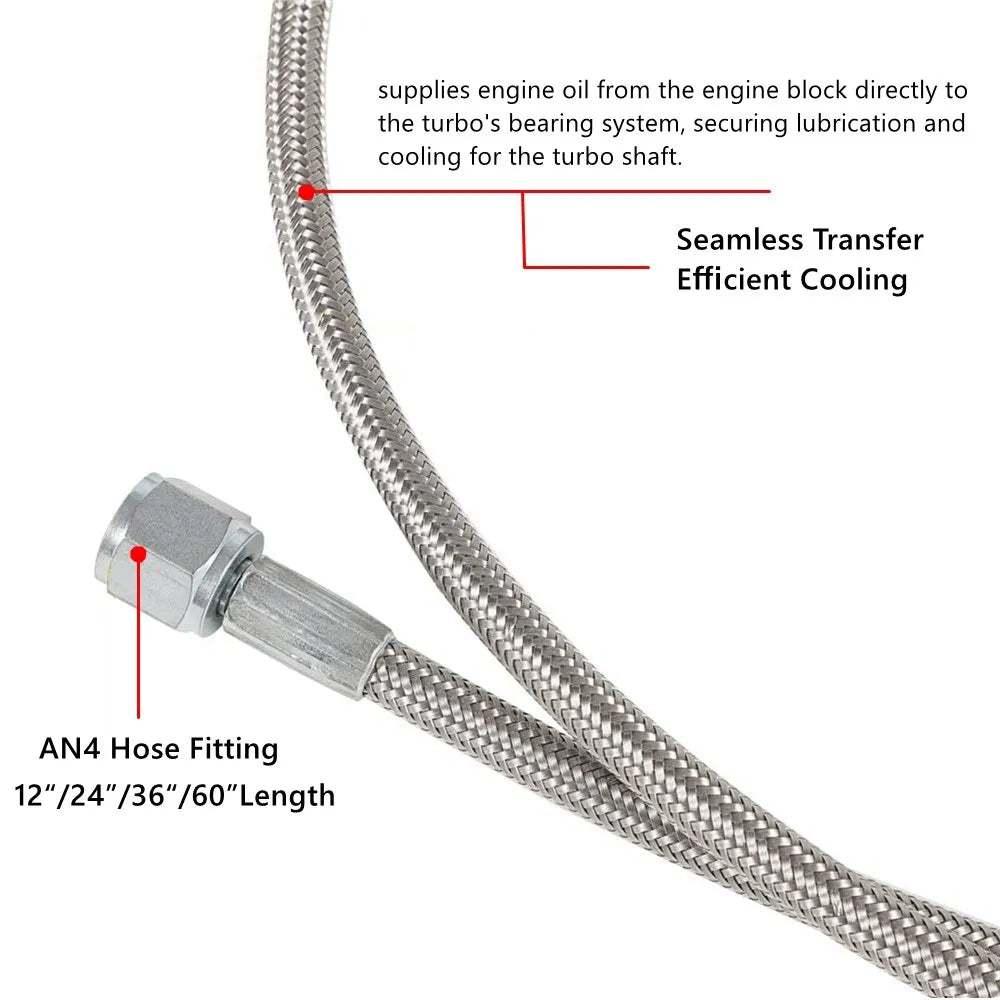

• AN4 (-4) female hose ends, straight and 90 degree

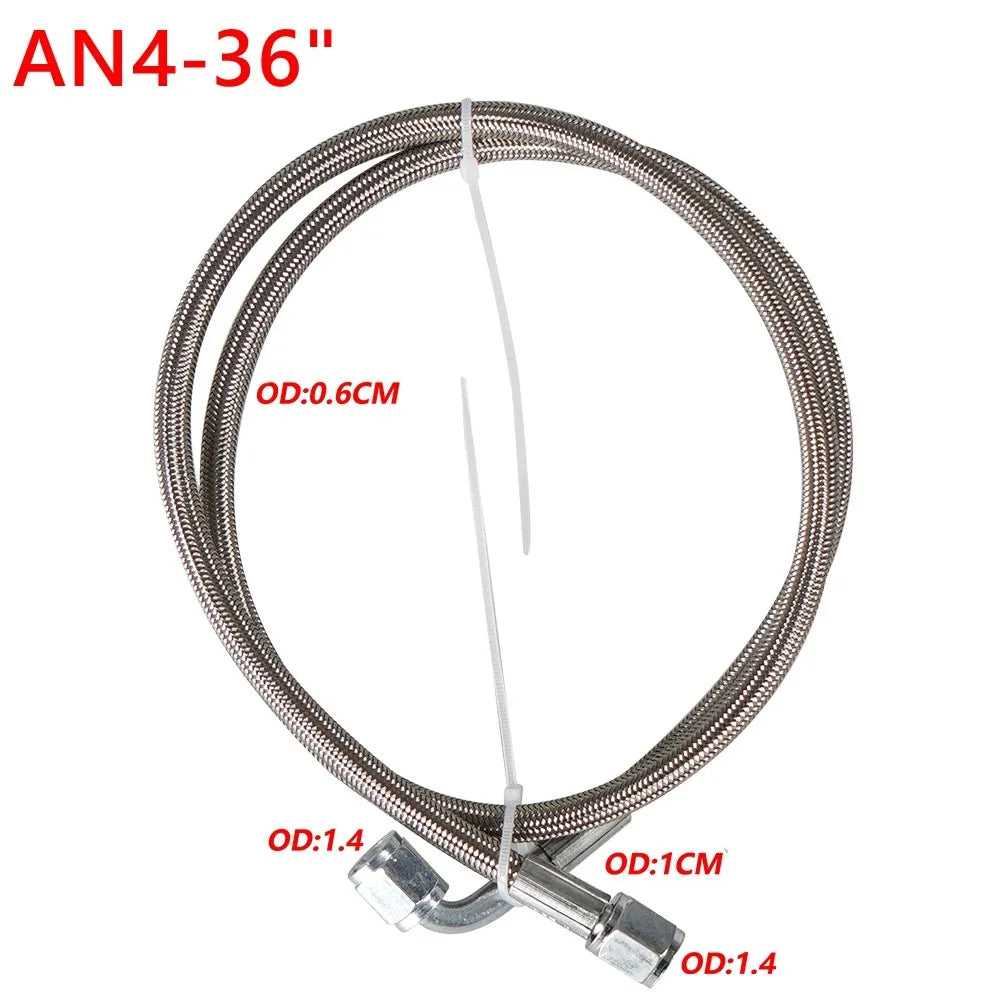

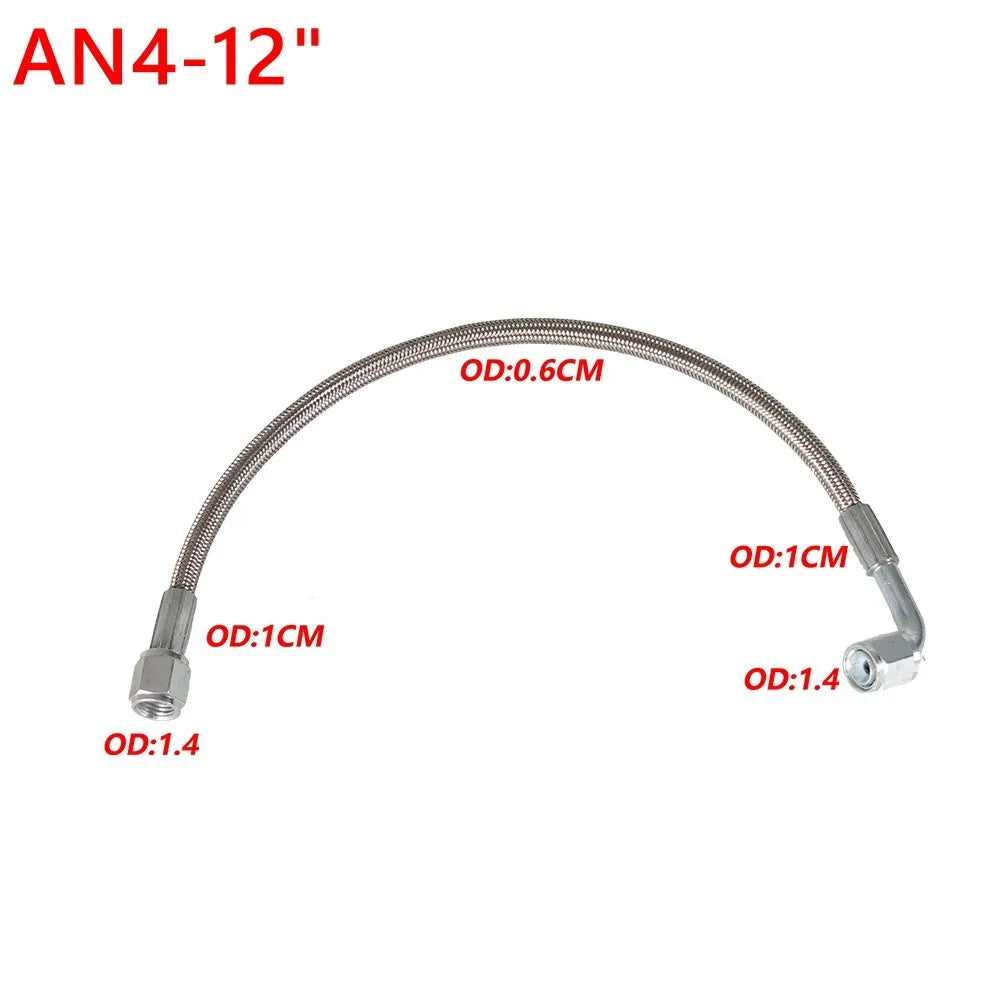

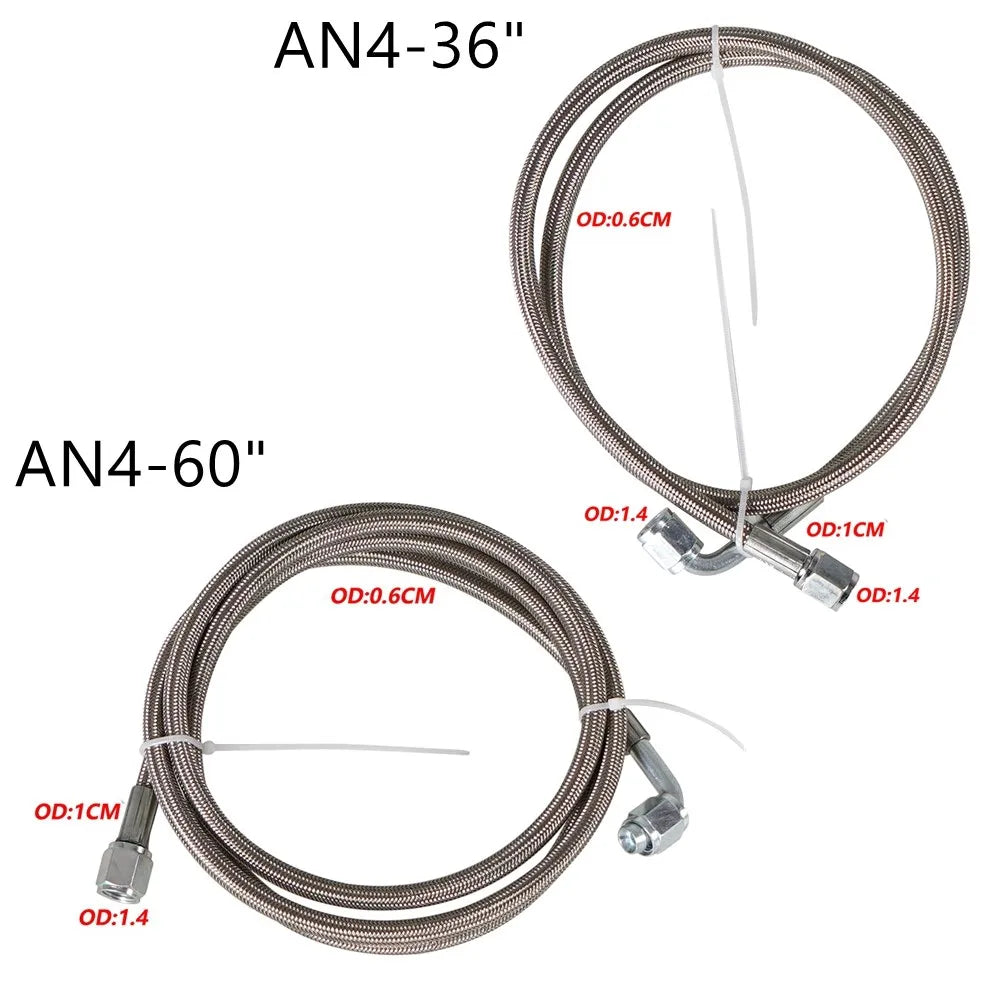

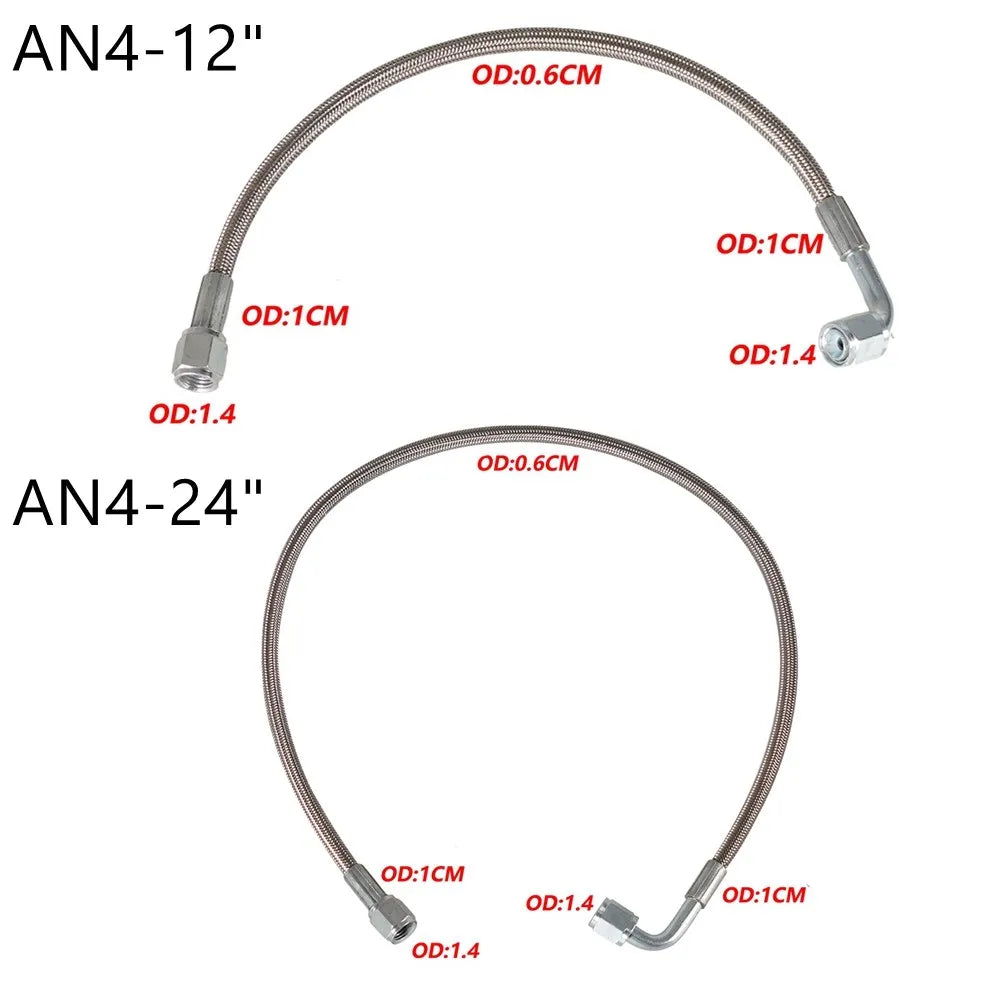

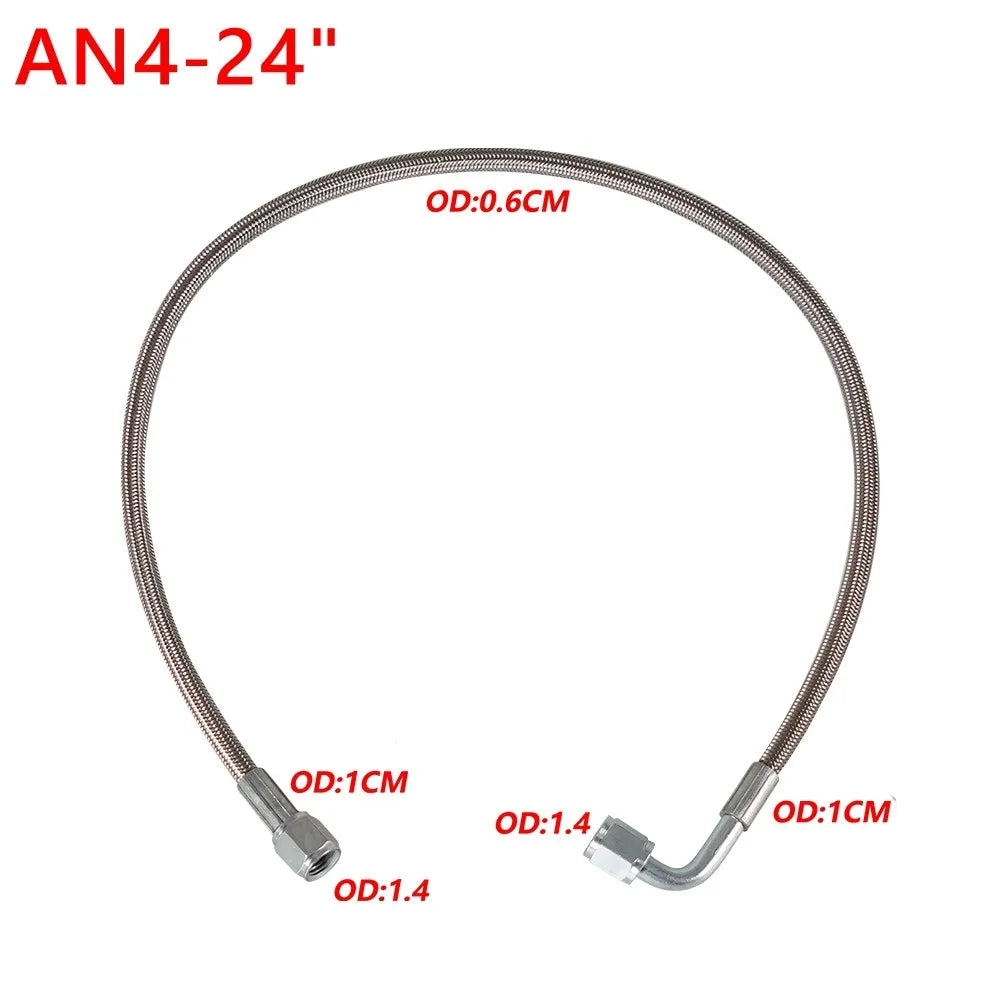

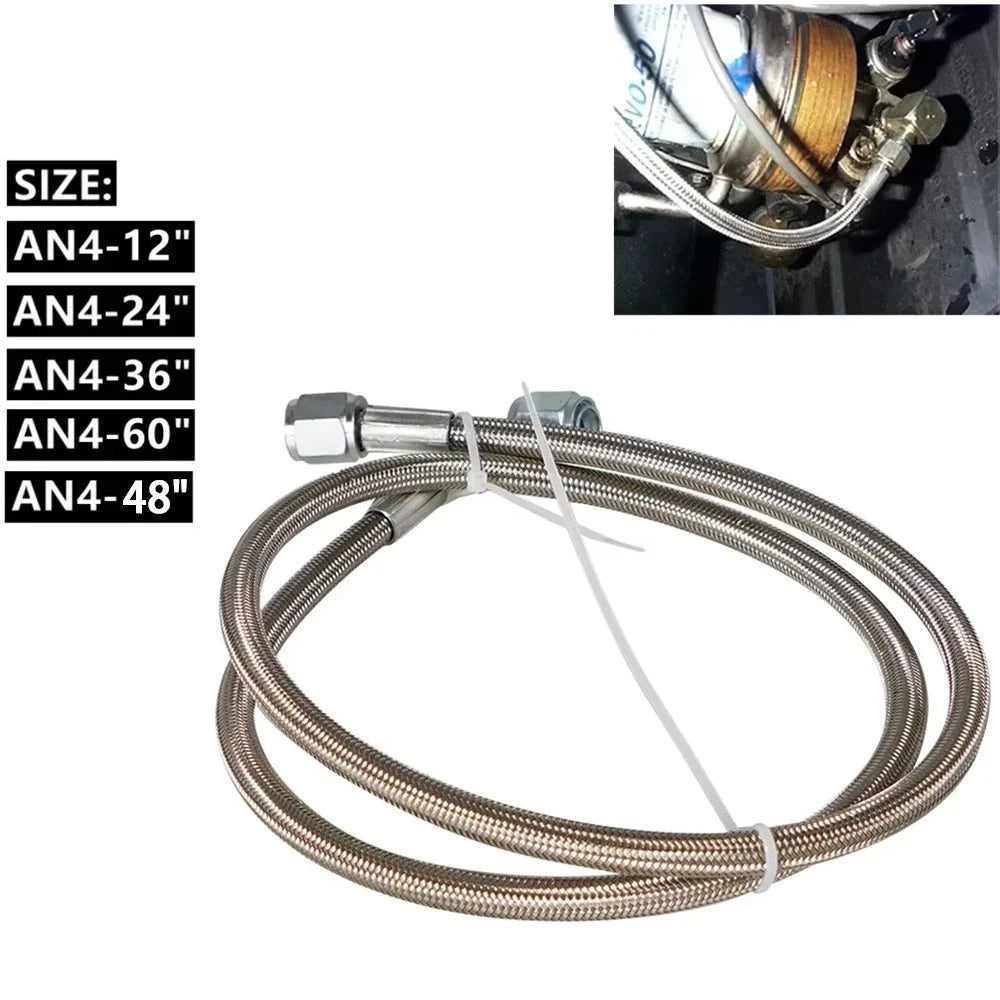

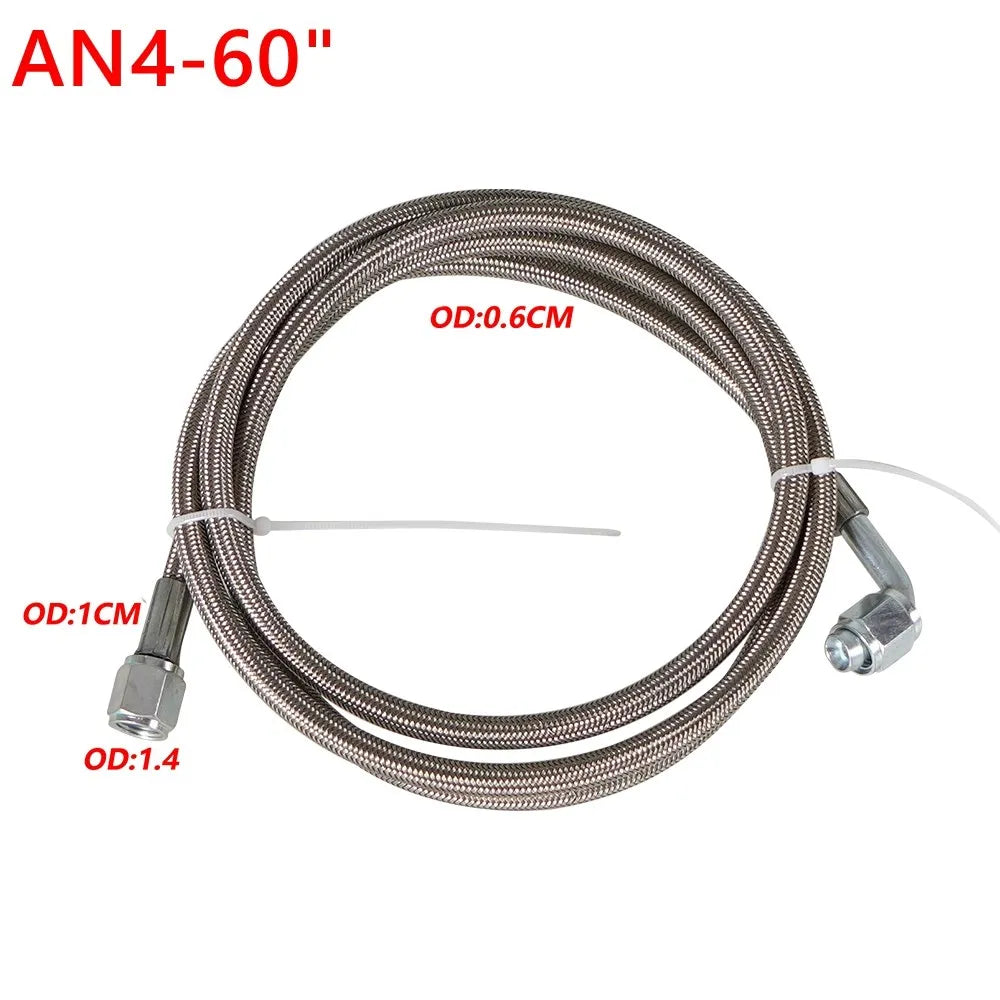

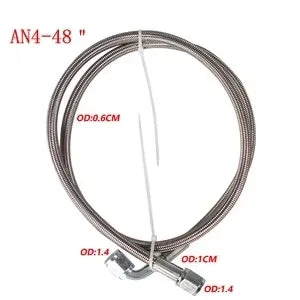

• Lengths: 12, 24, 36, 48, 60 inch (305 to 1525 mm)

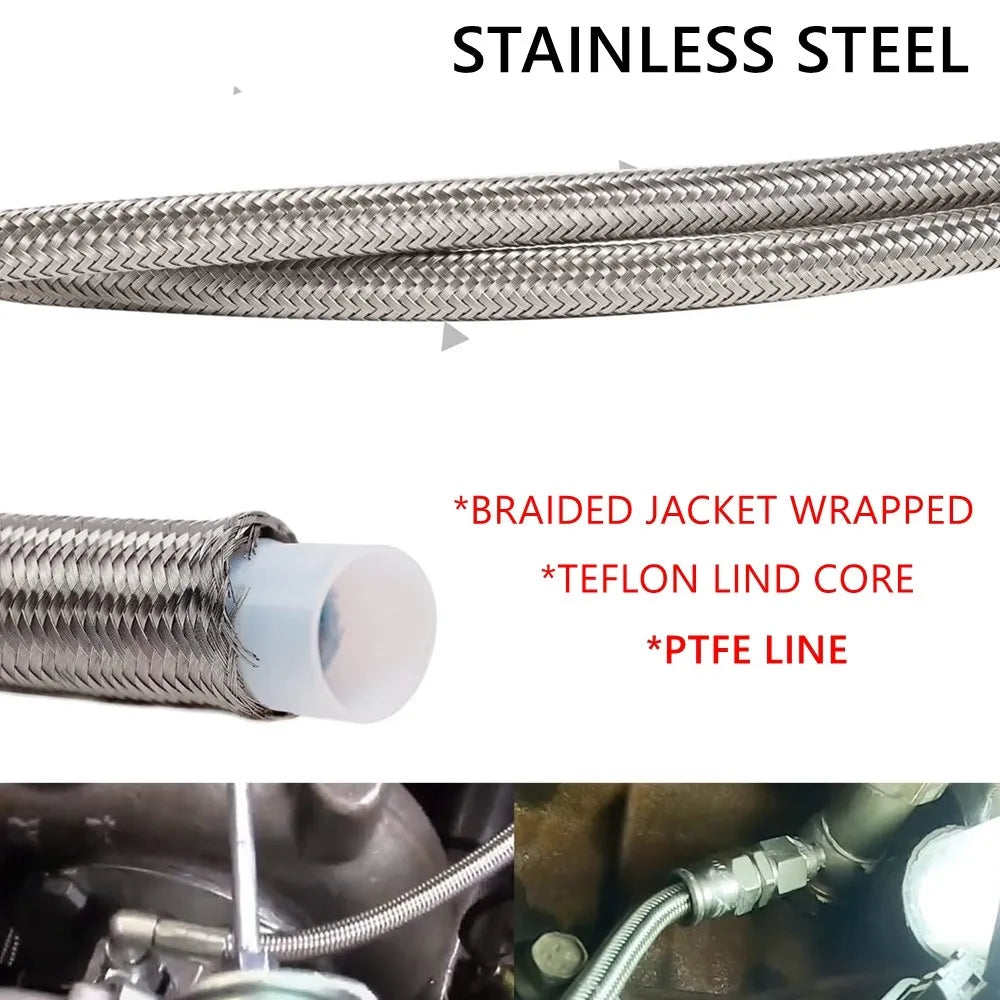

• PTFE inner, stainless steel braid

AN size chart

Frequently asked questions

What size is a turbo oil feed line?
Most turbos use an AN4 oil feed. Ball bearing turbos often need a restrictor in the feed, so check your turbo maker's spec.

How do I tell what size my AN fitting is?
Measure the outside of the male thread and match it to the size chart above. For example, 9/16" (about 14.3 mm) across the thread is AN6, and 3/4" (19 mm) is AN8.

Do AN fittings need thread tape or sealant?
No. The seal is made on the 37 degree flare, not the thread, so keep tape and sealant off the AN side. Only the NPT (tapered pipe) end of an adapter needs sealant.

Quality and warranty

• Made in China with quality braided hose and CNC-machined aluminium hose ends
• Anodised fittings with true 37 degree flares that seal properly
• 2-year repair or replacement warranty against defects in materials and workmanship, on top of your rights under Australian Consumer Law
• Sold and backed by Tucks Performance, an Australian-owned business. Not sure what you need? Send us a message

Delivery: ships direct from our supplier partner, usually 10 to 20 days.
